KBR multicomp F144-3 6DO/6RO
2 Control and display panel
multicomp F144-MS-1V1C1TI6DO6RO-3

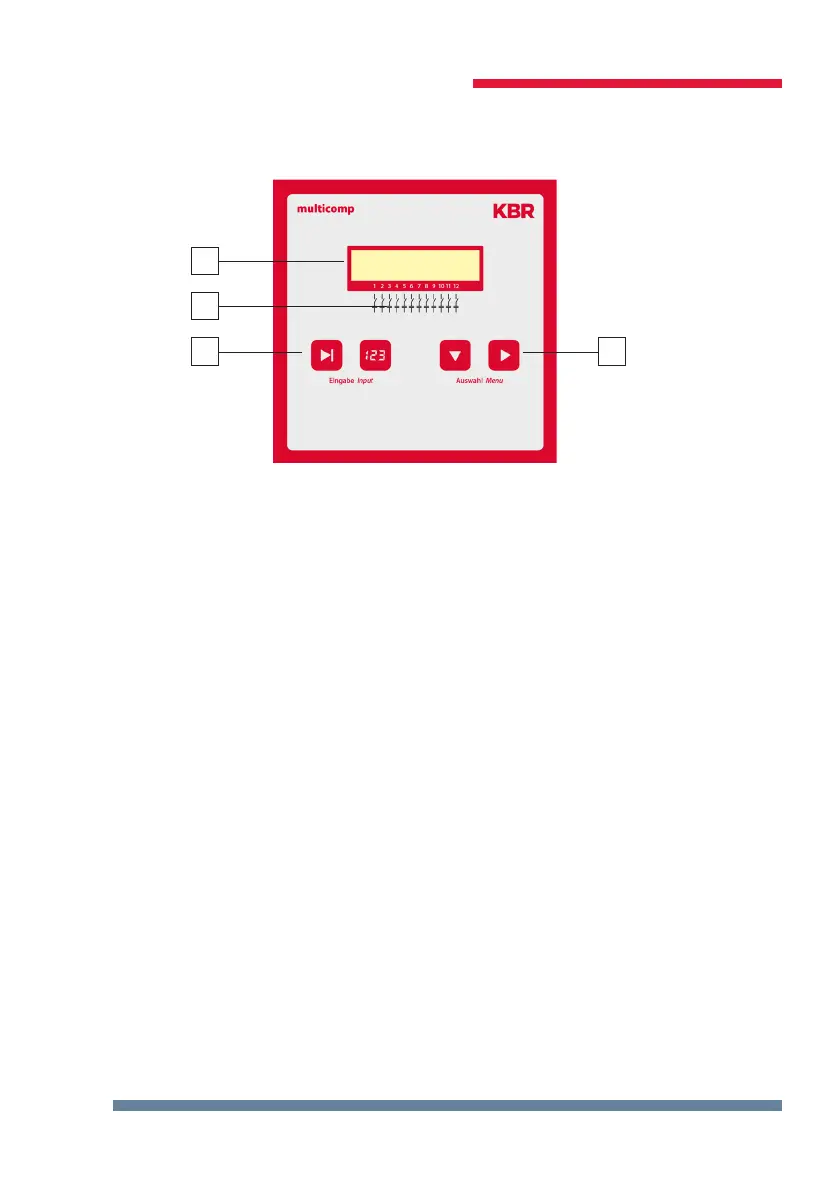

Operating elements:
1 LCD displaying the current status and user prompts
2 Number of possible controller output lines
3 Two sensor buttons for parameter conguration
4 Two sensor buttons for menu selection
1
2
3 4
General notes on operating the sensor buttons:
U button Start conguration and reset input
V button Change values during conguration
W button Navigate through submenus
X button Navigate through main menus and save button during con-
guration
Button combinations:
U and V Delete accumulated values and reset the system
Control and display panel
