Functional DescriptionEncoder Interface
6.10.4 Power Supply of
Encoder

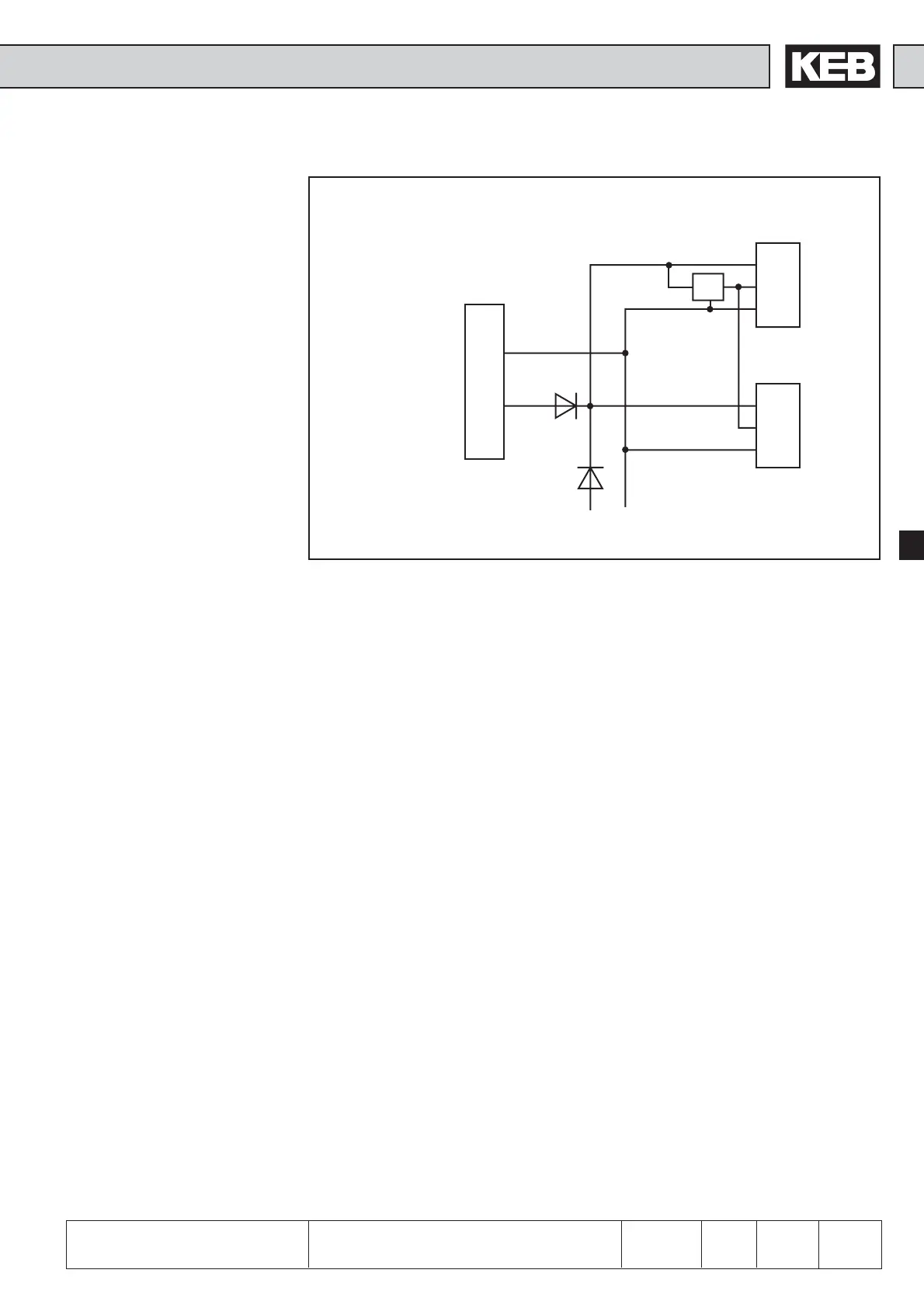

Fig. 6.10.4 Power supply
X2A
X3A
X3B
+24VDC
0V
5,2V
Uvar
+5,2V
0V
Uvar
+5,2V
0V
21
220V
+20...30VDC
U
var
+5,2 V
U
var
is an unstabilized voltage that is provided by the power stage of the KEB
COMBIVERT. Dependent on the size of unit and the load, the voltage amounted to
15... 30 V DC. Uvar is loadable at X3A and X3B with altogether 170 mA. If higher
voltages / currents to supply the encoders are needed then the control must be supplied
with an external voltage.
The +5 V voltage is a stabilized voltage and loadable at X3A and X3B with altogether
500 mA. Le +5 V provient de Uvar, le courant disponible pour Uvar décroit suivant la
formule suivante:
5,2 V x I
+5V
I
var
= 170 mA - –————
U
var
