KEB COMBIVERT F5-G / B
Name: Basis
07.01.02
4
OperationDrive-Mode
© KEB Antriebstechnik, 2002
All Rights reserved
Section PageDate Chapter

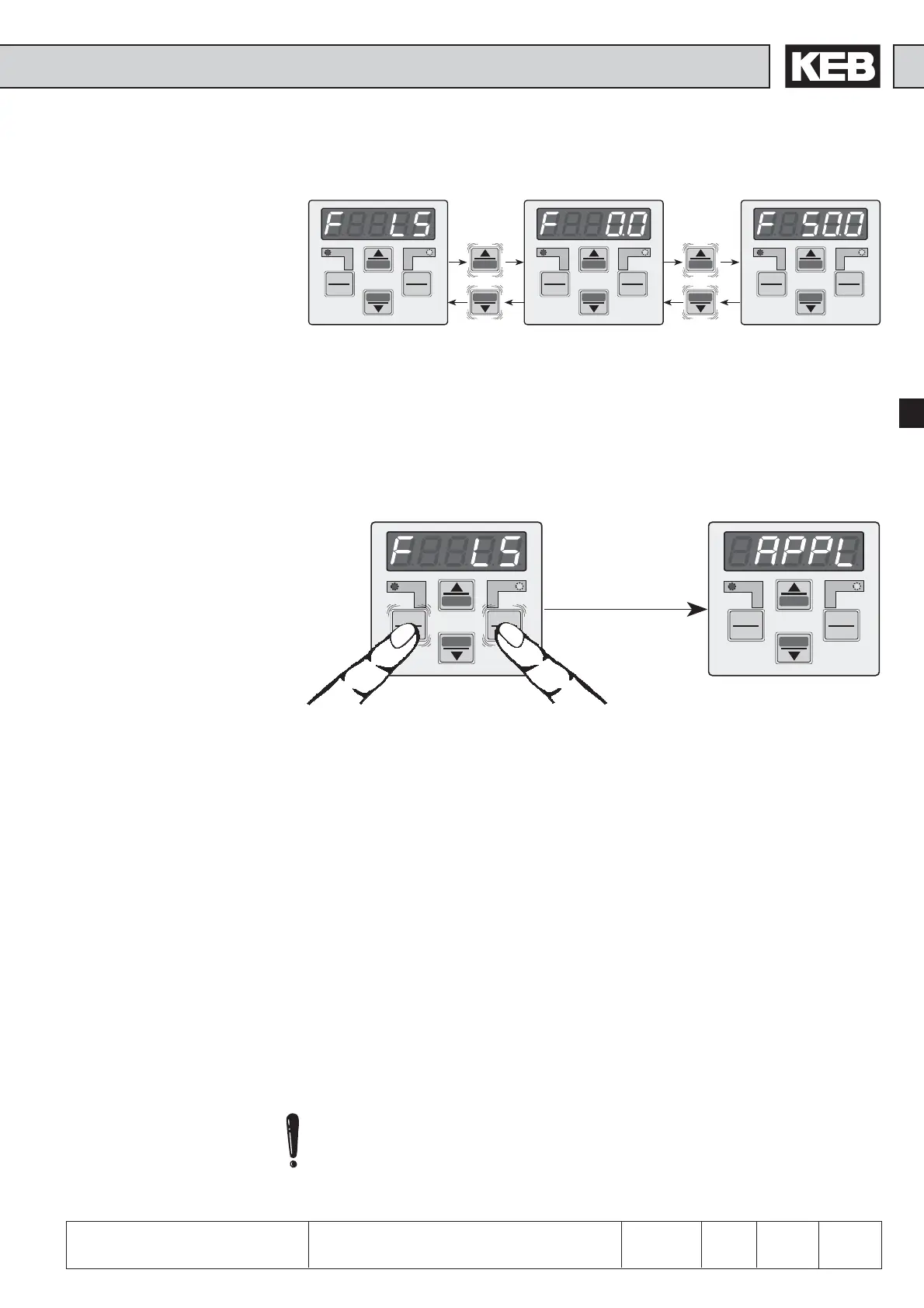

To leave the Drive-Mode, the keys „FUNC“ and „ENTER“ must be pressed
simultaneously for approx. 3 seconds while being in status „Stop“! The unit jumps
back into the mode from where the Drive-Mode was started.
START
FUNC.
SPEED
ENTER
F/R
STOP
START
STOP
FUNC.
SPEED
ENTER
F/R
START
STOP
START
STOP
FUNC.
SPEED
ENTER
F/R
START
STOP
Stop Run
ud. 9 Bit 2, 3 = 2
Start
4.4.6 Leaving the Drive-
Mode
FUNC.
SPEED
ENTER
F/R
START
FUNC.
SPEED
ENTER
F/R
STOP
START
STOP
approx. 3 sec.
Stop
Leaving
Drive-Mode
4.4.7 Further Settings
To avoid undefined conditions, it must be ensured that the minimum frequency (oP.6,
oP.7) is set to 0 Hz at the values ud.9 Bit 2, 3 = 1 or 2.
Bit 3 Bit 2 Bit 1 Bit 0 Function ud.9
x x x 0 Set value setting by keyboard
x x x 1 Set value setting by set value source oP.0
x x 0 x set value is 0-limited (negativ values = 0)
x x 1 x absolut set value settings
0 0 x x LS => run
0 1 x x 0 Hz => run
1 0 x x LS => 0 Hz => run
1 1 x x reserved
With the Drive-Mode operating mode (ud.9) the setpoint sources and the conditions at
starting/stopping can be specified. As setpoint source serves either the keyboard in
the Drive-Mode as described under 4.4.3 or the setpoint source selected under
parameter oP.0. Refer to 4.4.5 to learn about the different operating conditions at
starting / stopping.
The status at starting / stopping (Bit 2 and 3) are only accepted after a restart the
drive mode !
