Hardware Control Cards
3.1.9 Analog Outputs
3.1.10 Voltage Output

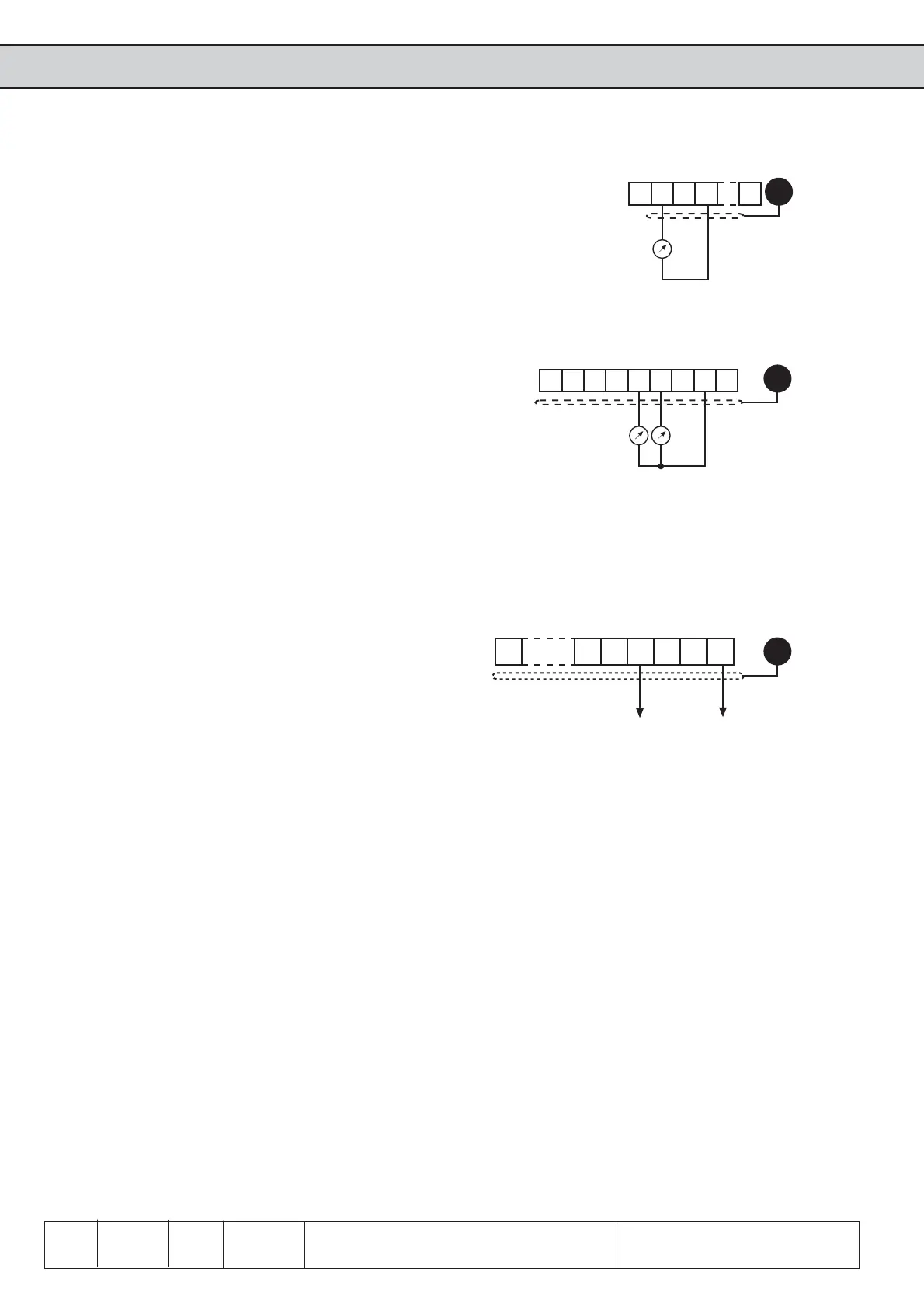

The voltage output serves for the setting of the digital inputs as well as for the supply
of external control elements. Do no exceed the maximum output current of 100 mA.
Control card GENERAL:
Control card BASIC:
X2A
123456789
PE
0...±10 VDC
5 mA
10 18 19 20
PE
X2A
21 22 23
+-
ca. 24VDC / max. 100 mA
122578
PE
-10...10 VDC
5 mA
X2A
approx
Control card GENERAL:
