KEB COMBIVERT F5-G / B
4
Name: Basis
07.01.02
Operation Drive-Mode
© KEB Antriebstechnik, 2002
All Rights reserved
Chapter Section Page Date
FUNC.
SPEED
START
FUNC.
SPEED
ENTER
F/R
STOP
START
STOP
ENTER
F/R
ENTER
F/R

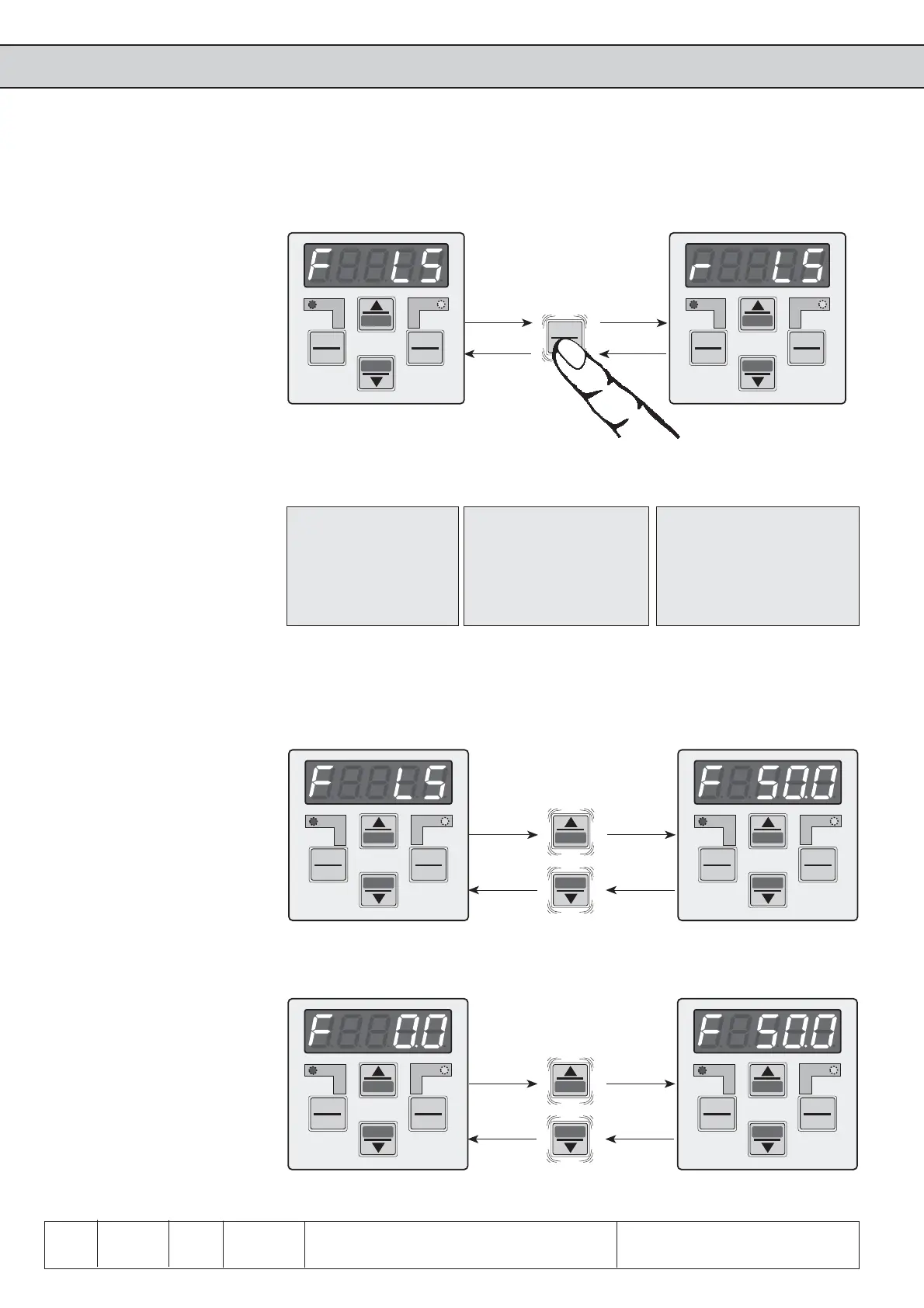

4.4.4 Rotation Setting
Setting possibilities: F = forward (clockwise rotation)
r = reverse (counter-clockwise rotation)
Each actuatin of the key
F/R causes a change in
rotational direction
4.4.5 Start / Stop / Run
Status „Run“
The drive runs with
preselected frequency
(e.g. „F 50.0“)
Status „Stop“
Power module
disconnected, drive
is freewheeling
(e.g. „F LS“)
FUNC.
SPEED
ENTER
F/R
START
FUNC.
SPEED
ENTER
F/R
STOP
START
STOP
START
STOP
3 operating states exist in the Drive-Mode:
Status „Start“
Power module is controlled
with 0 Hz, drive stands
with holding torque
(e.g. „F 0.0“)
Bit 2 and 3 of the parameter ud.9 determines in what way the keys START and STOP
approach the individual operating states:
Stop
Run
ud. 9 Bit 2, 3 = 0
(default)
FUNC.
SPEED
ENTER
F/R
START
FUNC.
SPEED
ENTER
F/R
STOP
START
STOP
START
STOP
Start
Run
ud. 9 Bit 2, 3 = 1
