6 3
KEB COMBIVERT F5
12
Name: Basis
16.04.02
Chapter Section Page Date
© KEB Antriebstechnik, 2002
All rights reserved
Functional Description Digital In- and Outputs
For the switching of the digital outputs one can choose up to 8 conditions from the 69
different conditions. These are entered in do.0...do.7. Switching condition 0 and 1 can
be filtered by do.43 and do44. Parameter ru.23 shows, if one or several of these
conditions are met. For each chanel it can now be selected which of the 8 conditions
shall apply to it (do.16...do.23). Each condition can still be inverted before selection
(do.8...do.15). As a standard all conditions (if several are selected) are OR-operated,
i.e. if one of the selected conditions is fulfilled, the chanel is set. With do.24 this can
be changed to AND-operation, i.e. all conditions selected for this chanel must be
fulfilled before it is set. Parameter ru.24 shows the chanels which are set in this stage.
do.33...40 form a second logic step with which a selection of the chanels from logic
step 1 can be made. Every individual condition can be inverted with do..25...32. do.41
adjusts the manner of the linkage (AND/OR). Parameter do.42 is used for inverting
one or several outputs. ru.25 is used to indicate the outputs switched real or through
inversion. The internal outputs OA...OD are directly connected with the internal inputs
IA...ID.
6.3.13 Output Signals

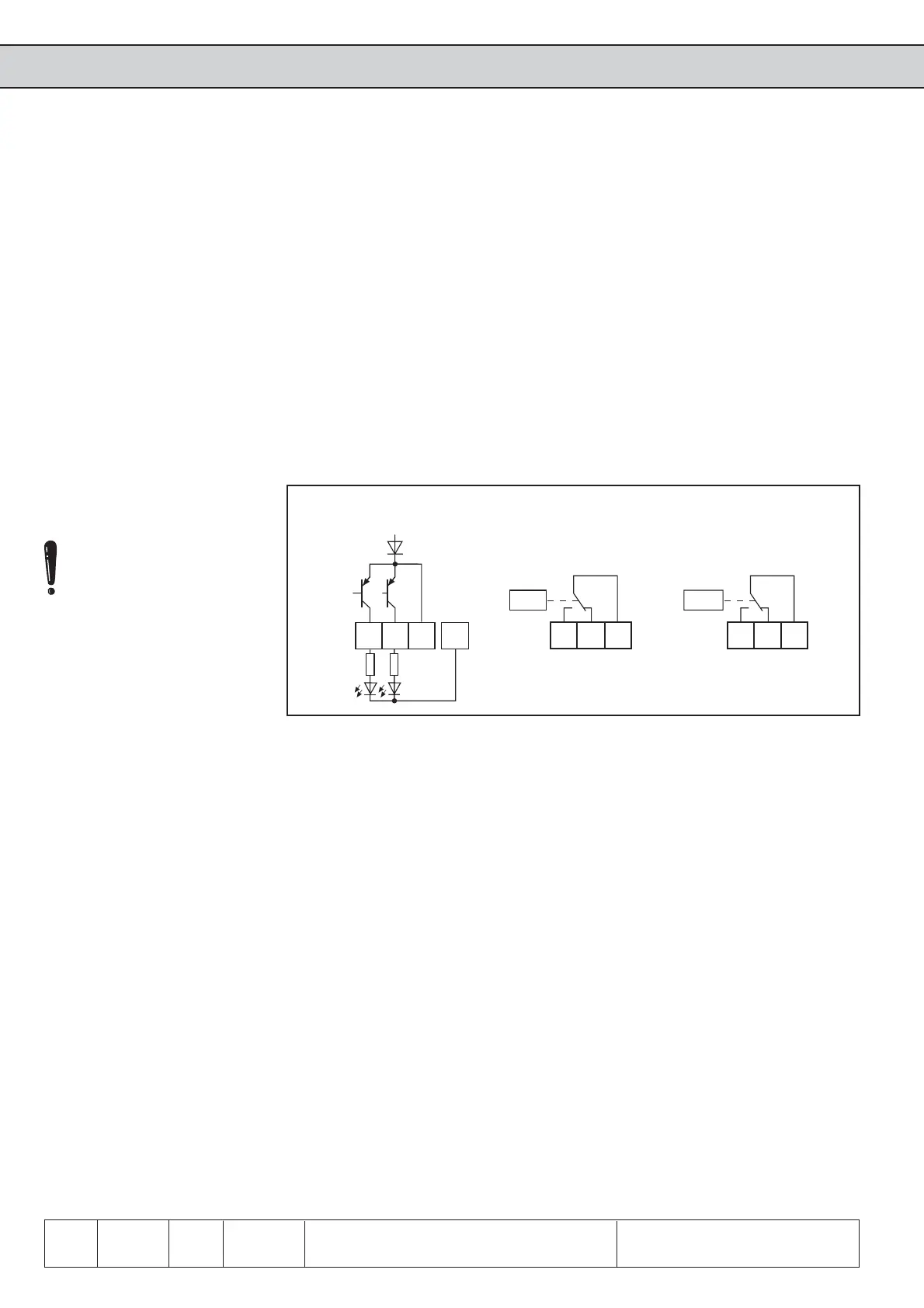

Fig. 6.3.12 Connection of digital outputs
The total current of
X2A.18...20 is limited to
50mA. In case of inductive load
at the relay outputs or at the
transistor output a protective
wiring is to be provided (free-
wheeling diode)!
24 25 26
RLA
RLB
RLC
X2A
max. 30V / 1A DC
R1
19
2320
O2
0V
Uout
X2A
+24V / 50mA
R2
27
28
29
FLA
FLB
FLC
max. 30V / 1A DC
18
O1
X2A
6.3.14 Output filter
(do.43, do.44)
With do.43 a filter can be set for switching condition 0, with do.44 for switching condition
1. The change of a switching condition must be applied for the filter time, then it
becomes active at the output of the filter. If the change of a switching condition is
cancelled during the filter time, the filter time is reset and restarted at the next change.
The filter time is adjustable within the range of 0 (off)...1000 ms.
