KEB COMBIVERT F5 BASIC User Manual

3
4
43
KEB COMBIVERT F5-G / B
Name: Basis
07.01.02
4
OperationDrive-Mode
© KEB Antriebstechnik, 2002
All Rights reserved
Section PageDate Chapter
START
FUNC.
SPEED
ENTER
F/R
STOP
START
FUNC.
SPEED
ENTER
F/R
STOP
START
FUNC.
SPEED
ENTER
F/R
STOP
START
FUNC.
SPEED
ENTER
F/R
STOP
The Drive-Mode is a special operating mode of the KEB COMBIVERT. It allows an
easy manual start-up. To activate the Drive-Mode enter the password „500“ in
‘CP.0’ or ‘ud.1’. Following settings are possible:
– Stop / Start / Run
– Setpoint value
– Direction of rotation
All other settings like setpoint limitation, acceleration time, deceleration time etc.
correspond to the preselection in the parameter sets.
Hardware condition: The control release must be bridged!

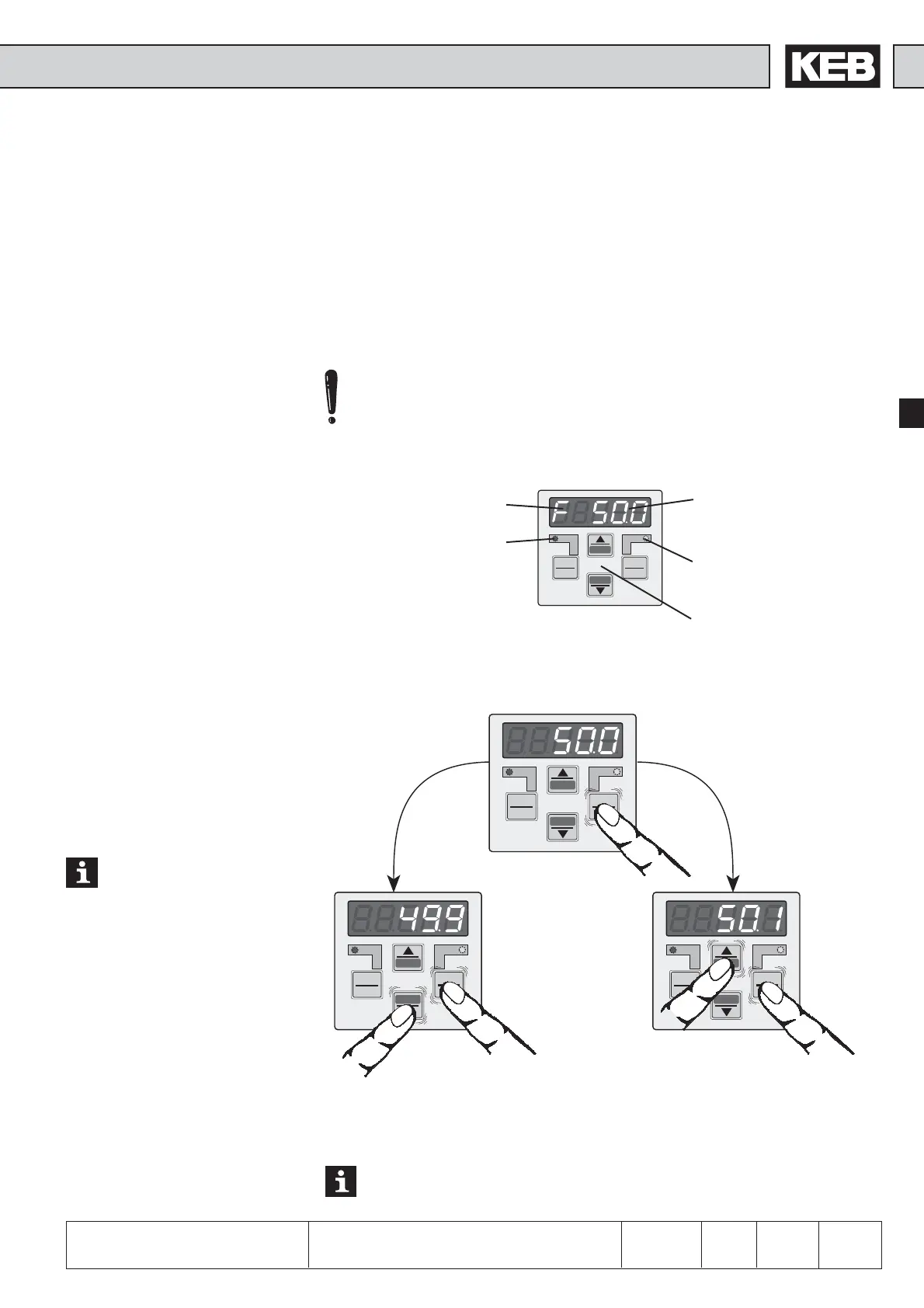

4.4 Drive-Mode
4.4.3 Setpoint Display /
Setpoint Input
Rotation display
Interface check
Transmission "LED on"
Display operating status /
actual speed / setpoint
speed
Status-/ Error display
Normal "LED on"
Error "LED blinking"
Operator panel
4.4.1 Adjustment
Possibilities
Press the SPEED-key and
reduce the displayed setpoint
value with the DOWN-key.
Press the SPEED-key and
increase the displayed setpoint
value with the UP-key.
The adjusted setpoint value is
displayed for as long as the
SPEED-key is pressed.
4.4.2 Display and
Keyboard
The setpoint entry via keyboard is possible only for parameter ud.9 = 0 (see
4.4.7).
reduce
set value
increase
set value
The actual set value could be
read by bus at Sy.45.
