KEB COMBIVERT F5 BASIC User Manual

6 3
KEB COMBIVERT F5
18
Name: Basis
16.04.02
Chapter Section Page Date
© KEB Antriebstechnik, 2002
All rights reserved
Functional Description Digital In- and Outputs
6.3.22 Inversion of Out-
puts (do.42)
As shown in Fig. 6.3.21, with parameter do.42 the outputs can be once again inverted
after the linking. The parameter is bit-coded, i.e. according to following table the value
belonging to this output must be entered. If several outputs shall be inverted the sum
is to be formed
6.3.23 Output Terminal
Status (ru.25)
The output terminal status shows the logical status of the digital outputs. It is unimportant
whether the output is set on the basis of conditions or by inversion. If an output is set,
the appropriate decimal value, according to the table below, is output. If several outputs
are set, then the sum of the decimal values is output.
1
1
1
1
do.42
Bit 0
Bit 1
Bit 2
Bit 3
Bit 4
Bit 5
Bit 6
Bit 7
1
2
4
8
16
32
64
128
1
1
1
1
do.41
Terminal Name Function
X2A.18 O1 Transistor output
X2A.19 O2 Transistor output
X2A.24...26 R1 Relay output
X2A.27...29 R2 Relay output
- OA Internal output
- OB Internal output
- OC Internal output
- OD Internal output

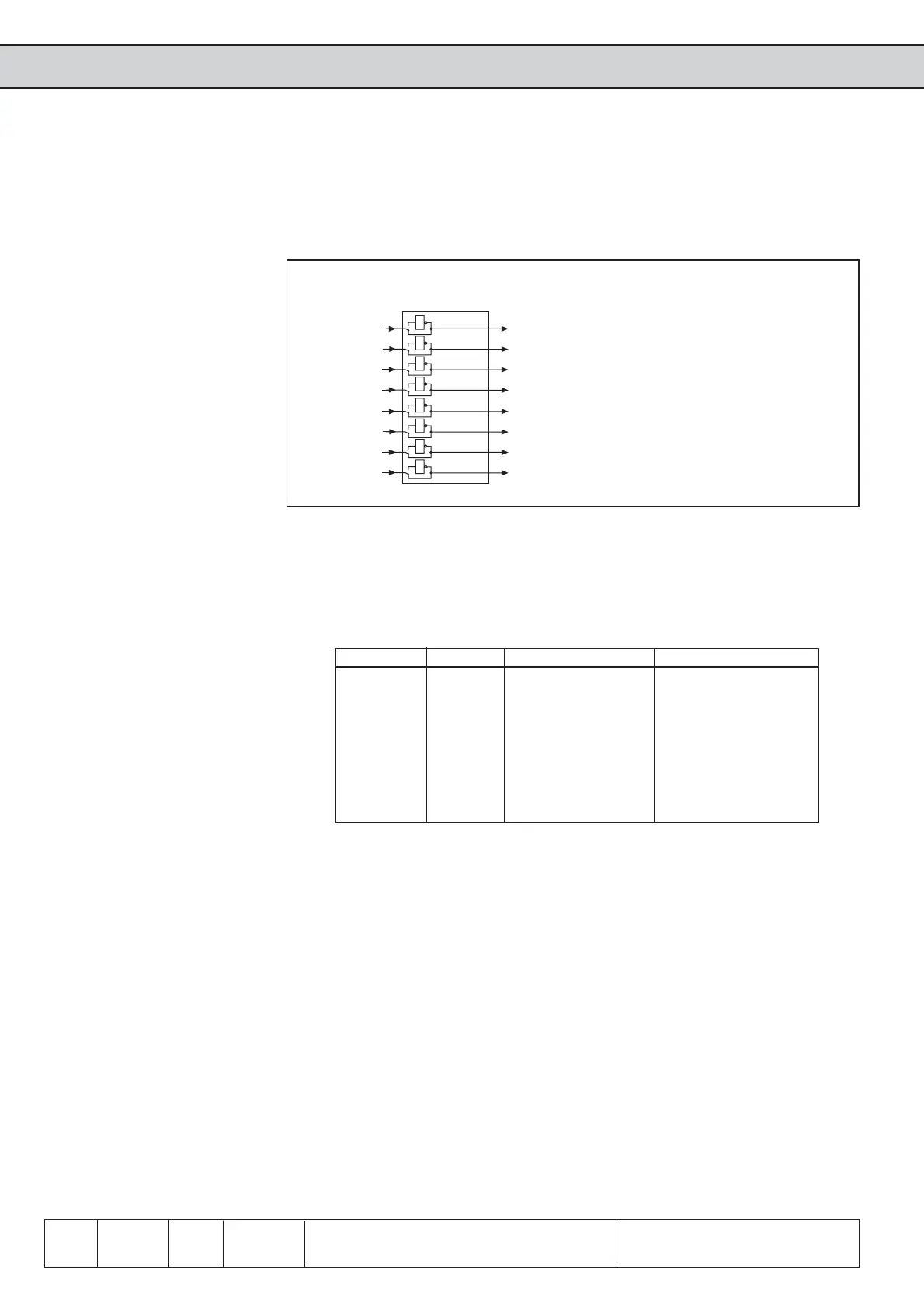

Fig. 6.3.21 Inverting the outputs
Terminal Name Function Decimal values ru.25
X2A.18 O1 Transistor output 1
X2A.19 O2 Transistor output 2
X2A.24...26 R1 Relay output 4
X2A.27...29 R2 Relay output 8
- OA Internal output 16
- OB Internal output 32
- OC Internal output 64
- OD Internal output 128
