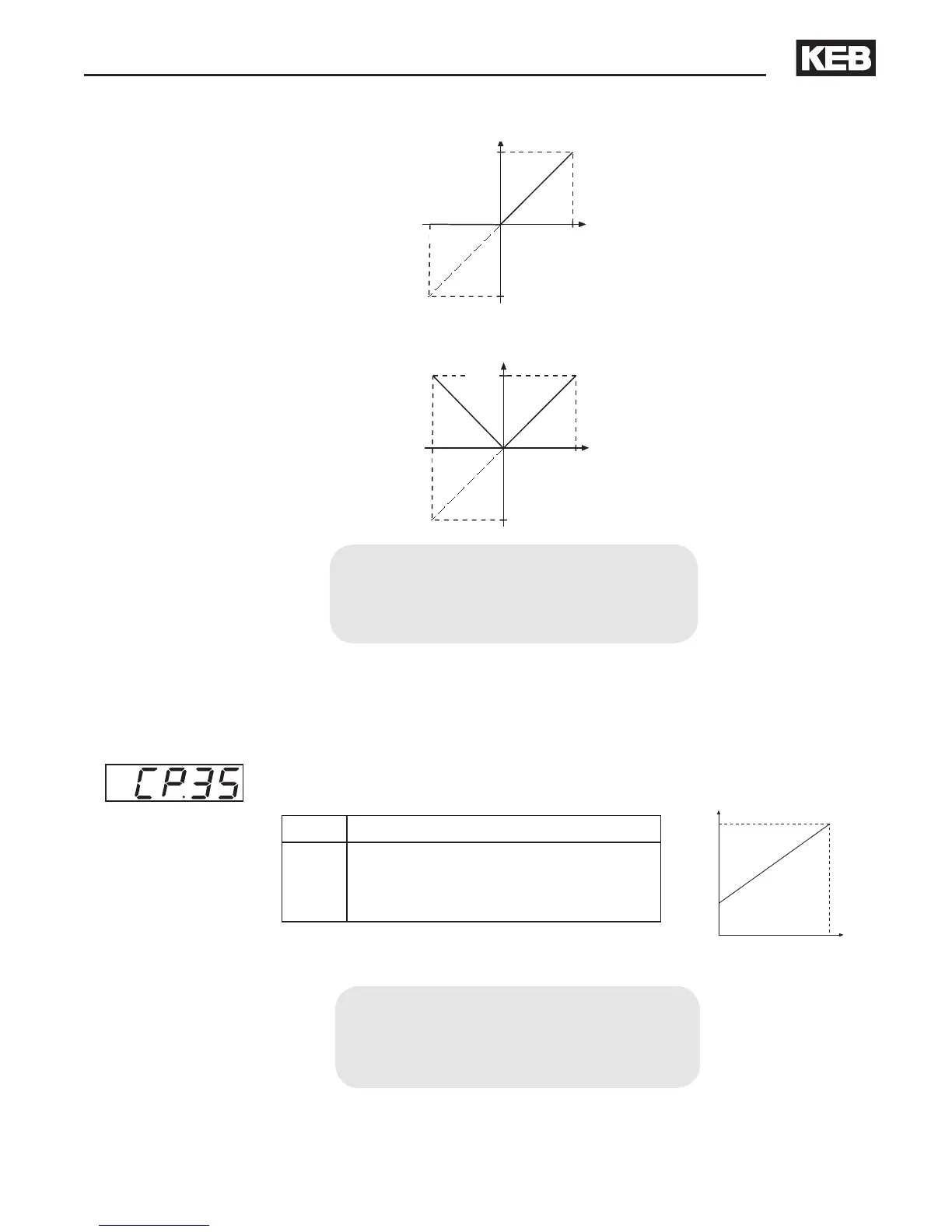

KEB COMBIVERT F5 Series Installation Guide & Operation Manual

35
Set value
0-limited
(Value 2 and 4)
Set value
absolute
(Value 3 and 5)
Adjustment range: 0...9
Resolution: 1
Factory setting: 2
Note: Enter-Parameter
10V
100%
-100%
100%
-100%
extern
-10V
intern
internal
external
10V
100%
-100%
100%
-100%
extern
-10V
intern
internal
external
AN1 Interface
selection










The analog input 1 (AN1) can accept different types of signals. In order to
correctly evaluate the signal, this parameter must be adjusted to match the
signal source.
Value Analog reference signal
0 0...±10 V DC, Rin=56 kOhm
1 0...± 20 mA DC, Rin=250 Ohm
2 4...20 mA DC, Rin=250 Ohm
Adjustment range: 0...2
Resolution: 1
Factory setting: 0
Note: Enter-Parameter
Special Adjustments
