KEB COMBIVERT F5 Instructions For Use

3.5.3 Dimensions liquid cooler through-mount version
230
340
274
277
885
46
43
920
887
307
77,5125125
125
125125125
77,5
125
325
905
M8
22x
40
b
A
Housing P
A Distance between liquid connections
B Accessories for hose connecting piece (=> Connections to the coolant)
Weight 95 kg
Dimensions All dimensions in mm
Optional Seal for IP54 can be mounted on top or bottom side (=> Connections to the coolant)

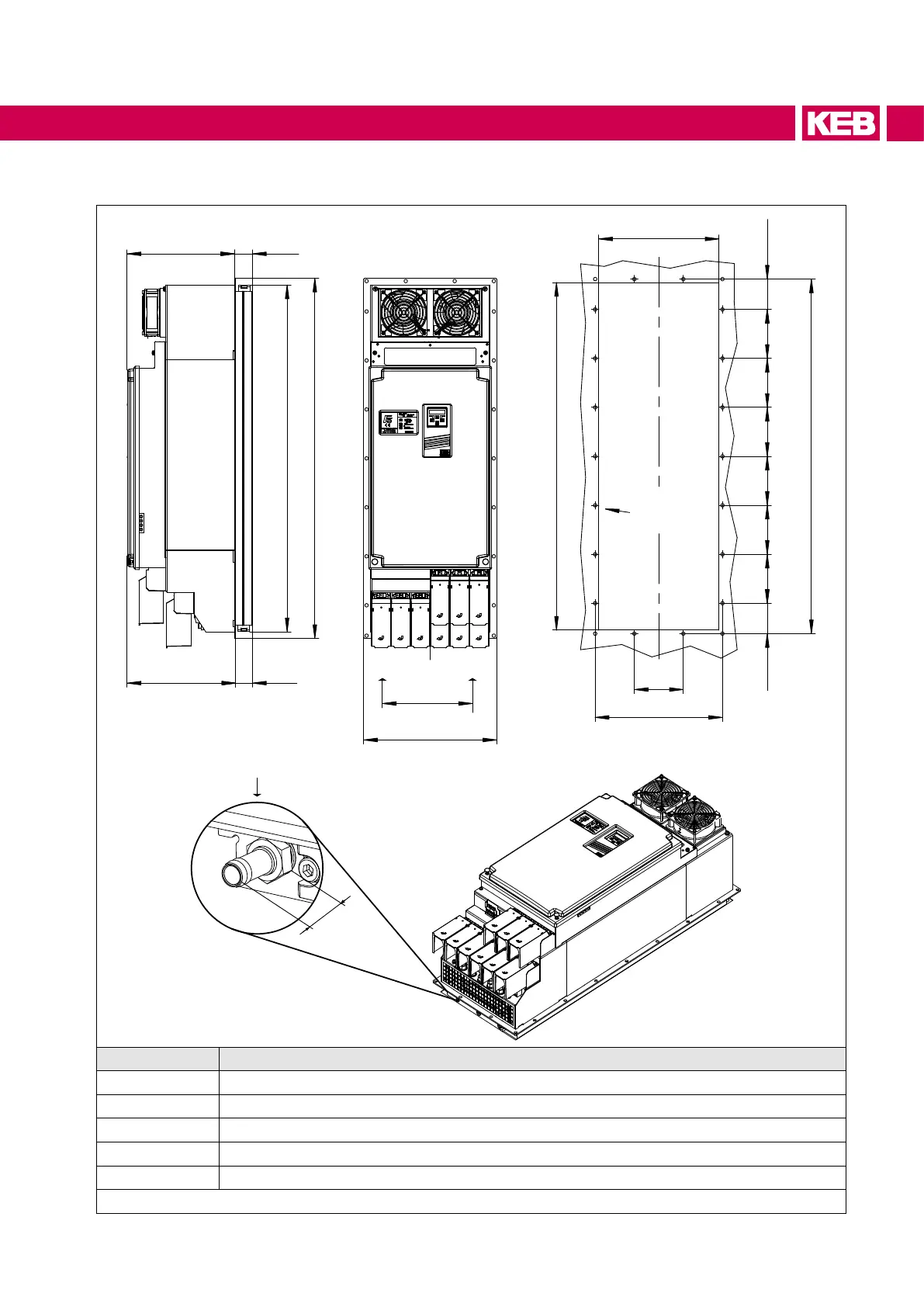

Figure 4: Dimensions liquid cooler push-through version
