4.1.3 Assembly aids
Two assembly aids are available as an accessory. They are attached at the drive
converter and by way this enables the transport by lifting devices.
Depending on the heat sink models, a mounting bracket or two eye bolts are available
as assembly aids.
Heat sink Liquid cooler Air cooler
Mounting bracket
Eye bolts
The mounting bracket is directly mounted at the frame, the eye bolts are screwed into
the rear wall on the face side.
Alternatively, in the air-cooled version, the eye bolts can also be screwed into the heat
sink on the face side.
=> Assembly aids

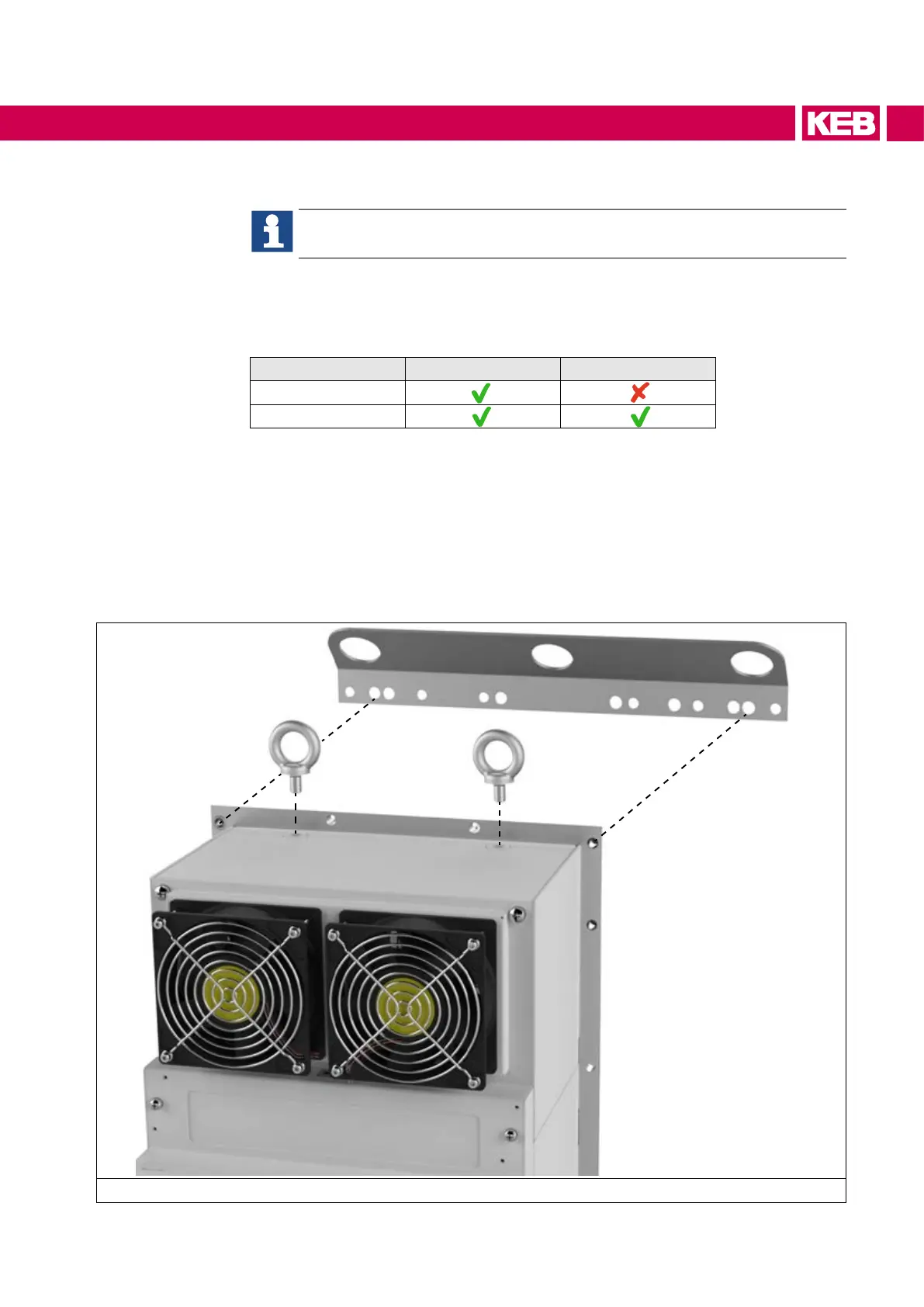

Figure 8: Assembly aids
47
MECHANICAL INSTALLATION
