Instrument and control functions
3
Seat

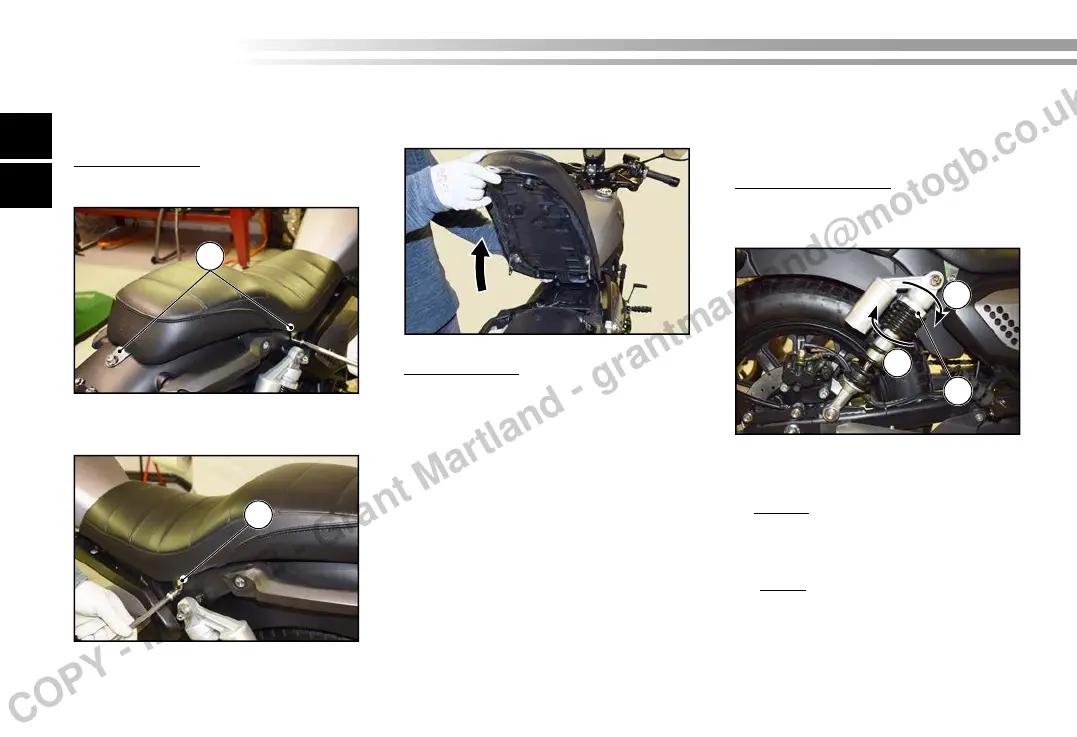

To remove the seat
1. Unscrew the two screws (A).
A
2. Loosen the screw on the seat side (B).
B
3. Lift the rear of the seat and pull it back.
To install the seat
1. Proceed in reverse order.
Adjustment of shock absorber as-
semblies
Mechanical adjustment
The shock absorber is tted with an adjust-
ing ring nut for the pre-load of spring (A).
A
C
B
A. Adjusting ring nut
Adjust the spring pre-load as follows:
To increase the spring preload and thereby
harden the suspension, turn the adjusting
ring nut (A) on each shock absorber assem-
bly clockwise (B).
To reduce the spring pre-loading, thus
making the suspension softer, turn the
adjustment ring nut (A) on each shock ab-
sorber assembly counter-clockwise (C).
