Periodic maintenance and adjustment
Replacing the fuses

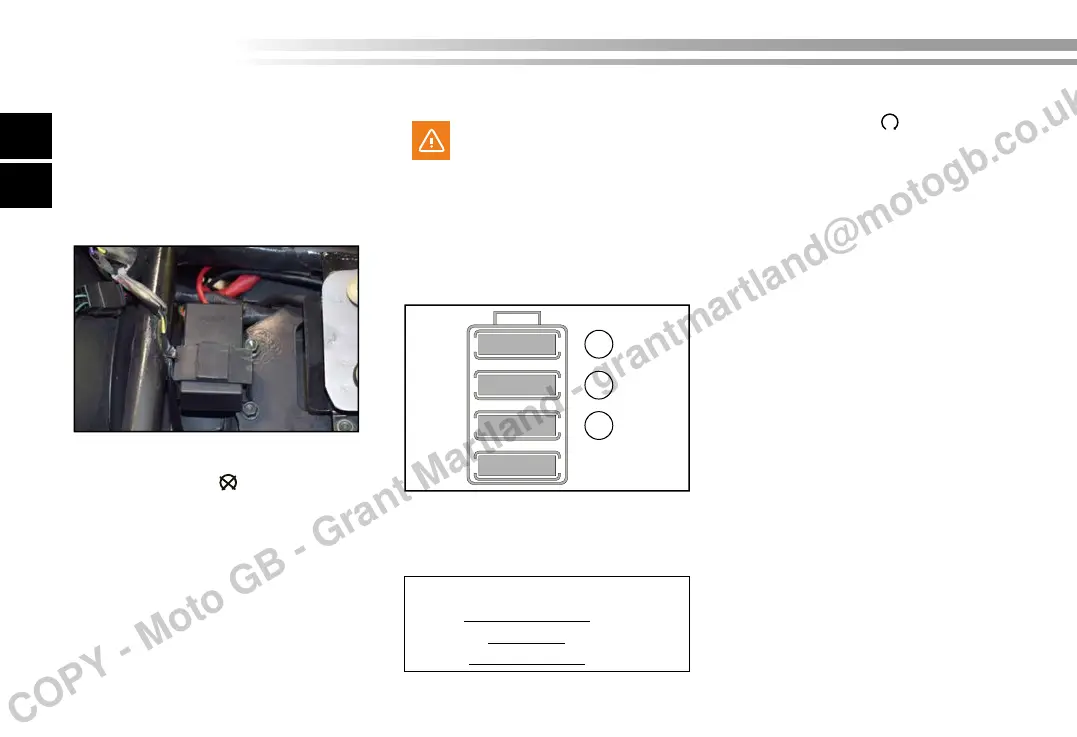

The fuse boxes and individual fuses are lo-
cated under the seat.
To access fuse box, the main fuse, and the
fuel injection system fuse, remove the seat
(see page 3-12).
If a fuse is blown, replace it as follows.
1. Turn the key to “
” and turn o the
electrical circuit in question.
2. Remove the blown fuse, and then in-
stall a new fuse of the specied am-
perage.
WARNING
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
re.
20A
10A
10A
B
A
C
A. Main fuse
B. ECU system fuse
C. Main relay fuse
Specied fuses:
ECU system fuse: 10 A
Main fuse: 20 A
Main relay fuse: 10 A
3. Turn the key to “ ” and turn on the
electrical circuit in question to check if
the device operates.
4. If the fuse immediately blows again,
have a Keeway dealer check the elec-
trical system.
