Periodic maintenance and adjustment
Replacing the headlight and posi-
tion indicator light
Replacement of headlight

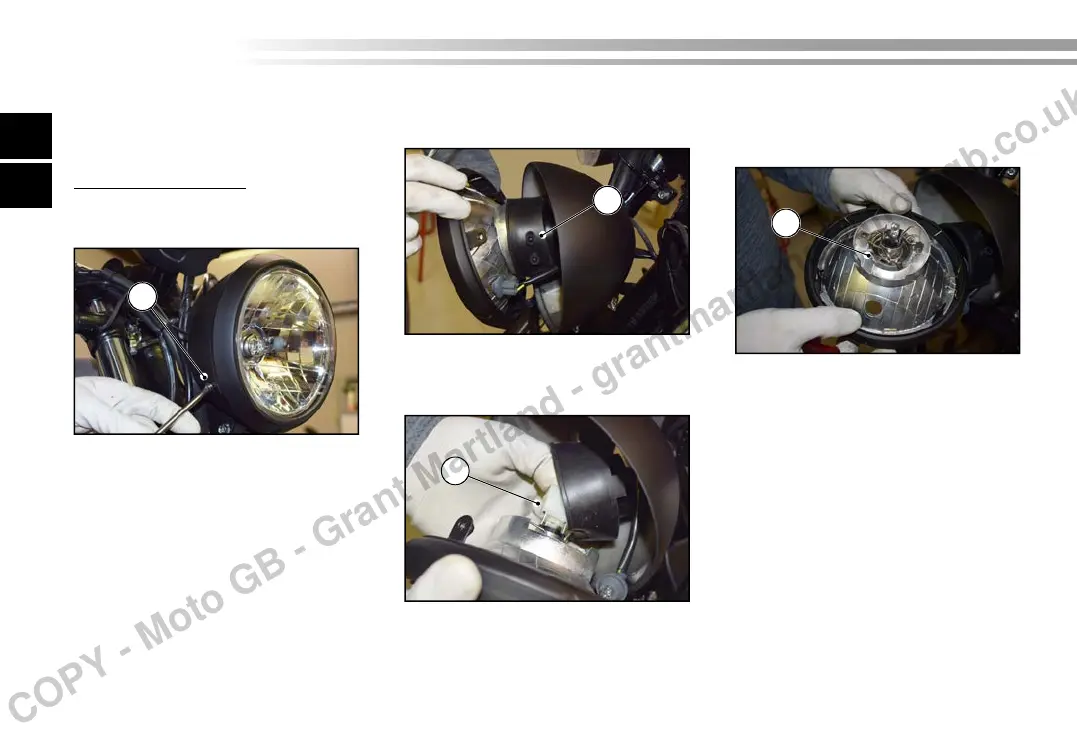

1. Open the headlight group by remov-
ing the xing screws (A).
A
A. Fixing screws of the headlight group
2. Remove the lamp cover cap (B).
B
B. Lamp cover cap
3. Disconnect the connector (C).
C
C. Headlight connector
4. Disconnect the headlight holder (D)
and then remove the burnt bulb.
D
D. Headlight holder
5. Position a new headlight bulb and
then x it with the holder.
6. Connect the headlight connector, in-
stall the cover cap and reinstall the
light group with the screws.
