4-14 Software and Drivers Model 2701 Instrument Networking Instruction Manual

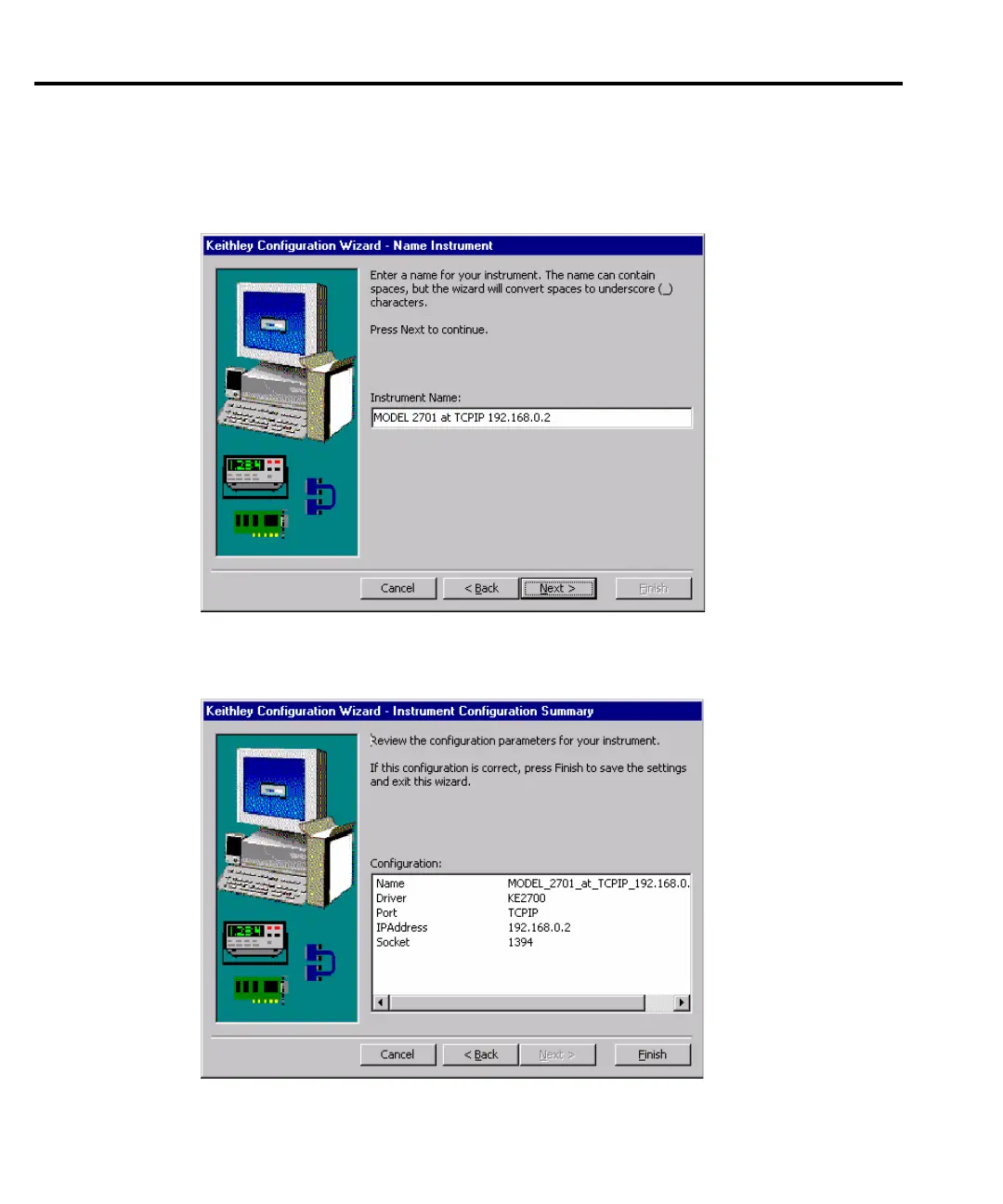

Figure 4-9
Assign instrument name window
NOTE Change the name to anything that will help you identify your instrument.
Figure 4-10
Summary window

Keithley 2701 Specifications

General

Max Voltage	300 V
Max Current	3 A
Frequency Range	3 Hz to 500 kHz
Frequency Accuracy	0.01%
Weight	3.6 kg
Measurement Functions	Frequency, Temperature
Interface	IEEE-488 (GPIB), RS-232
DC Voltage Range	300 V
DC Current Range	3 A
AC Voltage Range	300V
AC Current Range	1 μA to 3 A
Resistance Accuracy	0.01%
Channels	10
Dimensions	213mm x 88mm x 370mm
