Keithley 2701 Instruction Manual

A-2 Cable diagrams Model 2701 Instrument Networking Instruction Manual
Ethernet cables
For 10BaseT and 100BaseTX Ethernet connections, use standard category five (CAT 5)
twisted pair patch cables with RJ-45 connectors, not to exceed the standard maximum segment
length of 100 meters. The equipment that the device is being attached to will determine
whether a straight-thru or cross over cable configuration is required.
Straight through cables
Standard Ethernet straight through cables are required when connecting the device to a stan-
dard network hub or switch.
NOTE Straight through cables are also referred to as patch cables.

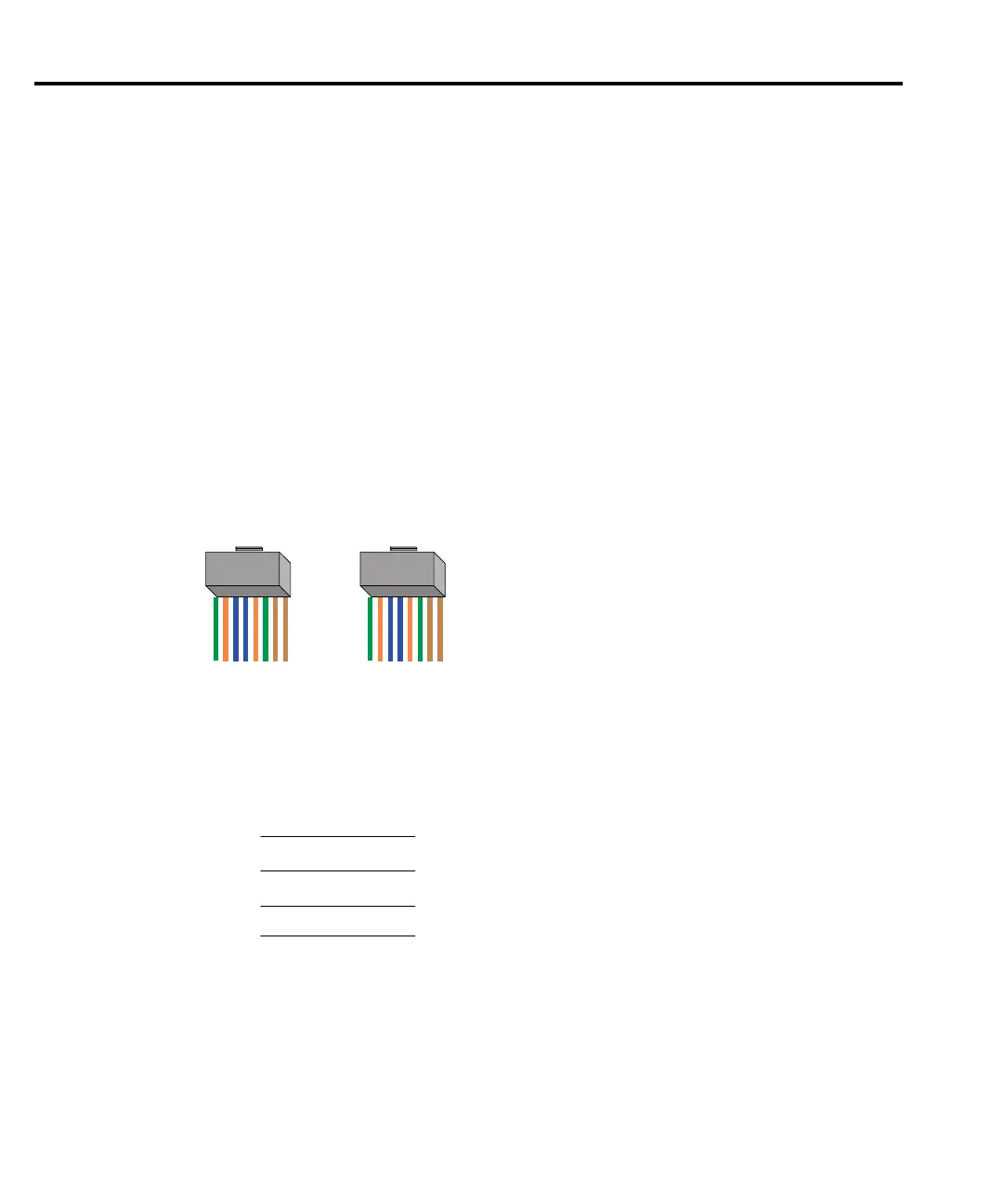

Figure A-1
Straight through cables
1 8 1 8
1 – Orange/White
2 – Orange
3 – Green/White
4 – Blue (not used)
5 – Blue/White (not used)
6 – Green
7 – Brown/ White (not used)
8 – Brown (not used)
1 – Orange/White
2 – Orange
3 – Green/White
4 – Blue (not used)
5 – Blue/White (not used)
6 – Green
7 – Brown/ White (not used)
8 – Brown (not used)
1
2
3
6
1
2
3
6
Pin Assignments
Ethernet Straight Through Cables

Keithley 2701 Specifications

General

Max Voltage	300 V
Max Current	3 A
Frequency Range	3 Hz to 500 kHz
Frequency Accuracy	0.01%
Weight	3.6 kg
Measurement Functions	Frequency, Temperature
Interface	IEEE-488 (GPIB), RS-232
DC Voltage Range	300 V
DC Current Range	3 A
AC Voltage Range	300V
AC Current Range	1 μA to 3 A
Resistance Accuracy	0.01%
Channels	10
Dimensions	213mm x 88mm x 370mm
