Keithley 6517A User Manual

IEEE-488 Reference
3-76

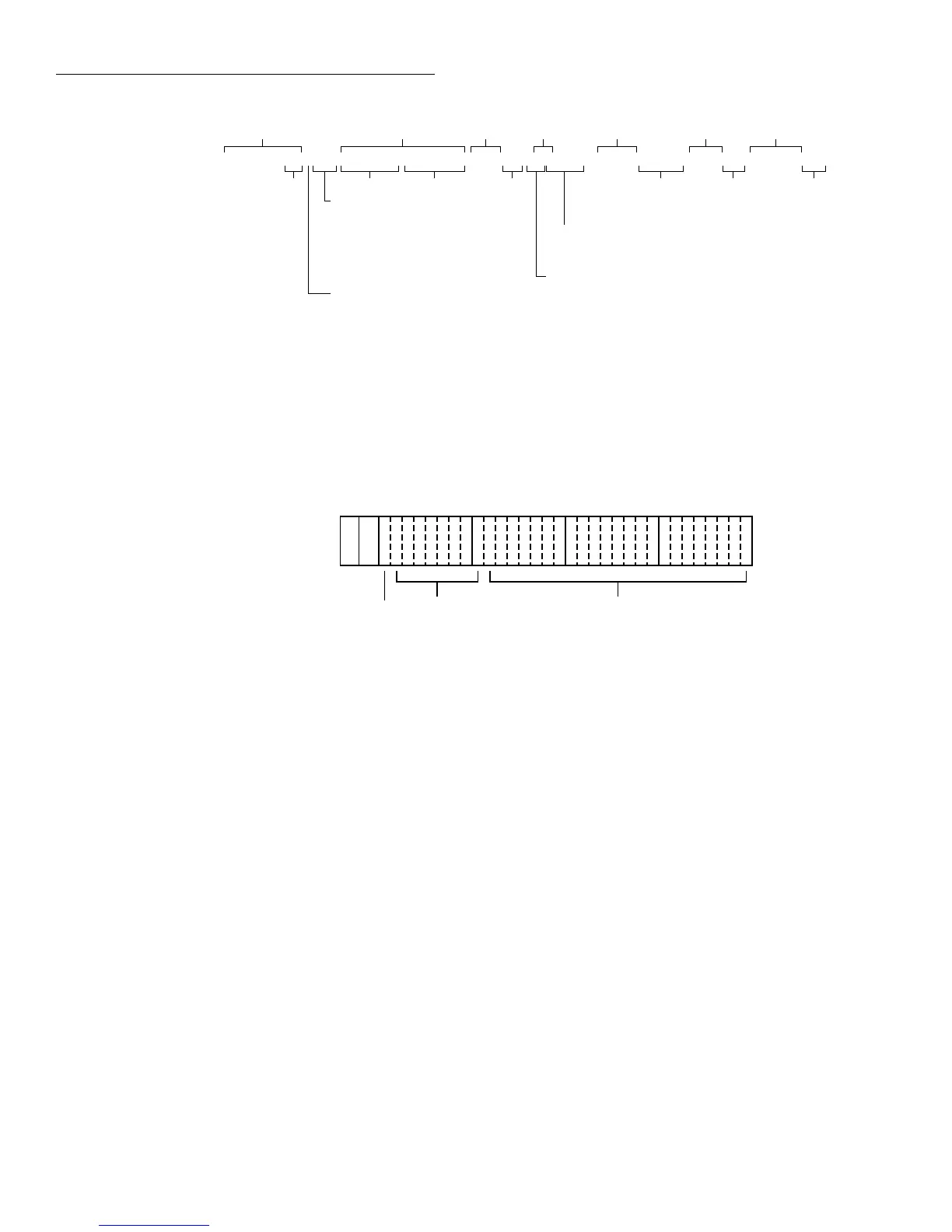

Figure 3-19
ASCII data format
±1234.567E±00NVDC,09:21:44.00,14-Sep-1994,±01234rdg#,400extchan,±0025.0Cexttemp,+065.3hum,±0010.000Vsrc
Reading Time Stamp*
Reading
Number
Channel
Number
External
Temp
Relative
Humidity (%)
V-Source
(Operate)
Exponent
Units:
VDC = Volts
ADC = Amps
OHM = Ohms
OHMCM (Volume)
OHMSQ (Surface)
%/V (Voltage coefficient)
COUL = Coulombs
Status:
N = Normal
Z = Zero Check Enabled
O = Overflow
U = Underflow
R = Reference (Rel)
L = Out of Limit
Time Date Units
000 = No Channel
001 to 400 = Channel number
Units:
extchan = External Channel
intchan = Internal Channel
Units:
C = °C
F = °F
K = K
Units Units
* Real time clock timestamp shown
Figure 3-20
IEEE754 single precision data format (32 data bits)
Byte 1
70
Header
# 0
Byte 2
70
Byte 3
70
Byte 4
70
se f
s = sign bit (0 = positive, 1 = negative)
e = exponent bits (8)
f = fraction bits (23)
Normal byte order shown. For swapped byte order,
bytes sent in reverse order: Header, Byte 4, Byte 3,
Byte 2, Byte 1.
The Header is only sent once for each measurement conversion.
