Front Panel Operation
2-47
FVMI source — When used to force voltage measure cur-
rent (FVMI), V-Source LO is connected to ammeter LO as
shown in Figure 2-39. Notice that the V-SOURCE HI and
INPUT HI terminals are used for this configuration. The V-
Source LO to ammeter LO connection can be controlled
from the METER CONNECT option of the CONFigure V-
SOURCE menu (see Ammeter LO to V-Source LO Connec-
tion).
Model 6517A
V-Source
HI
6517A
LO
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
INPUT
250V PEAK
COMMON
OUT
!
LINE RATING
90-134VAC
180-250VAC
50, 60, 400HZ
55VA MAX
LINE FUSE
SLOWBLOW
1/2A, 250V
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
PREAMP OUT
250V PEAK
V SOURCE
LO HI
Connections
INTERLOCK
!
R
L
Equivalent Circuit
R
L

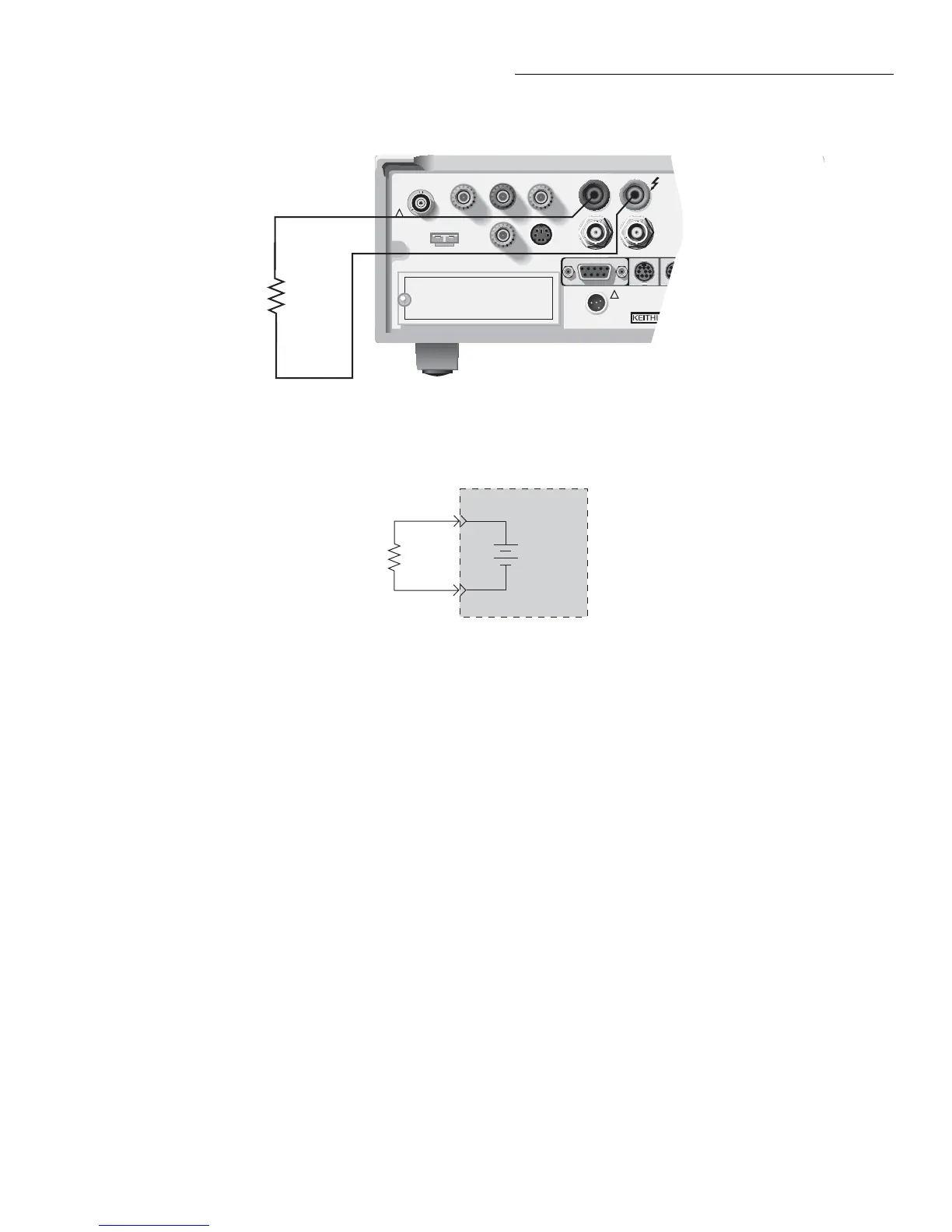

Figure 2-38
V-source (independent configuration)
To Next Page
