7-12 Range, Digits, Speed, and Filters 2400 Series SourceMeter

User’s Manual

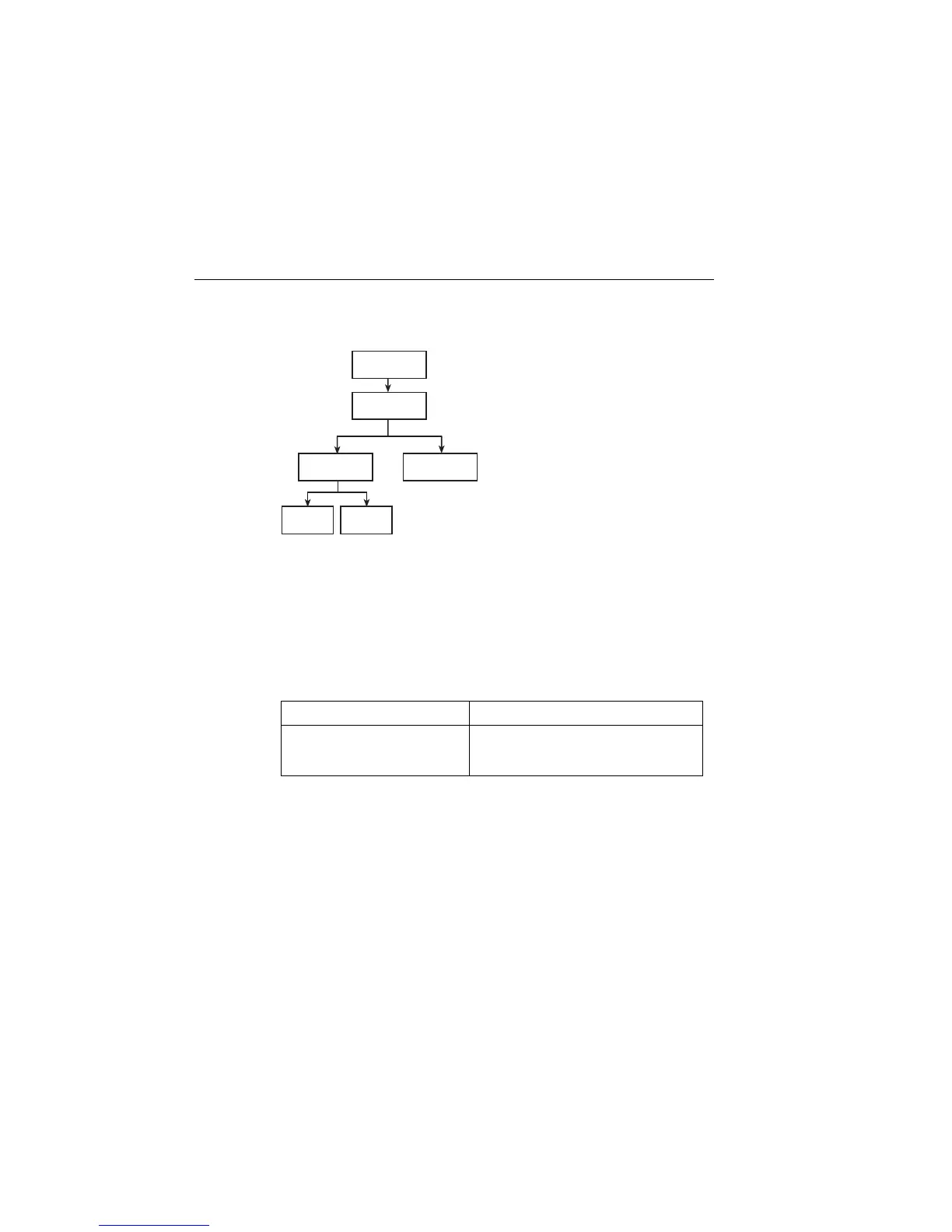

Figure 7-3

Filter conﬁguration menu tree

Remote ﬁlter programming

Filter commands

Table 7-4 summarizes ﬁlter commands. See Section 18, “SENSe1 subsystem,” “Conﬁgure

and control ﬁlter,” for more details.

Table 7-4

Filter commands

Command Description

:SENSe:AVERage:TCONtrol <type>

:SENSe:AVERage:COUNt <n>

:SENSe:AVERage <state>

Select ﬁlter type (type = REPeat or MOVing).

Set ﬁlter count (n = count, 1 to 100).

Enable/disable ﬁlter (state = ON or OFF)*.

* For the Model 2430 Pulse Mode, the ﬁlter cannot be enabled.

CONFIG

FILTER

AVERAGE

COUNT

AVERAGE

MODE

REPEATMOVING
