3-6 DUT Test Connections Series 2600 System SourceMeters Reference Manual
2600S-901-01 Rev. A / May 2006 Return to Section 3 topics

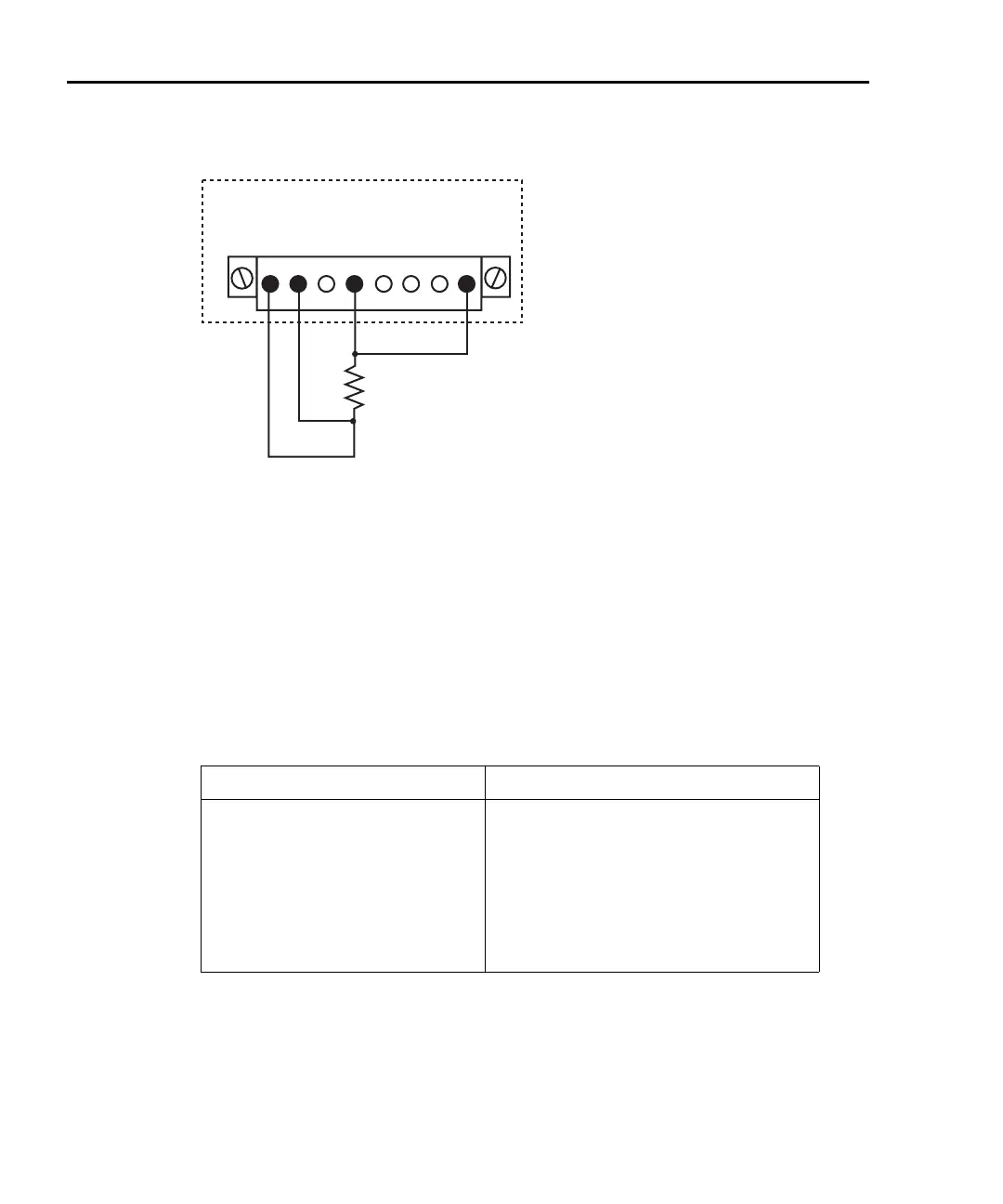

Figure 3-5
4-wire connections
<1kW
S LO
DUT
LO
CHANNEL A
LO GLO HI G G G HI
SS
KEITHLEY Series 2600
HI
S HI
(remote sense)
Sense mode selection
The sense mode can be set for 2-wire local or 4-wire remote connections.
Front panel sense selection
Figure 3-1 summarizes the steps to check and/or change the sense mode front
panel. When in the menu structure, use the Rotary Wheel (or CURSOR keys) to
position the blinking cursor on the desired menu item, and press ENTER to select
it. Use the EXIT key to back out of the menu structure.
Table 3-1
Selecting the sense mode from the front panel
Model 2601/2611 Model 2602/2612
1) Press CONFIG key 1) Press CONFIG key
2) Select SRC or MEAS menu* 2) Select CHANNEL-A or CHANNEL-B
3) Select V-SOURCE menu 3) Select SRC or MEAS menu*
4) Select SENSE-MODE menu 4) Select V-SOURCE menu
5) Select 2-WIRE or 4-WIRE 5) Select SENSE-MODE menu
6) Select 2-WIRE or 4-WIRE
* The sense mode can be set from either the SRC or MEAS menu.
