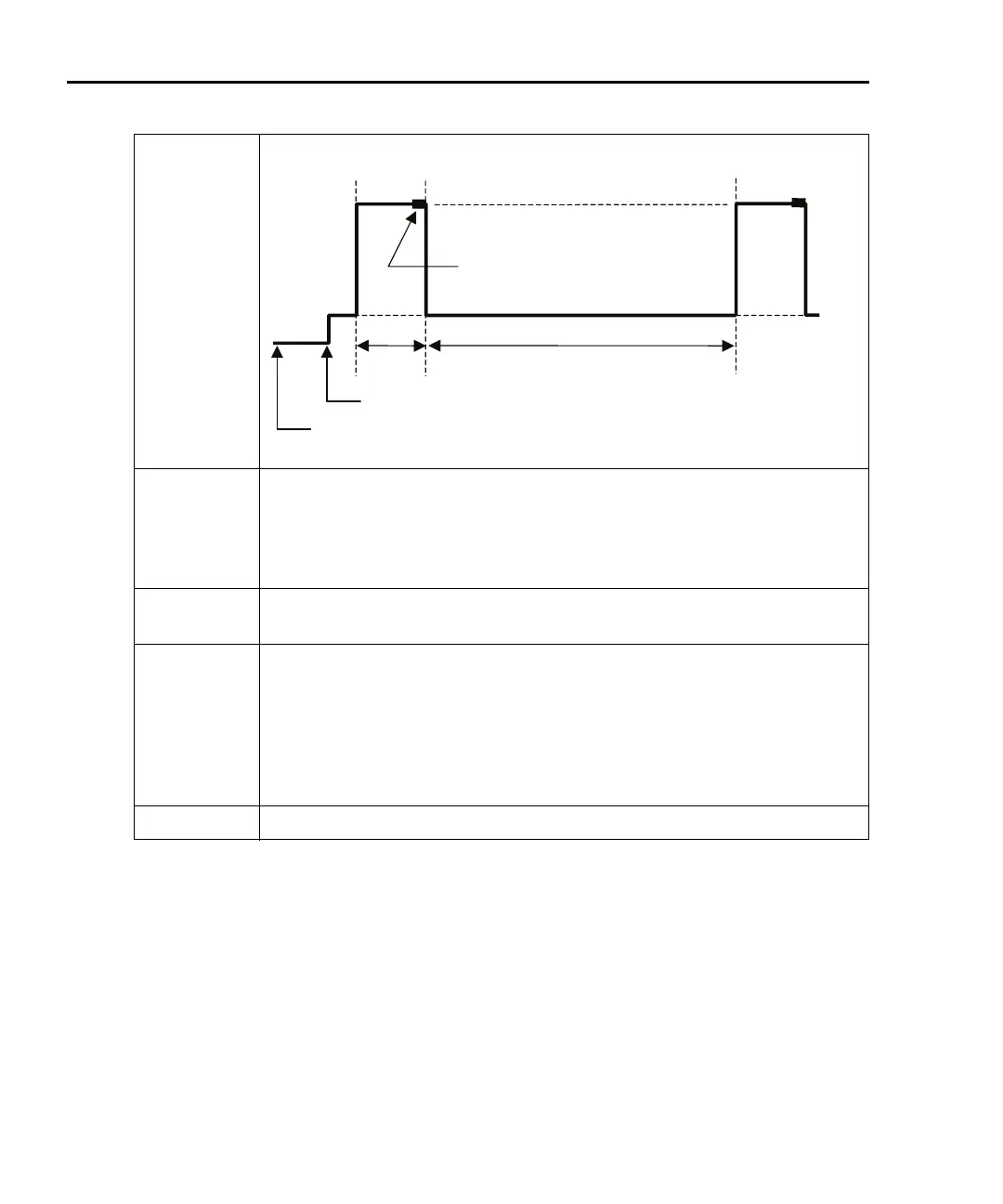

Waveform:
Pulse initiated here
bias
level
ton
toff
pulse
level
Measurement
(1/NPLC Seconds)
Last source value before pulse train was initiated
Return
Values:
f: A Boolean flag. This flag will be true when the pulse was
successfully configured, false when errors were encountered.
msg: A string message. If the f flag is false, msg will contain an error
message. Otherwise, msg will contain a string indicating successful
configuration.
Output
Data:
Pulsed voltage measurements are stored in the reading buffer specified by
the buffer input argument.
Example:
ConfigPulseIMeasureV(smua, 0, 5, 10, 0.001, 0.080, 1,
smua.nvbuffer1, 1)
Setup a pulse train that will use SourceMeter channel A. The pulse amplitude
will be 5A and will return to 0A after 1msec. The pulse will remain at 0A for 80
msec and the voltage limit will be 10V during the pulse. The pulse train will
consist of only 1 pulse and this pulse will be assigned a tag index of 1.
See Also: InitiatePulseTest, InitiatePulseTestDual
