Series 2600 System SourceMeters Reference Manual Performance Verification 15-9
Return to Section 15 topics 2600S-901-01 Rev. A / May 2006

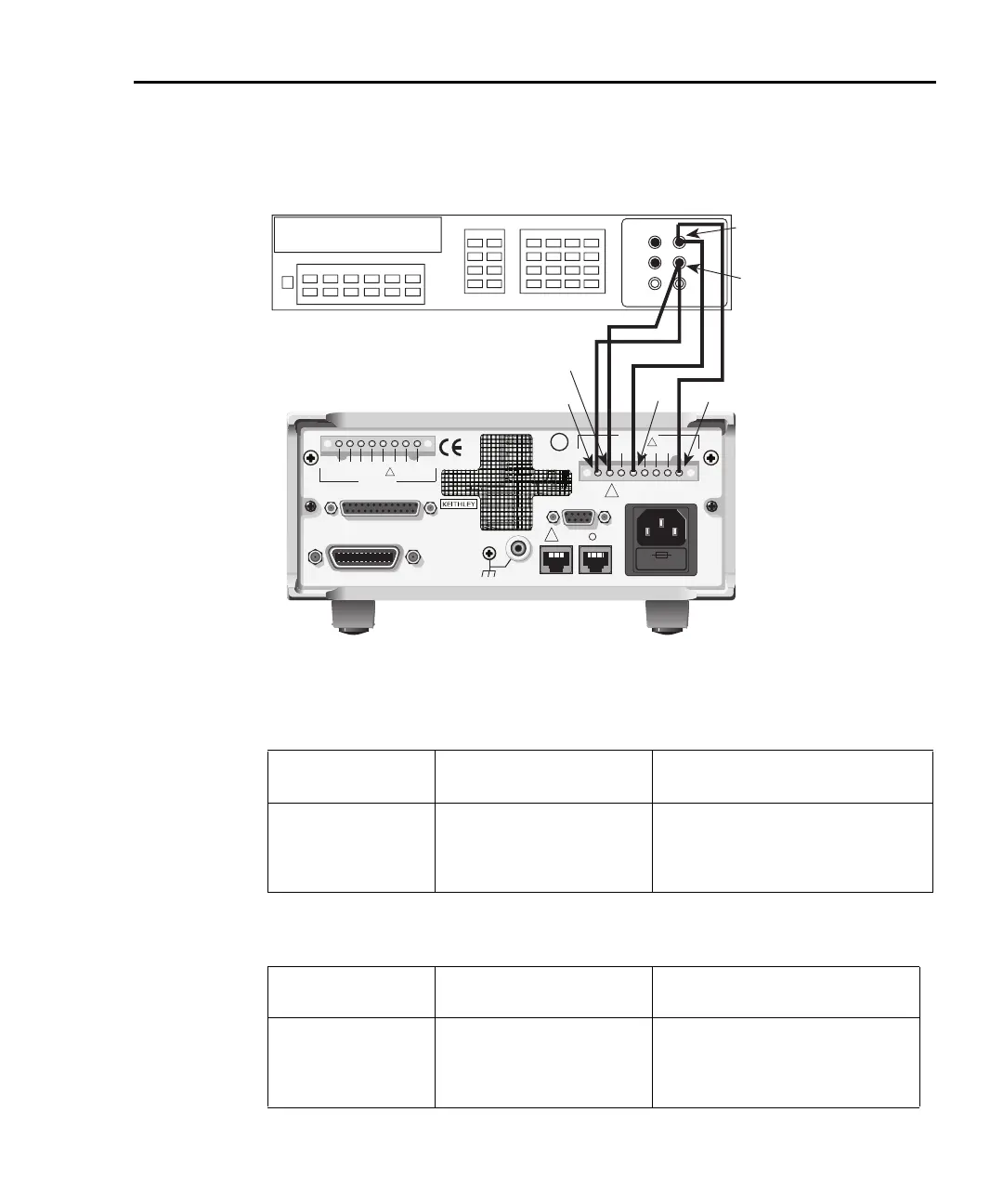

Figure 15-1
Connections for voltage verification
WARNING:
NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING:
NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U.S.A.
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
LINE RATING
100-240VAC
50, 60Hz
240VA MAX.
DIGITAL I/O
RS-232
TSP-Link
LINE FUSE
SLOWBLOW
3.15A, 250V
CAT I
SS
LO LO HIHI GGGG
CHANNEL A
!
!
!
U
L
C
US
LISTED
SourceMeter
4ZA4
CAT I
S
S
LO
LO
HI
HI
G
G
G
G
CHANNEL B
!
R
Input HI
Input LO
Model 2602/2612 Channel A
Connections Shown
LO
HI
Digital Multimeter
S LO
S HI
Table 15-2
Model 2601/2602 output voltage accuracy limits
Model 2601/2602
source range
Model 2601/2602
output voltage setting
Output voltage limits
(1 year, 18°C–28°C)
100mV
1V
6V
40V
90.000mV
0.90000V
5.4000V
36.000V
89.732 to 90.268mV
0.89942 to 0.90058V
5.39712 to 5.40288V
35.9808 to 36.0192V
Table 15-3
Model 2611/2612 output voltage accuracy limits
Model 2611/2612
source range
Model 2611/2612
output voltage setting
Output voltage limits
(1 year, 18°C–28°C)
200mV
2V
20V
200V
180.000mV
1.80000V
18.000V
180.000V
179.589 to 180.411mV
1.79904 to 1.80096V
17.9914 to 18.0086V
179.914 to 180.086V
