SERVICE MANUAL

FASTMIG X

8 (37)

Kemppi OY

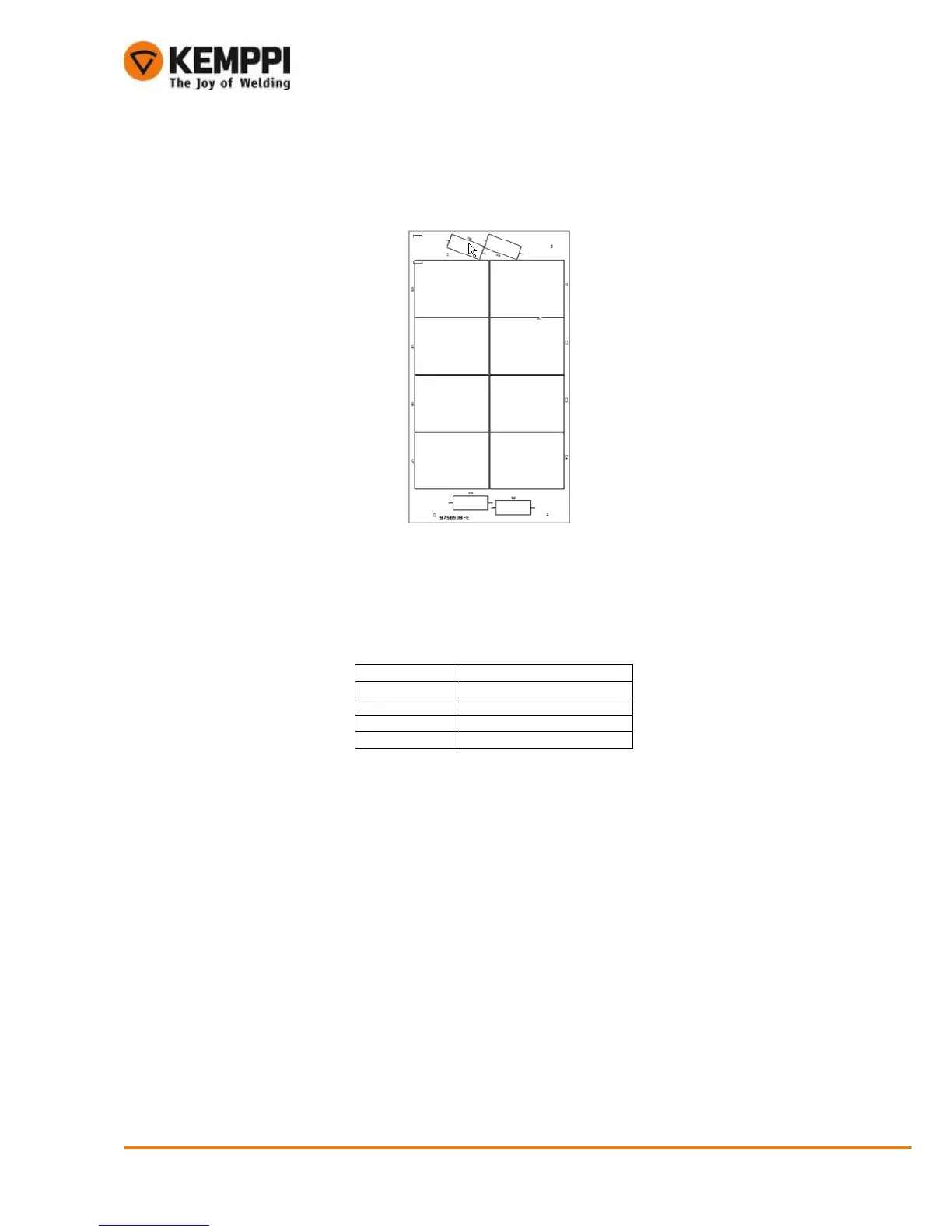

3. DC-LINK CAPACITOR CARD Z002

3.1. Capacitors (C1-C8) and discharge resistors (R1-R4)

• The purpose of the DC-link capacitors (C1-C8) is to provide energy storage and low impedance voltage source for the

power stage. Resistors (R1-R4) discharge DC-link capacitors when power source is switched off.

3.2. Connectors

Connector Description

X1 DC-link voltage (+)

X2 DC-link voltage (+)

X3 DC-link voltage (-)

X4 DC-link voltage (-)
