9 (37)
Kemppi OY

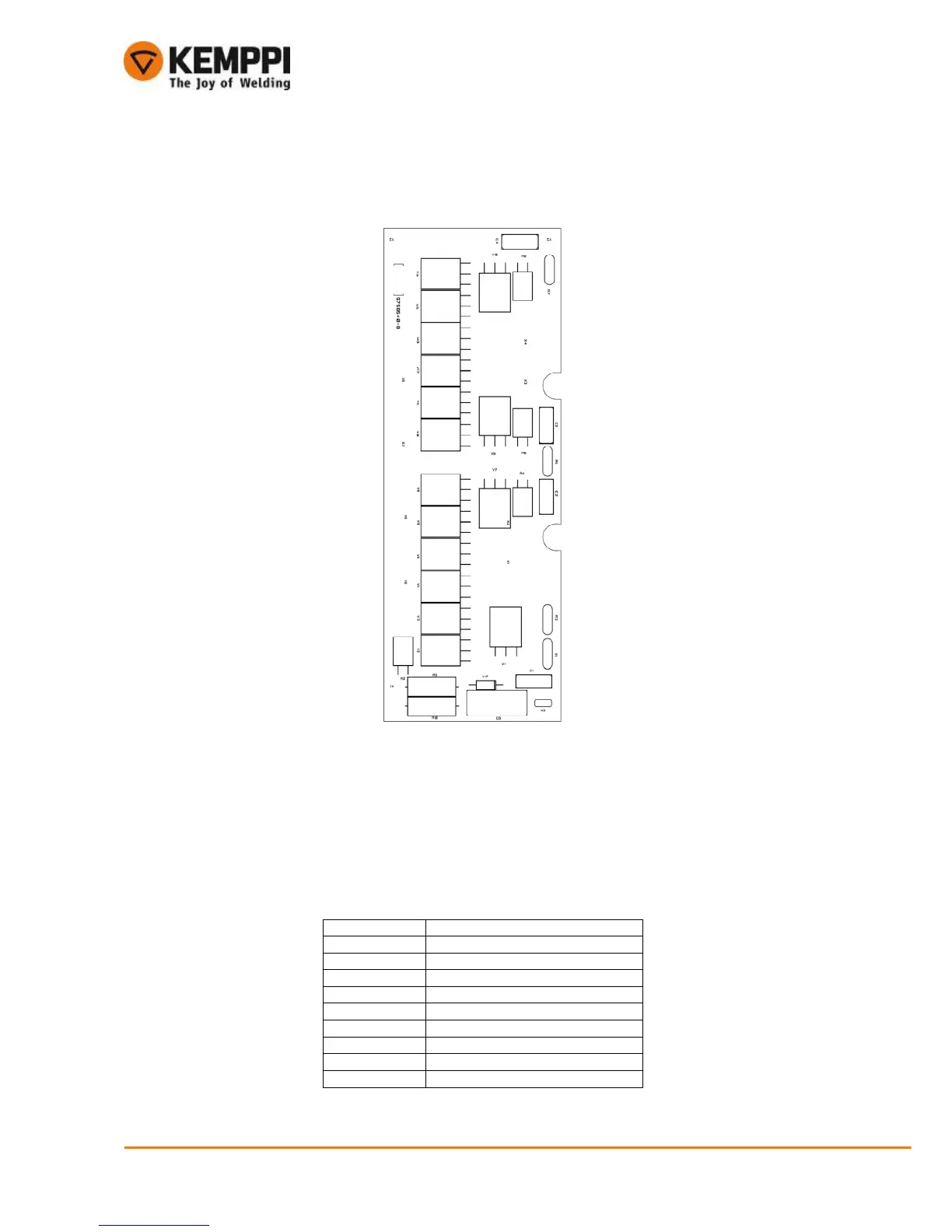

4. SECONDARY RECTIFIER CARD Z003
• The circuit of Z003 is a full wave rectifier. It rectifies the secondary current. There are (8+8) diodes (V1-V16) in parallel
in the unit
• Capacitors (C1-C4) and resistors (R2, R4, R6, R8) form a snubber circuit. The snubber reduces the voltage stress of the
diodes after the reverse recovery current snaps off (The voltage stress is caused by leakage inductance and stray ca-
pacitance oscillation)
• Capacitor C5, diode V17 and resistors (R9 and R10) form a filter circuit which reduces open circuit voltage ripple. Filter
circuit is needed for controlling open circuit voltage
• Varistors (R1, R3, R5, R7) are for TIG ignition spark protection
4.1. Connectors
Connector Description
X1 Main transformer
X2 Main transformer
X3 Main transformer
X4 Main transformer
X5 Not in use
X6 Not in use
X7 Not in use
X8 Not in use
X9 Main transformer
