SERVICE MANUAL

FASTMIG X

22 (37)

Kemppi OY

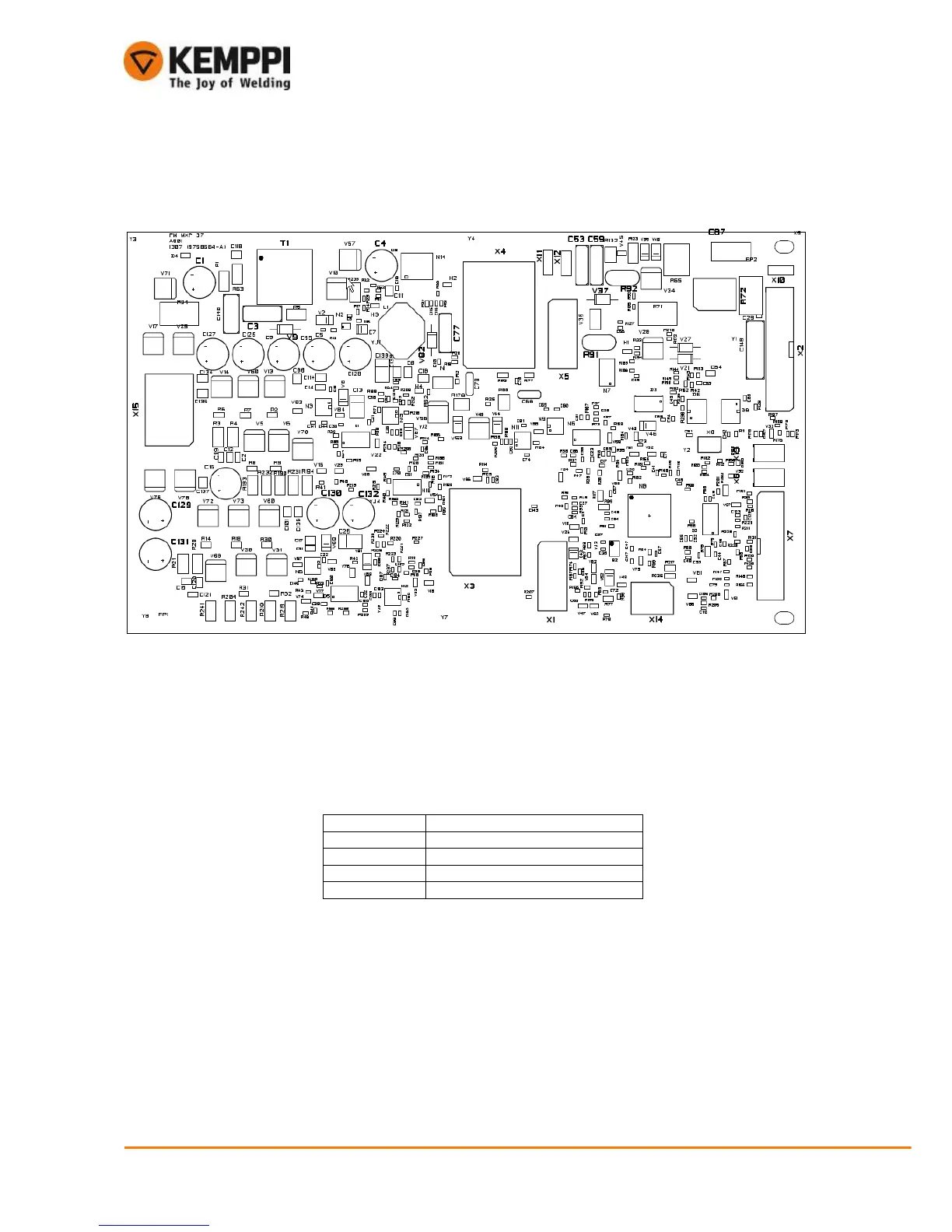

2. MOTOR CONTROL CARD A001

2.1. Power supply

• Control card A001 auxiliary voltages are created from the +50V bus voltage.

• Flyback controller N2 is used to regulate +9V (actual value is 10,6V) voltage from +50V. Step down regulator N14 is

used to regulate +5V from +9V. Low dropout regulator N1 regulates +3.3V

2.2. Leds

Led Description

H1 Data line

H2 Aux. voltage + 5 Vdc

H3 Aux. voltage + 9 Vdc

H4 Aux. voltage + 3,3 Vdc
