SERVICE MANUAL
KEMPACT RA_V_1.2
21 (40)
Kemppi Oy
4.2. Kempact 253, 323

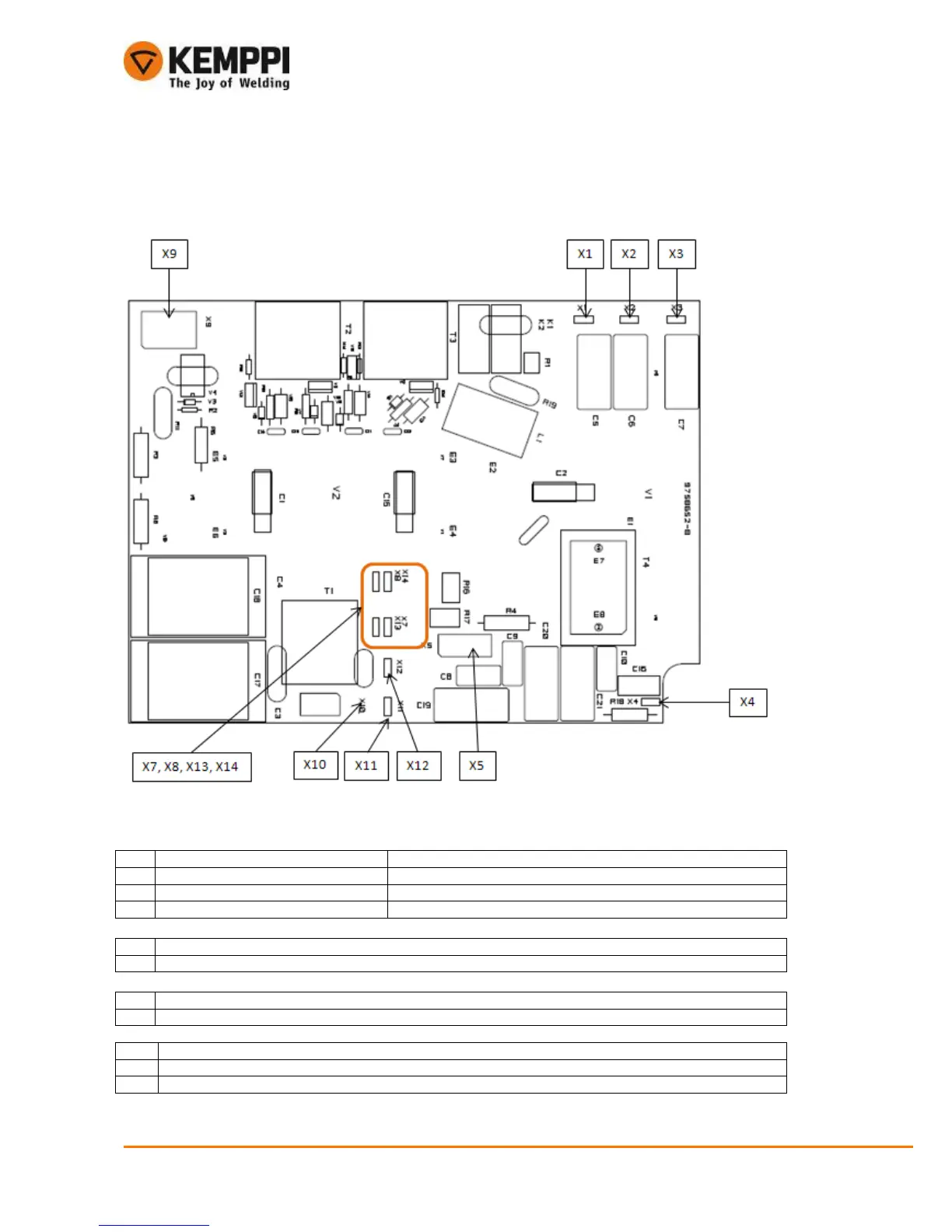

4.2.1. Connectors
Pin
Signal
Description
X1 Mains voltage Main voltage connector
X2
Mains voltage
Main
s voltage
connector
X3
Mains voltage
Mains voltage
connector
Pin Signal
X4 Chassis ground connection
Pin
Signal
X5
Auxiliary transformer connection
, auxliary transformer is protected with PTC resistors R16 and R17
Pin Signal
X7
Main transformer connections
(253 machine use two flat connectors, 323 use four)
X8
Main transformer connections
(253 machine use two flat connectors, 323 use four)
