MasterTig 235ACDC, 325DC, 335ACDC, 425DC
Operating manual - EN
2.3 Installing cooling unit
Only an authorized electrician is allowed to install the cooling unit.
Do not connect the equipment to the mains before the installation is complete.
Do not attempt to move the power source with a hoist from its handle. The handle is meant for manual lifting only.
When a transport cart is used, refer also to "Mounting units on cart (optional)" on page13.
Tools:
• Screwdriver, Torx head (T20).

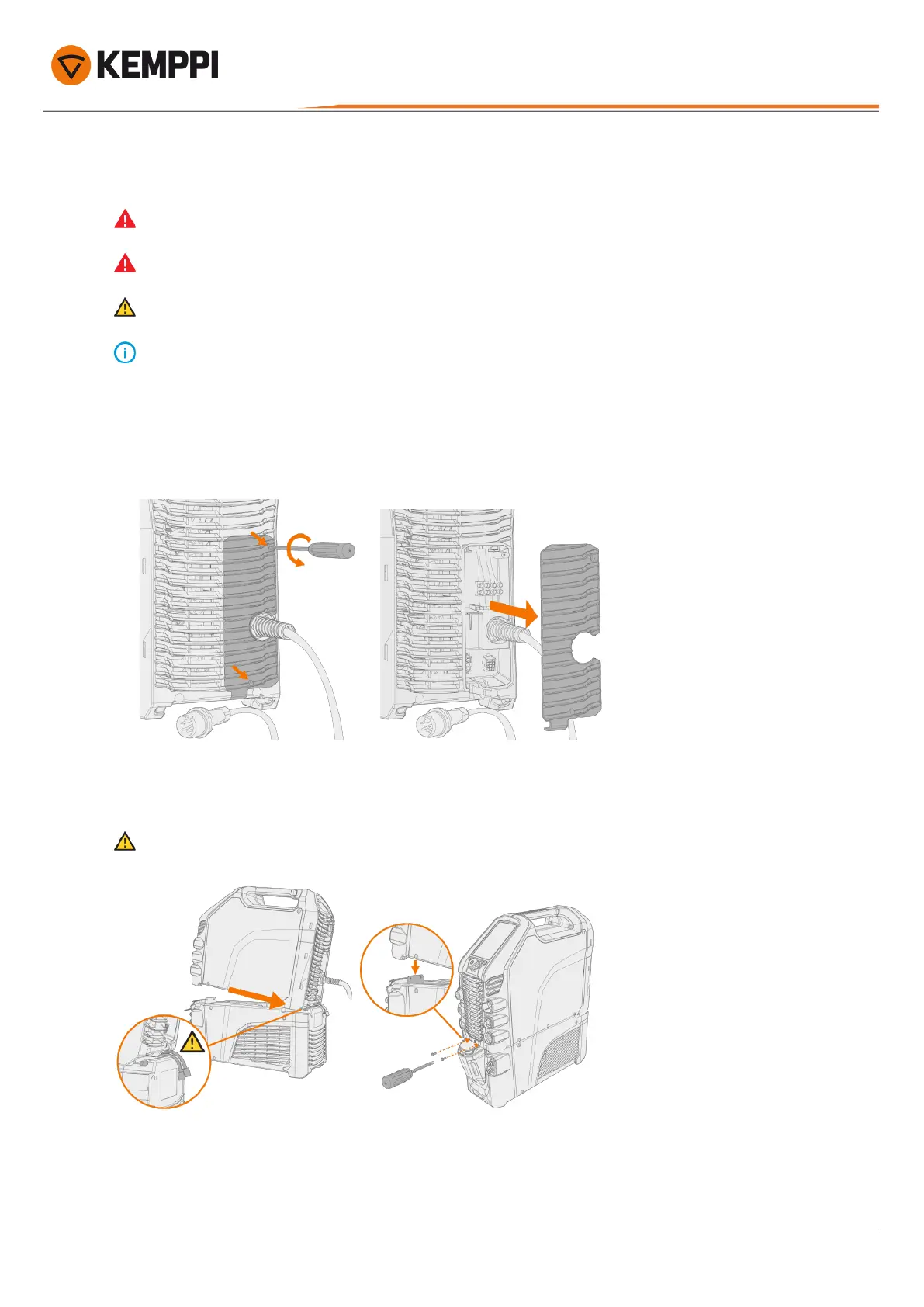

1. Remove the power source's rear cover.
2. Move the power source on top of the cooling unit so that the bar in the rear goes into the rear connection interface
and lower the front onto the front connection interface. Secure the power source from the front with the screws
provided.
Ensure that the cooling unit’s connection cables don't get caught between the units and get damaged in the process.
