MasterTig 235ACDC, 325DC, 335ACDC, 425DC
Operating manual - EN

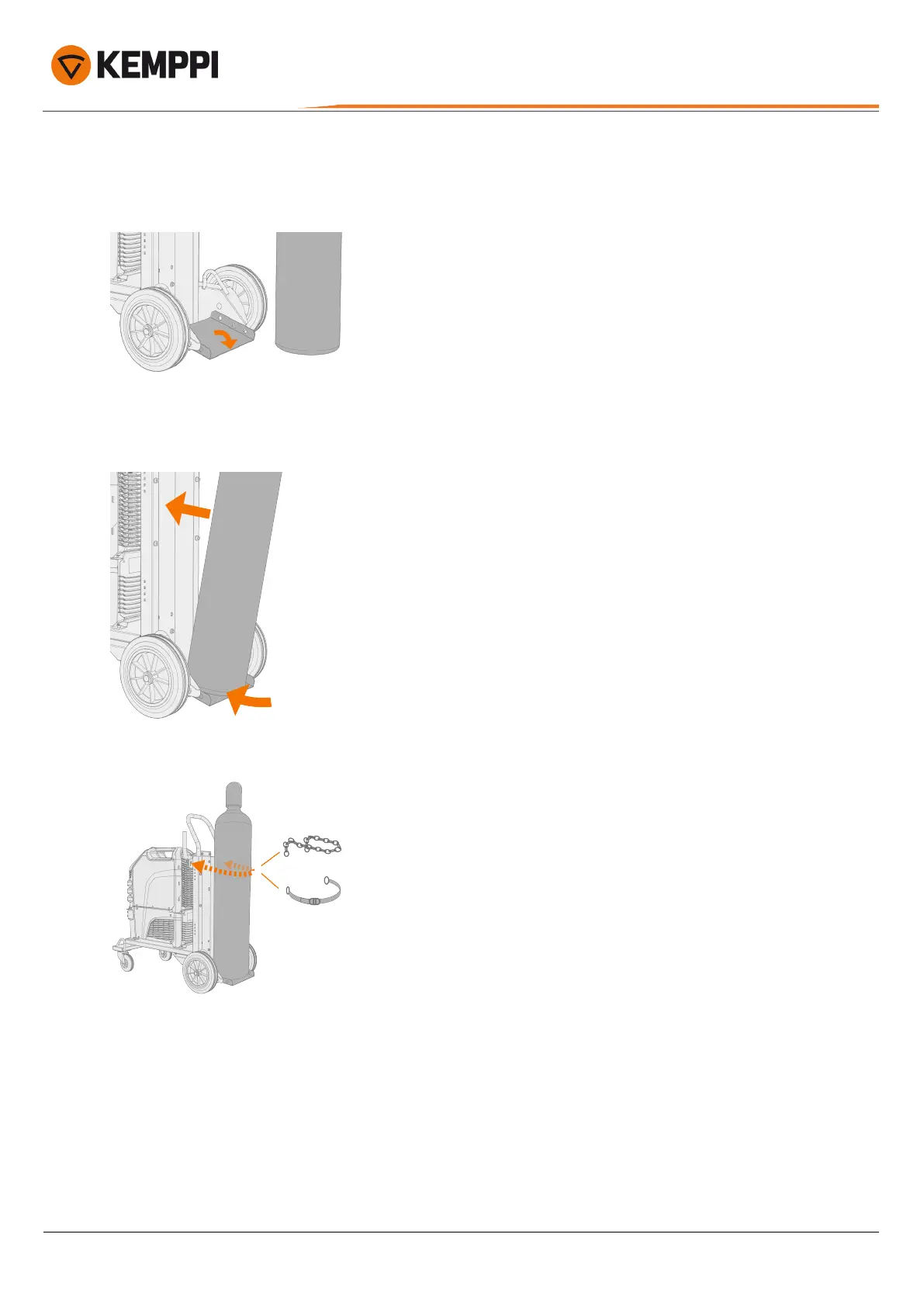

2.11 Installing gas bottle on cart
1. P45MT only: Tilt the pivoting gas bottle rack down against the floor for easier gas bottle mounting.
2. Move the gas bottle onto the rack.
>> With P45MT, tilt the gas bottle back and pull the cart towards the gas bottle and push the top of the gas bottle
forwards. The pivot plate assists to lift the bottle into upright position.
3. Secure the gas bottle in place with a strap or a chain. Use the dedicated fixing points in the cart.
© Kemppi
22
1920900 / 2052
