MasterTig 235ACDC, 325DC, 335ACDC, 425DC
Operating manual - EN

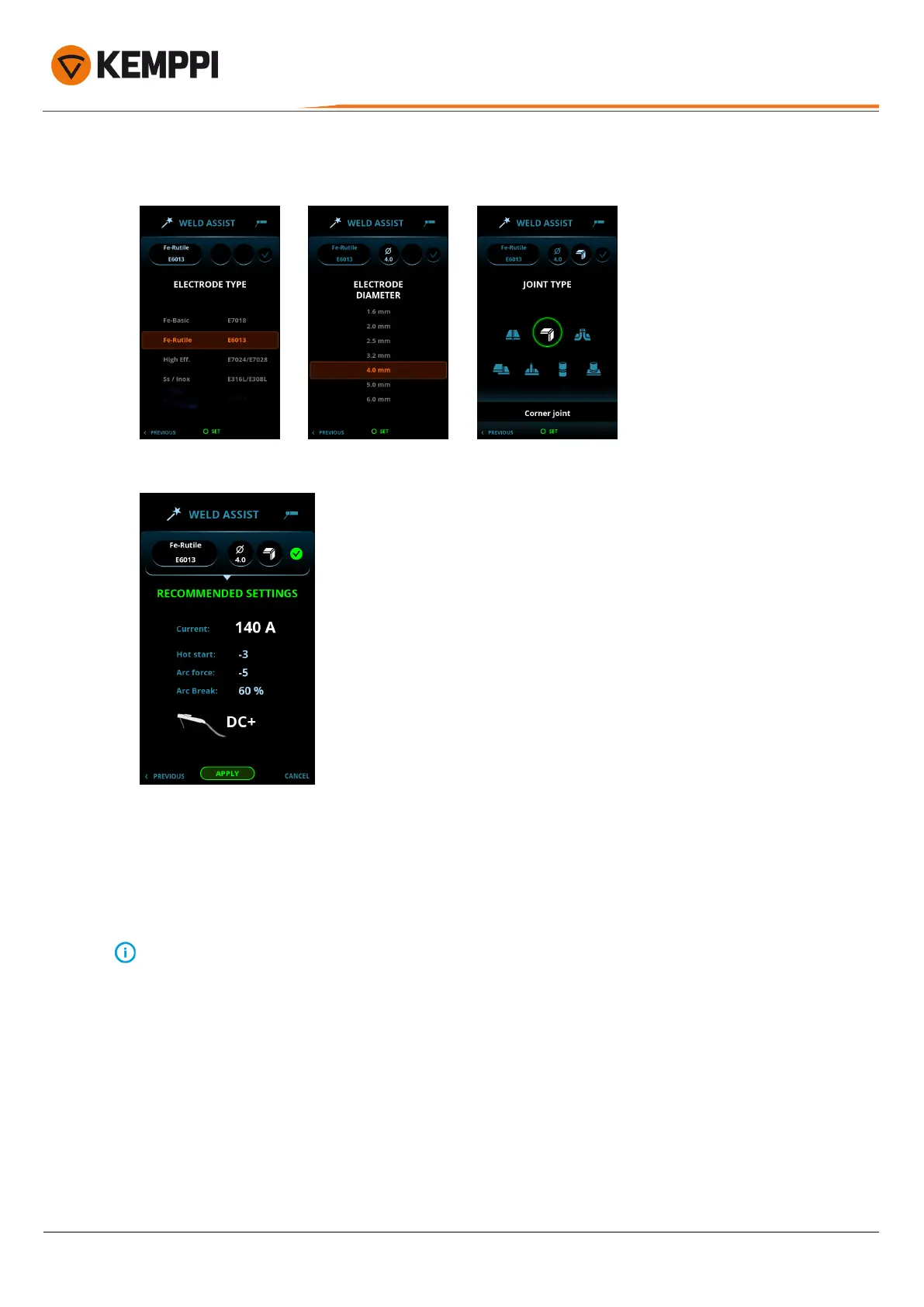

>> The electrode diameter (1.6 ... 6 mm).
>> The welding joint type: butt joint / corner joint / lap joint / fillet joint / tube joint / tube+plate joint.
3. Confirm the Weld Assist’s recommendation for welding settings by selecting 'Apply'.
Weld Assist automatically sets the following parameters for you:
• Current: Depends on the machine used
• Hot start
• Arc force
• Arc break
• DC+ indicates polarity (in this case the electrode holder is connected to the positive (+) DIX connector).
All these parameters can still be modified as per normal for the actual welding.
3.3.3 Memory channels view
Memory channel is a place to store predefined welding parameter settings for future use. A welding machine can
include a number of preset and user-defined channels.
© Kemppi
40
1920900 / 2052
