Service manual MinarcTig Evo 200
Version 1.1.5.
29.9.2015
8
Kemppi Oy

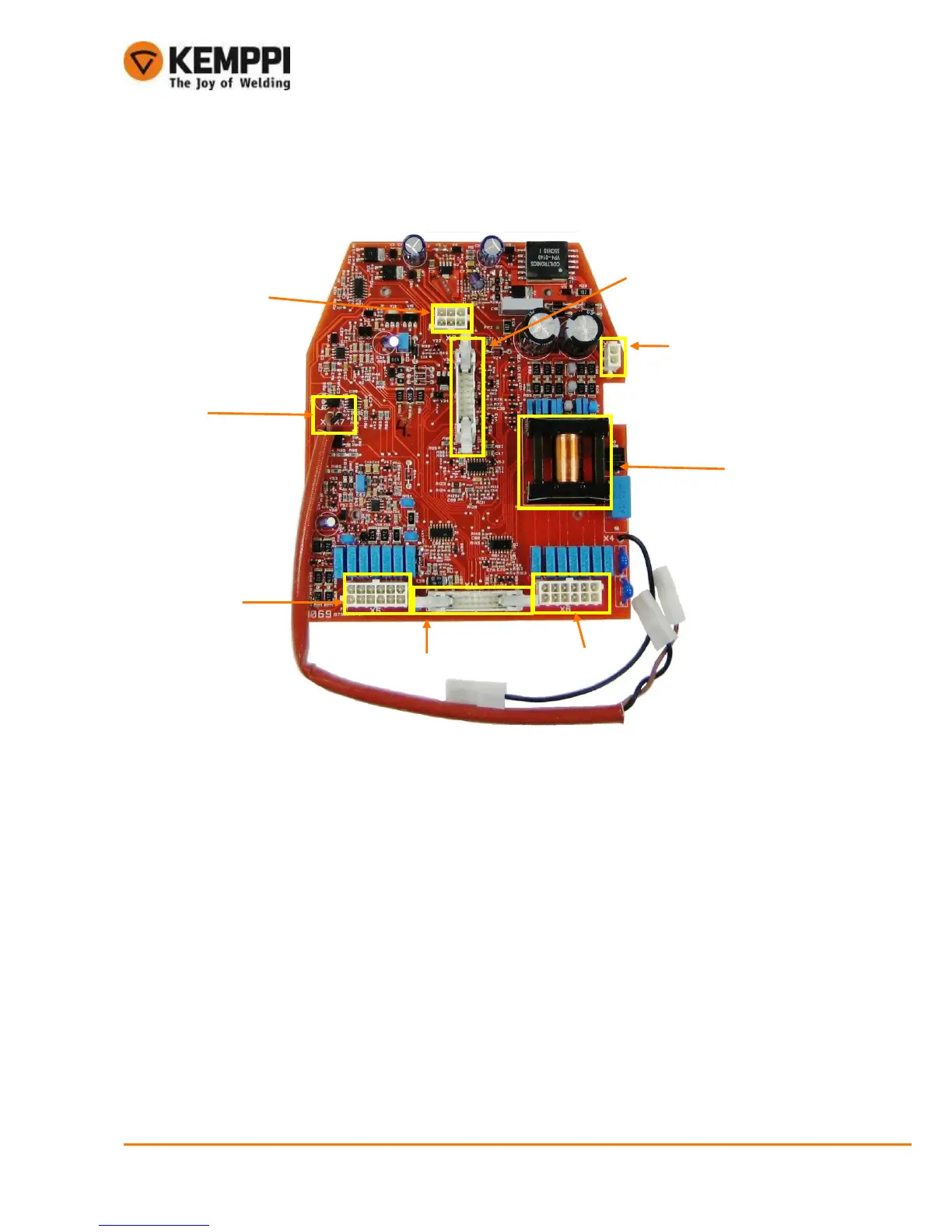

3.3.3. A001 control card structure
1. X2 connector to A002 control card
2. Shunt connection to the A001 card (X8 brown, X7 black)
3. X5 Remote control connector
4. X1 connector to P001 panel card
5. X6 connector to TIG torch control line
6. Filter choke for TIG remote connection
7. X3 connector to auxiliary transformer
8. X1 flat cable connector from P001 to A001 card
1.
3.
4.
5.
6.
7.
2.
8.
