3.3. Construction
Left side
Front
Right side
Back
Left side, side plate
removed

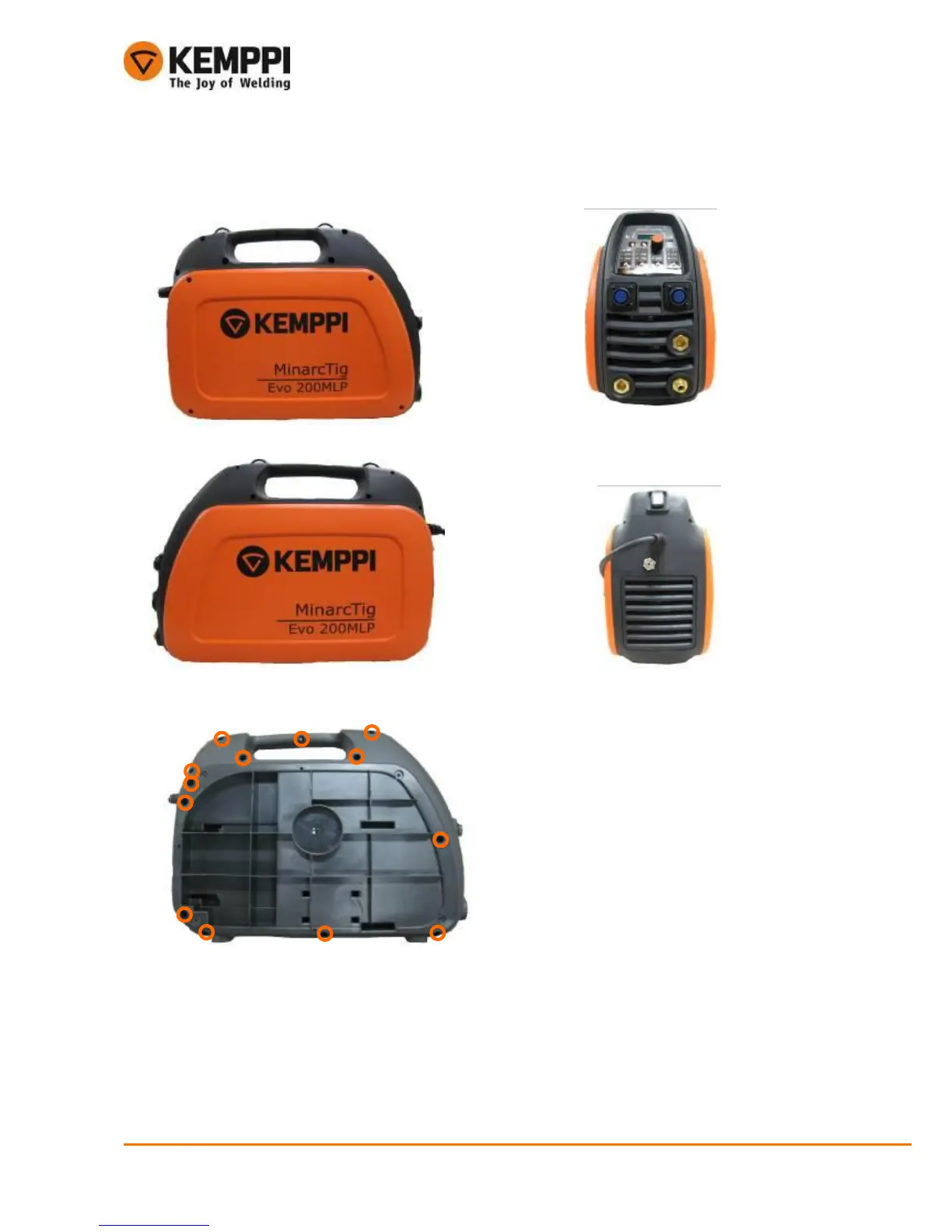

Left side plate is installed with
T20 (4 pieces) torx screws and
side plate has to be removed
before opening case.
Case itself is kept in place with
T15 (12 pieces) torx screws.
Places marked in picture on the
left.
