Kemppi MinarcTig Evo 200 Service Manual

Service manual MinarcTig Evo 200
Version 1.1.5.
29.9.2015
6
Kemppi Oy

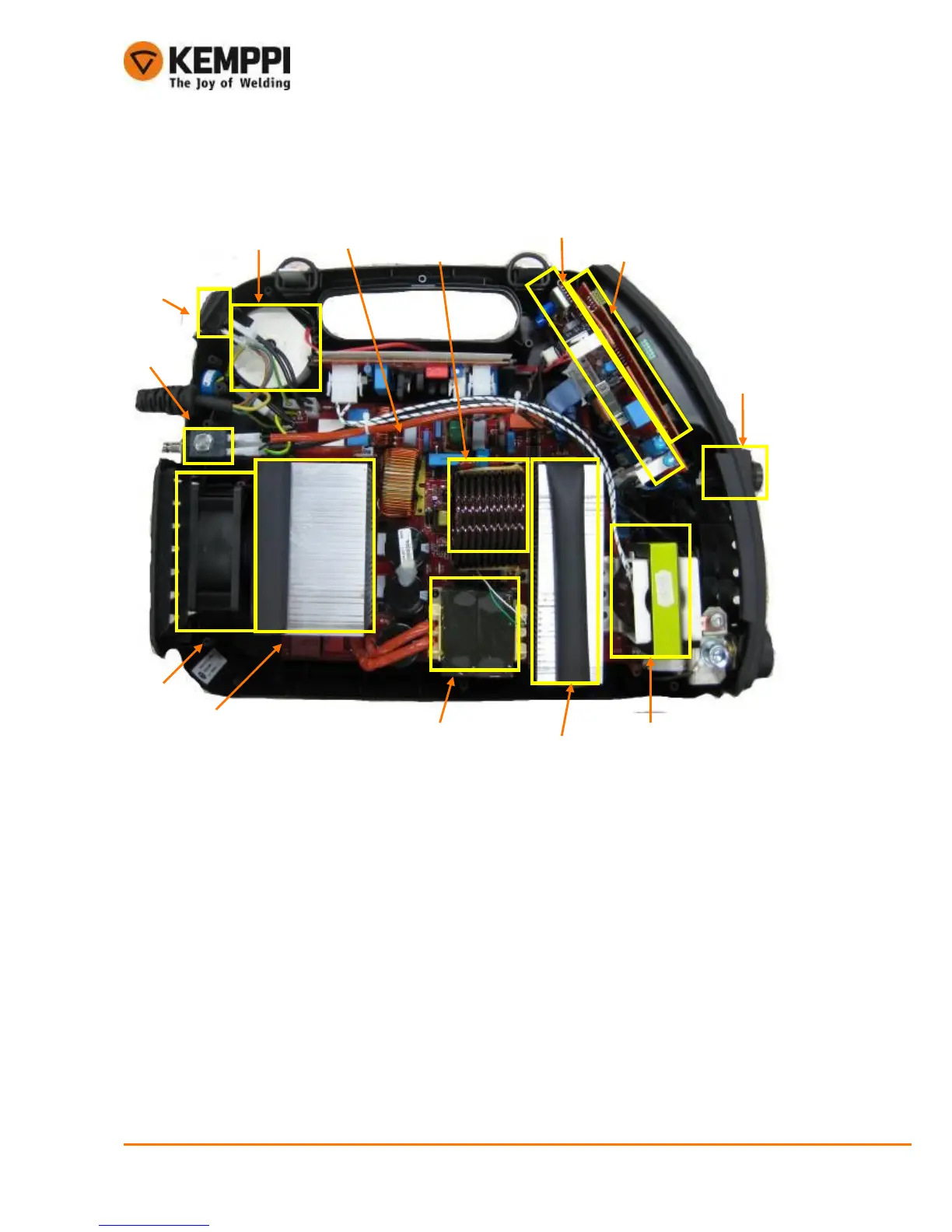

3.3.1. Inner structure
1. Main switch
2. Primary heat sink
3. T001 main transformer
4. Secondary heat sink
5. Spark transformer
6. Remote control socket
7. P001 panel card
8. A001 control card
9. Secondary choke
10. Z001 main circuit card
11. Y001 magnetic valve
12. M001 fan
13. T002 Auxiliary transformer
1.
2.
3.
4.
5.
8.
6.
10.
9.
7.
11.
12.
13.

Kemppi MinarcTig Evo 200 Specifications

General

Input Voltage	230 V
Protection Class	IP23
Power Factor	0.99
Welding Process	TIG, MMA
Duty Cycle TIG	35% at 200 A
Standards	IEC 60974-1, IEC 60974-10
