Service manual MinarcTig Evo 200
Version 1.1.5.
29.9.2015
9
Kemppi Oy

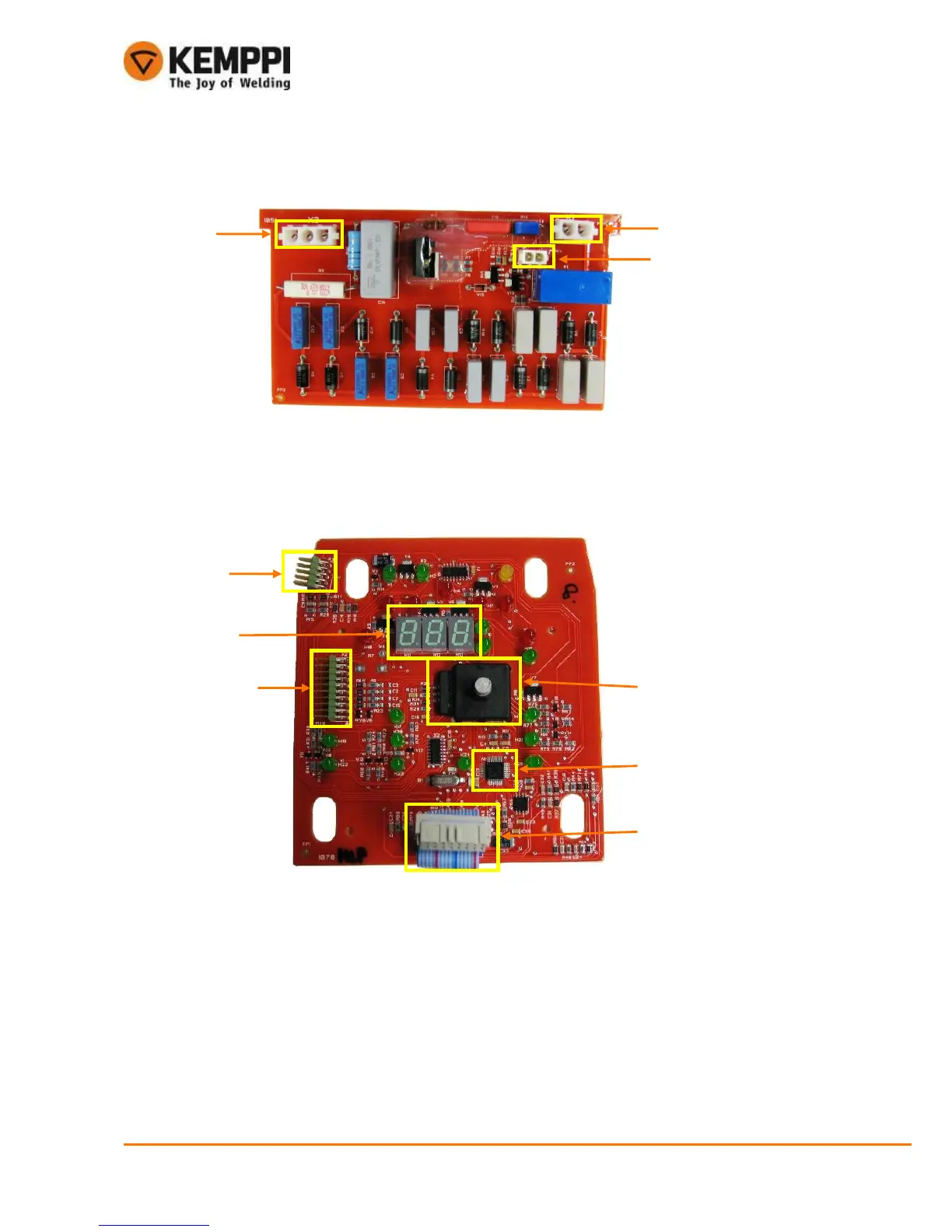

3.3.4. A002 spark card structure
3.3.5. P001 panel card structure
1. X3 Spark transformer connector (output)
2. X1 Main transformer secondary connector (input)
3. X2 Control card connector (Spark ON/OFF)
1.
3.
2.
1.
1. X10 Service connector for Datamaster 2
2. 7-Segment display
3. X2 membrane panel connector
4. X1 control card flat cable connection
5. Panel microprocessor
6. Pulse potentiometer
3.
6.
2.
5.
4.
