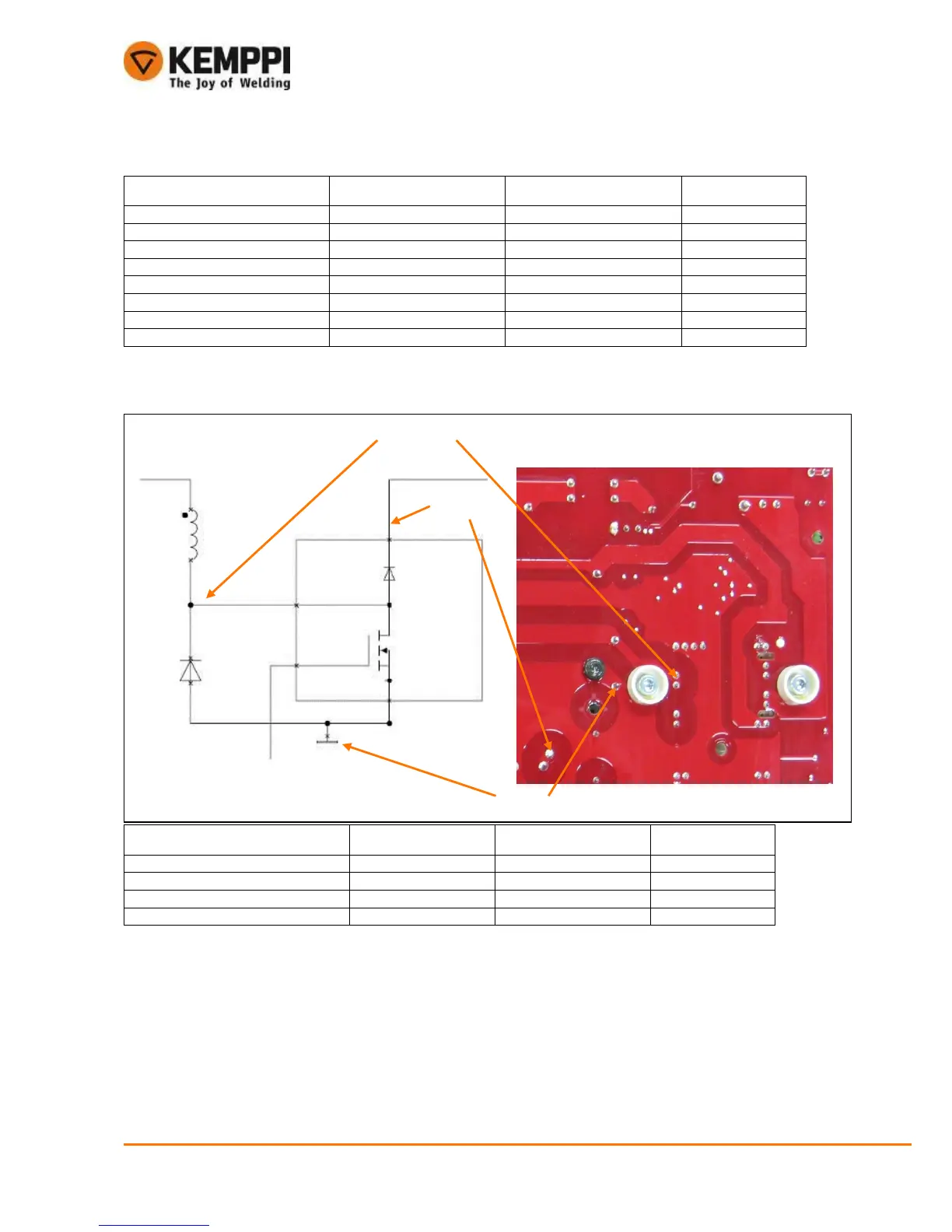

Service manual MinarcTig Evo 200
Version 1.1.5.
29.9.2015
17
Kemppi Oy
Diode
Positive test lead
Negative test lead
Result
Diode 1 forward bias
L1
Rectifier output
0,2-0,7VDC
Diode 3 reverse bias
L1
GND
No value
Diode 1 reverse bias
Rectifier output
L1
No value
Diode 3 forward bias
GND
L1
0,2-0,7VDC
Diode 2 forward bias
L2
Rectifier output
0,2-0,7VDC
Diode 4 reverse bias
L2
GND
No value
Diode 2 reverse bias
Rectifier output
L2
No value
Diode 4 forward bias
GND
L2
0,2-0,7VDC
Diode
Positive test lead
Negative test lead
Result
Series diode forward bias
PFC input
DC-link positive
0,4-0,9VDC
Discharge diode reverse bias
PFC input
GND
No value
Series diodes reverse bias
DC-link positive
PFC input
No value
Discharge diode forward bias
GND
PFC input
0,3-0,7VDC
DC-link
positive
PFC input
GND
