2.3 X3 Wire Feeder
1
2
3
4
5

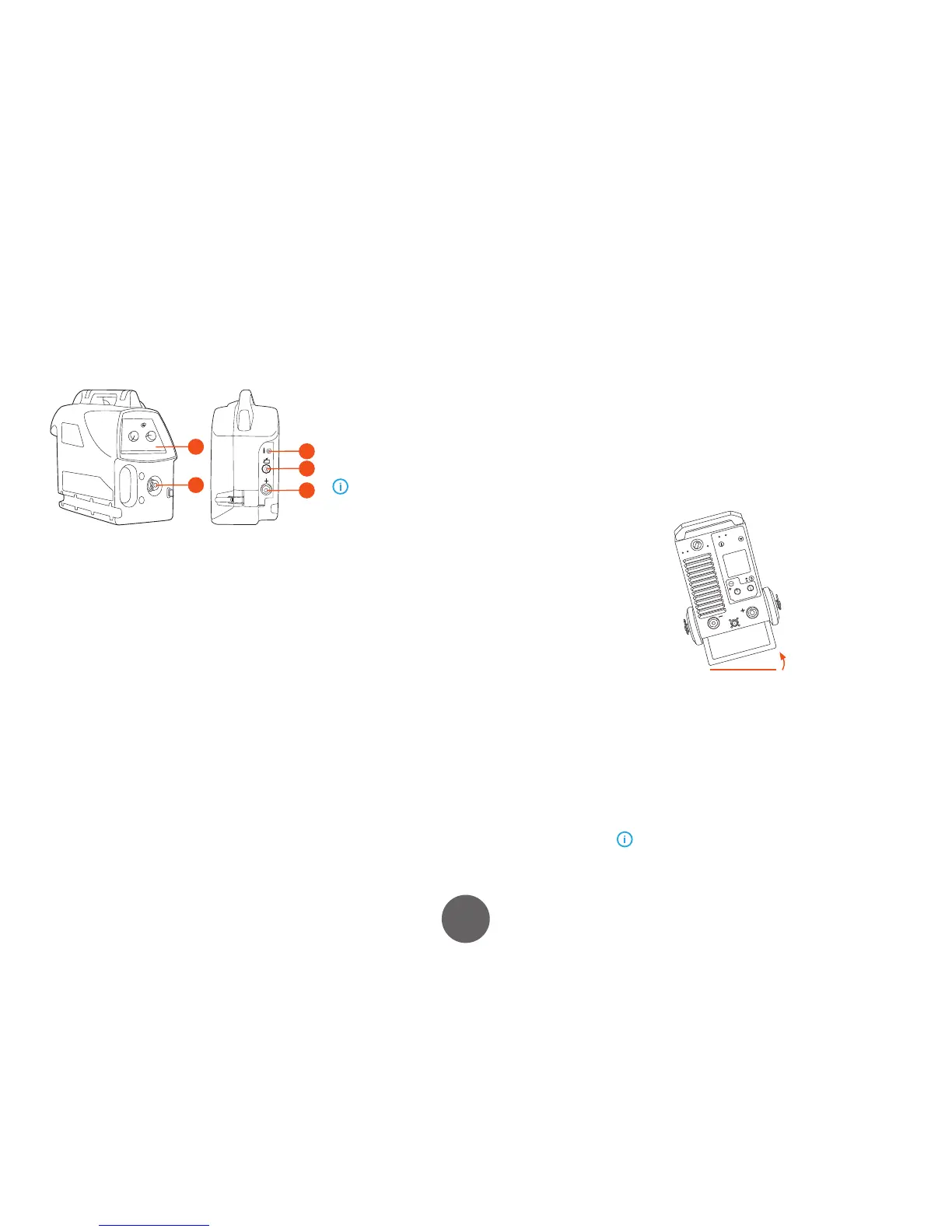

1. Control panel
2. Welding gun connection
3. Shielding gas connection
4. Control cable connection
5. Welding current cable connection
3. INSTALLATION
3.1 Before use
Always make sure before use that the products have not
been damaged during transportation.
Check also that you have received the components you
ordered and the instruction manuals needed. Product
packaging material is recyclable.
When moving the welding machine, always lift it from
the handle, never pull it from the welding gun or other
cables.
Operating environment
This machine is suitable for both indoor and outdoor
use. Always make sure that the air ow in the machine is
unrestricted. The recommended operating temperature
range is –20…+40 °C.
Please read also the Safety Instructions concerning the
operating environment.
3.2 Positioning of the machine
Place the machine on a sturdy, level surface that is dry
and does not allow dust or other impurities to enter the
machines cooling air ow. Preferably site the machine to
a suitable carriage unit so it is above oor level.
Notes for positioning the machine
• The surface inclination may not exceed
15 degrees.
< 15°
• Ensure the free circulation of the cooling air.
There must be at least 20 cm of free space in
front of and behind the machine for cooling air
circulation.
• Protect the machine against heavy rain and
direct sunshine.
The machine is not allowed to be operated in the rain
as the protection class of the machine, IP23S, allows
preserving and storing outside only.
Never aim the spray of sparks from a grinding ma-
chine toward the equipment.
