Connection/Installation
99English
9
Accessory 8 : GPS Antenna
(DDX9020DABS / DDX920WDABS /
DMX8520DABS only)
Use the supplied GPS antenna. Using the GPS
antenna other than the supplied one may
cause a drop in positioning accuracy.
10
Accessory 4 : Bluetooth Microphone
11
Accessory 0 : Steering remote harness
Connect to vehicle’s steering remote harness.
Contact your KENWOOD dealer for details.
Indonesia models / DDX9020DABS /
DMX8520DABS / DDX8020S / DMX8020S:
Except Indonesia models / DDX9020DABS /
DMX8520DABS / DDX8020S / DMX8020S:
C21 C22 C23
Pin Color and function
C21 Light green/Red Input 1
C22 Purple/Red Input 2
C23 Gray/Red Ground
12
Rear view camera input (Yellow) *
2
13
Front view camera/ Dashboard camera input
(Yellow). *
3
(DDX9020DABS / DDX920WDABS /
DMX8520DABS only)
Front view camera input (Yellow).
(DDX8020S / DDX820WS / DMX8020S /
DMX820WS only)
14
Visual Output (Yellow)
*1 The external navigation unit is not available
on Indonesia models.
*2 Connect an HD camera to Rear view
camera input terminal to use HD video.
(DDX9020DABS / DDX920WDABS only)
*3 Connect an HD camera to Front view camera/
Dashboard camera input terminal to use HD
video. (DDX9020DABS / DDX920WDABS only)

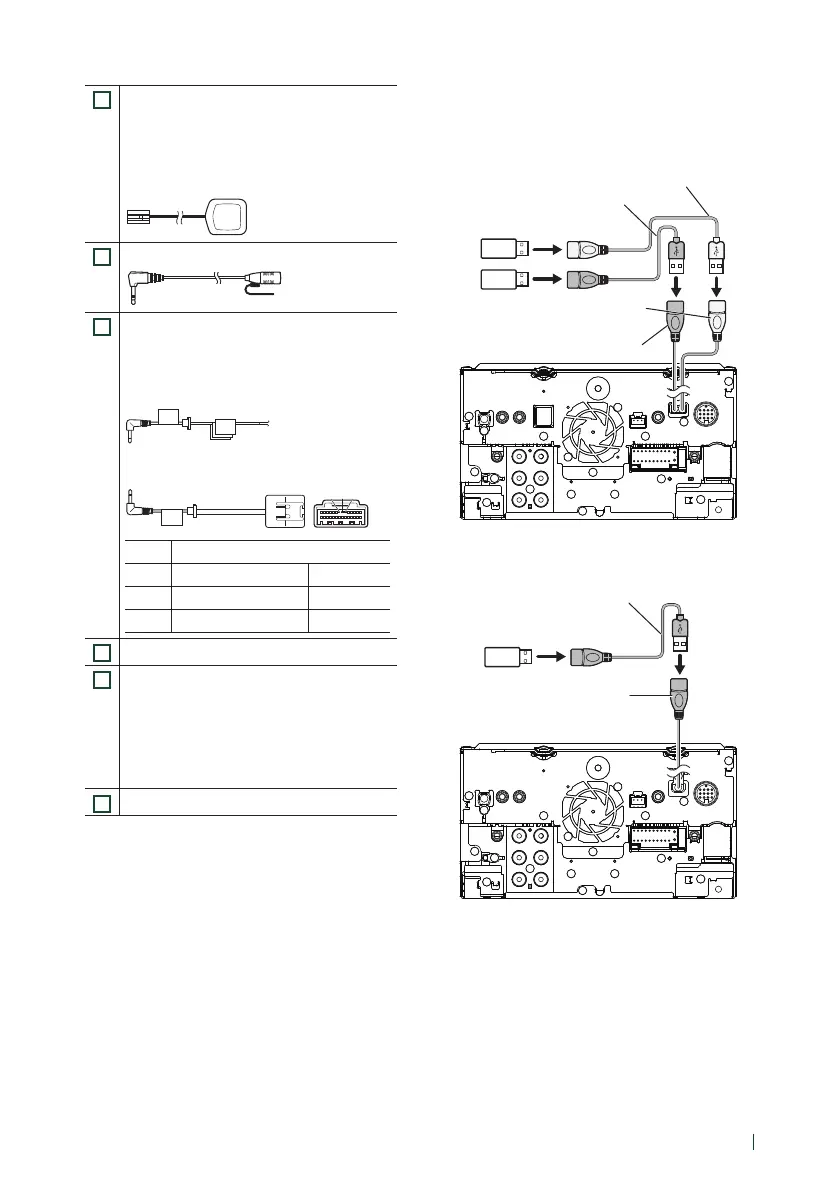

Ñ Connecting a USB device
● DDX9020DABS / DDX920WDABS /
DMX8520DABS
USB device
[2]
USB (Gray) terminal
[1]
USB (Black) terminal
[1]
Accessory 2 (Black) (1 m)
[3]
Accessory 3 (Gray) (1 m)
[3]
● Except DDX9020DABS / DDX920WDABS /
DMX8520DABS
USB device
[2]
USB (Black) terminal
[1]
Accessory 2 (Black) (1 m)
[3]
[1]
USB maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
[3]
See Securing the USB extension cable
(P.100).
