Connection/Installation
100
Ñ Securing the USB extension
cable
Secure the USB extension cable with insulating
tape or the like so that its connectors are not
disconnected.

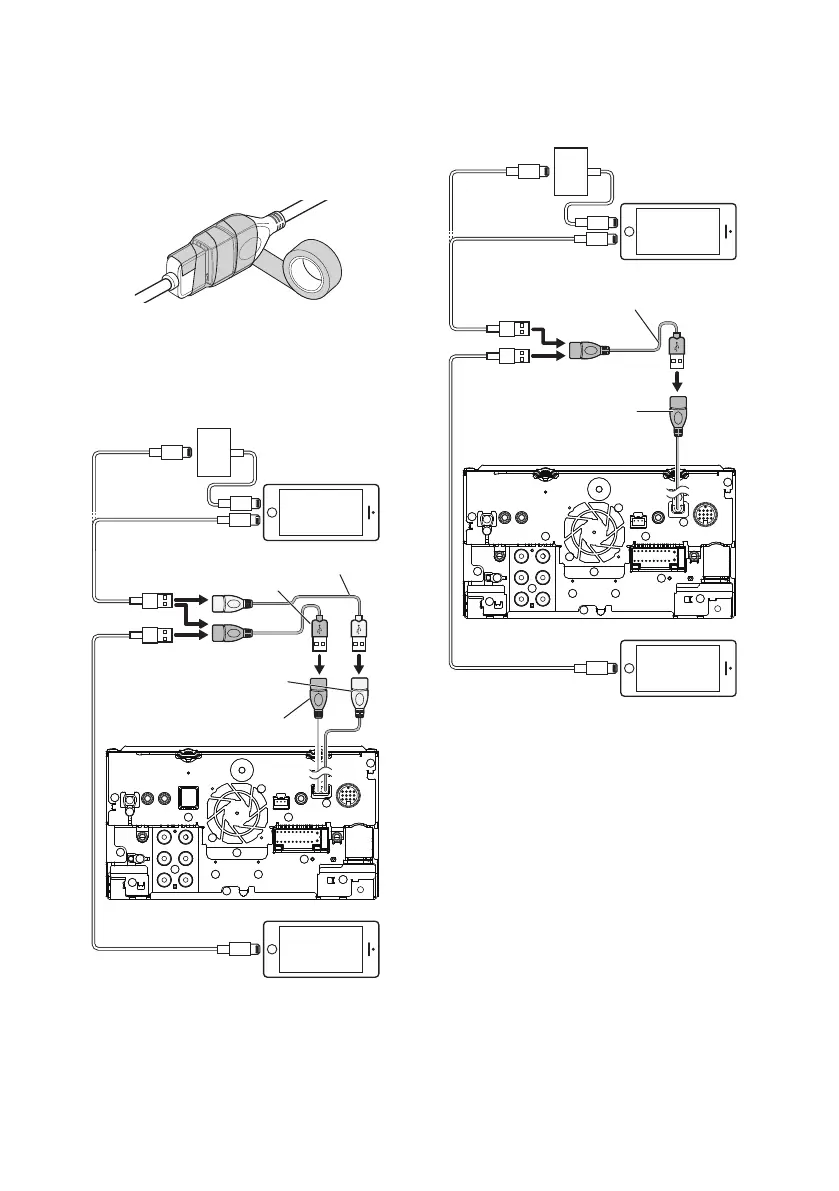

Ñ Connecting an iPod/iPhone
● DDX9020DABS / DDX920WDABS /
DMX8520DABS
KCA-iP103 (0.8m)
[3]
KCA-iP103 (0.8m)
[3]
KCA-iP103 (0.8m)
[3]
iPod/iPhone
[2]
iPhone (with Apple CarPlay)
[2]
USB (Gray) terminal
[1] [5]
USB (Black) terminal
[1]
Accessory 2 (Black) (1 m)
[4]
Accessory 3 (Gray) (1 m)
[4]
KCA-HD100
(1.8 m)
[3]
Lightning Digital AV
Adapter
[2]
● Except DDX9020DABS / DDX920WDABS /
DMX8520DABS
KCA-iP103 (0.8m)
[3]
KCA-iP103 (0.8m)
[3]
KCA-iP103 (0.8m)
[3]
iPod/iPhone
[2]
iPhone (with Apple CarPlay)
[2]
USB (Black) terminal
[1]
Accessory 2 (Black) (1 m)
[4]
Lightning Digital AV
Adapter
[2]
[1]
USB maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
[3]
Optional accessory
[4]
See Securing the USB extension cable
(P.100).
[5]
USB (Gray) terminal does not support USB
Mirroring.
