10
Source Icon change
When there are more than 7 sources Items,
[ ] is displayed.
The selectable source icons are switched in order
to touch [ ].
Switching to the Setup Screen
Touch [ SET UP ] to switch the setup menu
screen. <see p.11>
Canceling the Menu Screen
Touch [ ] to switch to the control screen for the
current source.
When using for the first time, the menu screen
appears.
Switching to the Sound Effect Setting
Menu Screen
Touch [ SOUND EFFECT ] to switch the sound
effect menu screen. <see p.43>
You cannot operate when the standby mode is
selected.
Switching to the Source Control Screen
Touch the source icons to switch the source
control screen as follows:
: Switching to the FM/AM tuner control
screen.<see p.28>
: Switching to the TV (or video) control
screen.<see p.26>
:Switching to the built-in DVD/VCD/CD player
control screen.<see p.34>
:Switching to the external CD player control
screen.<see p.37>
<When the CD player is connected>
: Switching to the disc(CD) changer control
screen.<see p.37>
<When the CD changer is connected>
:Switching to the disc(MD) changer control
screen.<see p.37>
<When the MD changer is connected>
: Switching to the weather band tuner control
screen.<see p.41>
<When the KTC-WB100 is connected>
: Switching to the DAB tuner control screen.
<When the DAB tuner is connected>
(Refer to the DAB tuner's instruction manual
for DAB controls )
:Switching to the AUX mode screen.
<When the KCA-S210A or CA-1AX is
connected>
: Switching to the standby mode screen.
NOTE
Menu Function
A
C
E
B
A
D
C
E
B

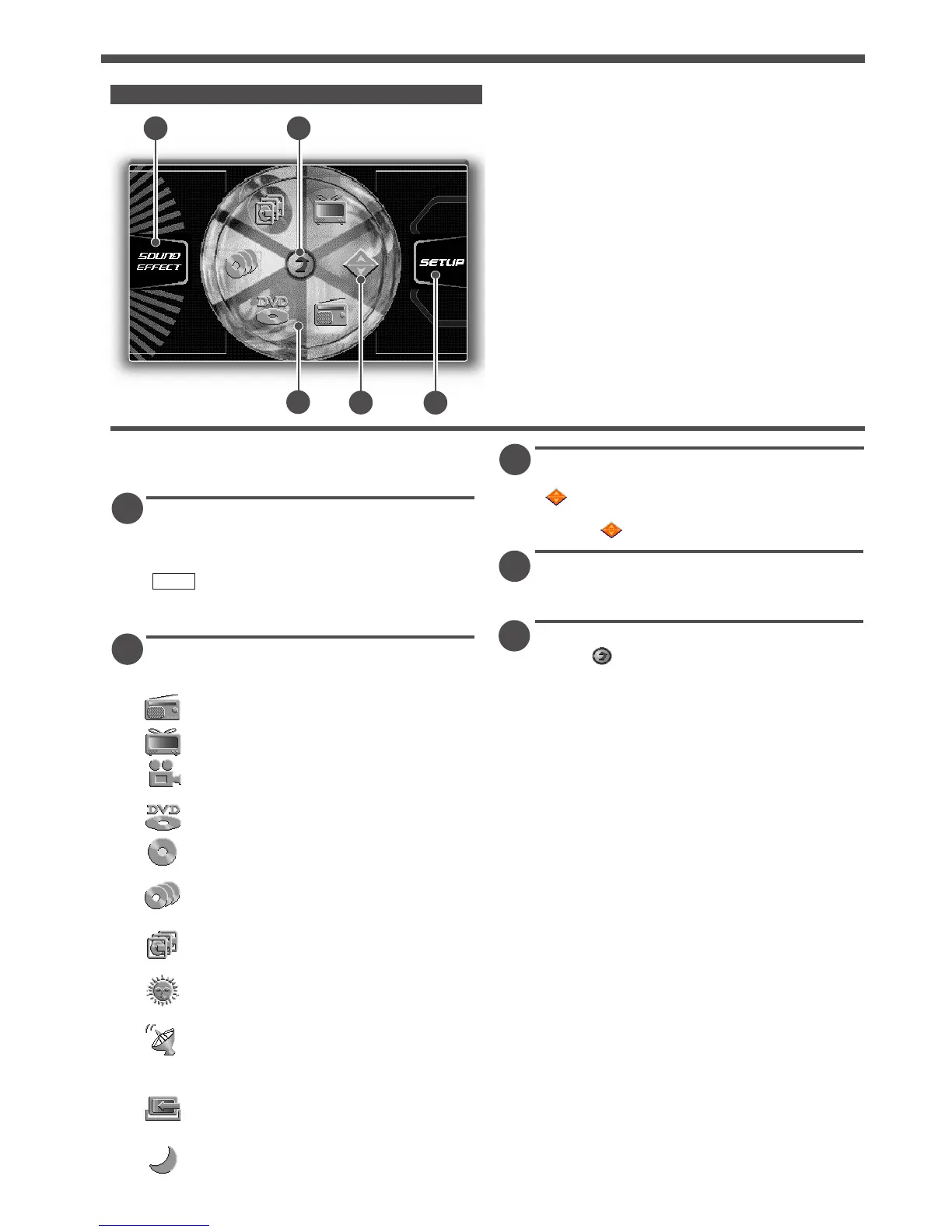

Menu Screen
D
