Kenwood Excelon KVT-911DVD User Manual

Sound Effect Menu Function
43
Switching to the Audio Control Screen
Touch [ Audio ] to switch to the Audio Control
Screen (Page 44).
Switching to the Crossover Network
Setting Screen
Touch [ X'OVER ] to switch to Crossover Network
Setting Screen (Page 46).
Switching to the Crossover Network
Setting Screen
<When the KDS-P900/P901 is connected>
Touch [ X'OVER ] to switch to Crossover Network
Setting Screen (Page 50).
Switching to the Position Setting
Screen
<When the KDS-P900/P901 is connected>
Touch [ POSI ] to switch to the Position Setting
Screen (Page 48).
Switching to the Channel Level Setting
Screen
<When the KDS-P900/P901 is connected>
Touch [ CH.LEV ] to switch to the Channel Level
Setting screen (Page 49).
Switching to the Digital Effect Setting
Screen
<When the KDS-P900/P901 is connected>
Touch [ D.EFFECT ] to switch to the Digital Effect
Setting Screen (Page 47).
Switching to the Parametric Equalizer
Screen
<When the KDS-P900/P901 is connected>
Touch [ P-EQ ] to switch to the Parametric
Equalizer Screen (Page 52).
Ending the Sound Effect Menu Screen
Touch this icon to return to the Menu Screen.
C
B
D
E
A
F
G
D
E
B
A
C
G
F

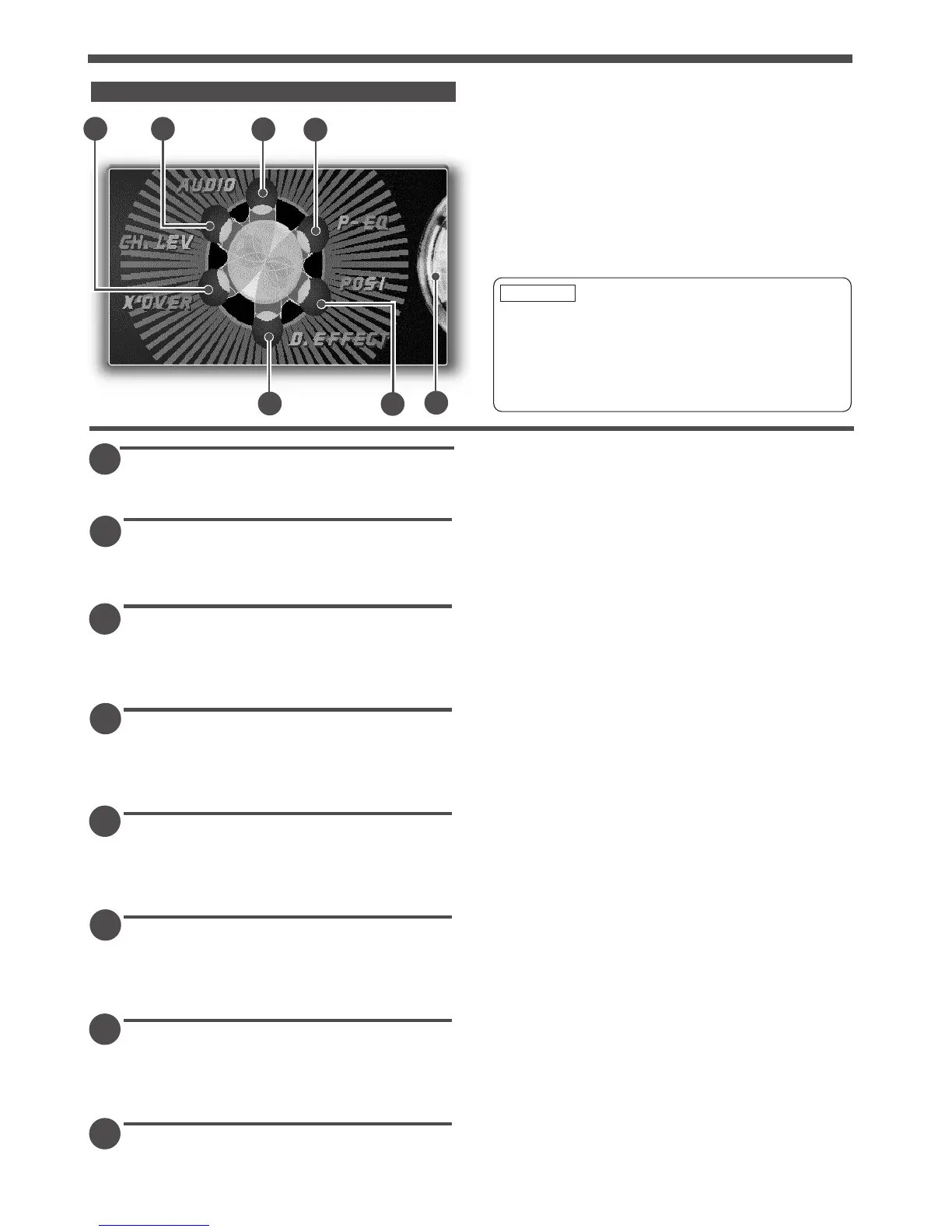

Sound Effect Menu Screen
A
You cannot operate the Digital Effect Setting
Screen, Position Setting Screen, Crossover
Network Setting Screen and Parametric Equalizer
Screen when the "2zone" function is set to "ON"
on the System Setup Screen (see page 12) or the
"Noise" function is set to "ON" on the Channel
Level Setting Screen (see page 49).
CAUTION

Kenwood Excelon KVT-911DVD Specifications

Power

operating voltage	14.4 V DC
consumed current	10 A
tv antenna unit operating voltage	12 V
tv antenna unit consumed current	1.0 A

Operating Environment

operational temperature range	–10°C to +60°C
storage temperature range	–20°C to +85°C

Monitor Specifications

picture size	6.5 inches wide
display size	142.6(W) × 80.7(H) mm
number of pixels	336.960 pixels
effective pixels	99.99%

Audio Specifications

maximum output power	45 W x 4
full bandwidth power	22 W x 4
preout level	4500mV/10kΩ
preout impedance	≤ 600 Ω

Weight and Dimensions

monitor unit size	180(W) × 50(H) × 185(D) mm
monitor unit installation size	178(W) × 50(H) × 165(D) mm
receiver unit size	225(W) × 40(H) × 168(D) mm
monitor unit weight	2.0 kg
receiver unit weight	1.4 kg
tv antenna unit size	50(W) × 14.5(H) × 500(D) mm
tv antenna unit mass	300 g
