Kenwood Excelon KVT-911DVD User Manual

57
1. To prevent short circuits, remove the key from the
ignition and disconnect the · terminal of the battery.
2. Make the proper input and output cable connections for
each unit.
3. Connect the wiring harness wires in the following order:
ground, battery, ignition.
4. Connect the wiring harness connector to the unit.
5. Install the unit in your car.
6. Reconnect the · terminal of the battery.
7. Press the reset button. (See p. 4)
• If your car's ignition does not come with an ACC
position, connect the ignition wires to a power source
that can be turned on and off with the ignition key. If
you connect the ignition wire to a power source that
receives a constant voltage supply, as with battery
wires, the battery may die.
• If the fuse blows, first make sure that the wires have
not caused a short circuit, then replace the old fuse
with one with the same rating.
• Do not let unconnected wires or terminals touch
metal on the car or anything else conducting
electricity. To prevent short circuits do not remove the
caps from unused terminals or from the ends of the
unconnected wires.
• After the unit is installed, check whether the brake
lamps, blinkers, wipers, etc. on the car are working
properly.
• Insulate unconnected wires with vinyl tape or other
similar material.
• Thoroughly wipe away oil and other dirt from the
installation surface.
Please avoid installation on uneven surfaces.
•Mount the unit so that the mounting angle is 30° or
less.
• Do not install the receiver unit under the carpet.
Otherwise heat build-up occurs and the unit may be
damaged.
2CAUTION
Installation Procedure

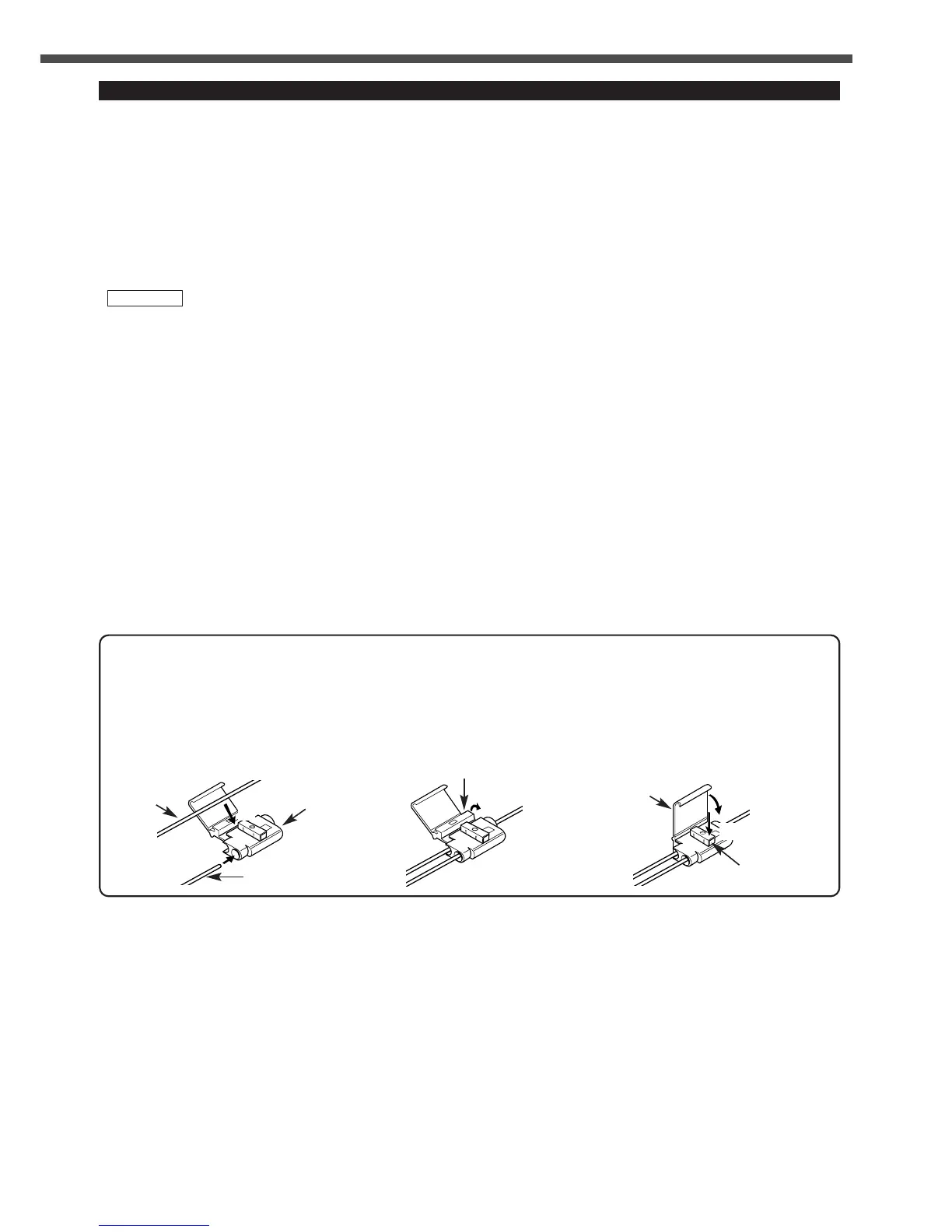

Using the Relay Connector (Accessory G)
Plug the vehicle's harness into
the relay connector.
Plug the parking brake detection
wire into the relay connector.
Lock the cable clamp. Press down using pliers until
the conductive metal is even
with the plastic surface.
Lock the lid.
5
43
2
1
1
2
Detection wire
Vehicle
harness
3
Relay
connector
4
5
Cable clamp
Lid
Conductive metal

Kenwood Excelon KVT-911DVD Specifications

Power

operating voltage	14.4 V DC
consumed current	10 A
tv antenna unit operating voltage	12 V
tv antenna unit consumed current	1.0 A

Operating Environment

operational temperature range	–10°C to +60°C
storage temperature range	–20°C to +85°C

Monitor Specifications

picture size	6.5 inches wide
display size	142.6(W) × 80.7(H) mm
number of pixels	336.960 pixels
effective pixels	99.99%

Audio Specifications

maximum output power	45 W x 4
full bandwidth power	22 W x 4
preout level	4500mV/10kΩ
preout impedance	≤ 600 Ω

Weight and Dimensions

monitor unit size	180(W) × 50(H) × 185(D) mm
monitor unit installation size	178(W) × 50(H) × 165(D) mm
receiver unit size	225(W) × 40(H) × 168(D) mm
monitor unit weight	2.0 kg
receiver unit weight	1.4 kg
tv antenna unit size	50(W) × 14.5(H) × 500(D) mm
tv antenna unit mass	300 g
