PBC(Playback Control) Function On/Off
for VCD version 2.0
Each time you touch [ PBC ], the mode switches
as follows:
" ON "
PBC function is turned on
" OFF "
PBC function is turned off
Setting the Optical Output Mode
Converts linear PCM (LPCM) voice signals
recorded on the DVD disc to down sampling 48
kHz digital signals and outputs them from the
optical cable.
Each time you touch [ Digital Out ], the mode
switches as follows:
When playing DTS-encoded (CDs), excessive
noise may be exhibited from the analog stereo
outputs. To avoid possible damage to audio
system, the consumer should take proper pro-
cautions when the analog stereo outputs of the
DVD player is connected to an amplification
system. To enjoy DTS Digital Surround (TM)
playback, an external 5.1 channel DTS Digital
Surround (tm) decoder (KDS-P900/P901) system
must be connected to the digital output of the
DVD player.
Switching to the Rating Level (parental
lock) Setting Screen.
Use this function to restrict the viewing of
movies to children of appropriate age levels
only.
Touch [ Parental ] to switch to rating level setup
screen. <see p.20>
CAUTION
H
G I

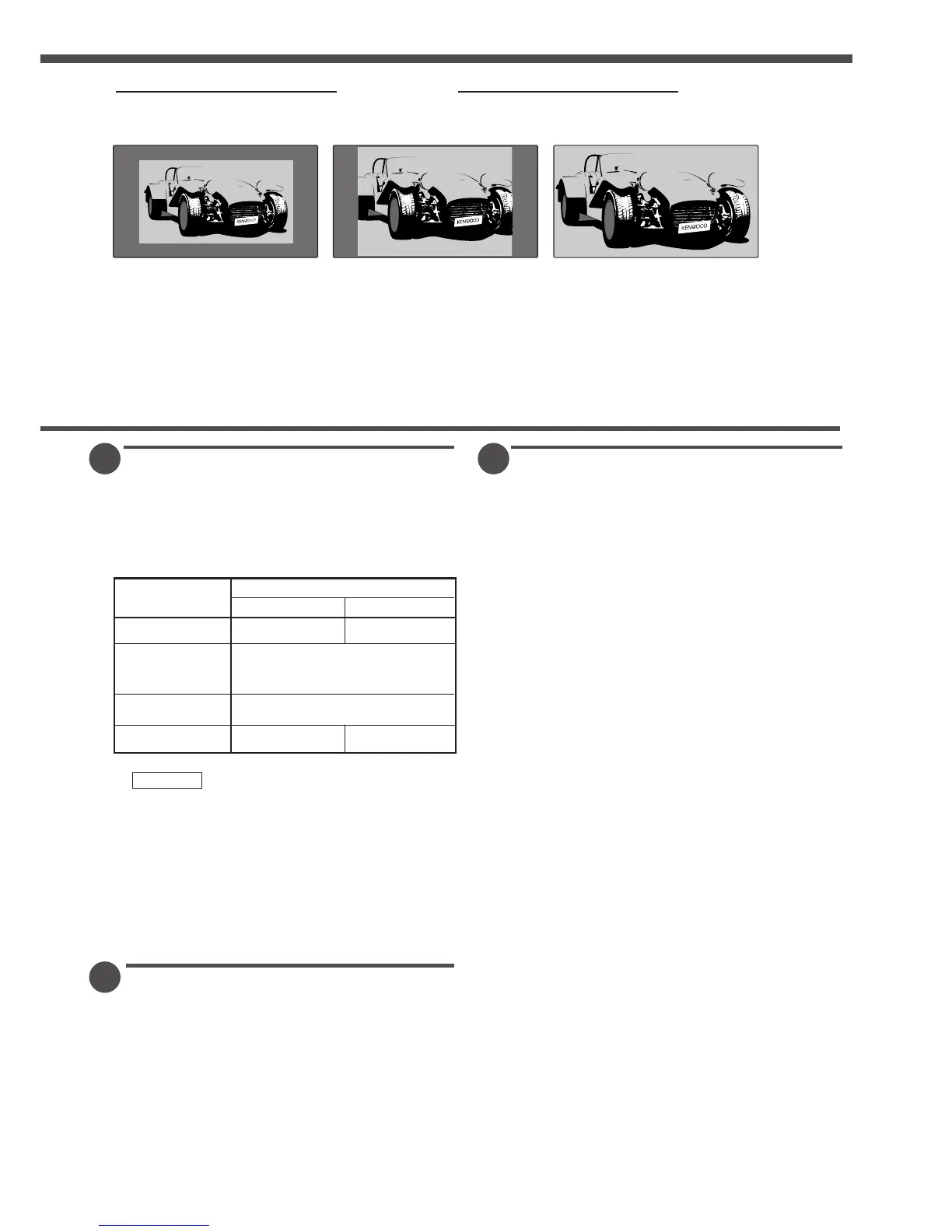

" 16:9 "
" 4:3 PS " " 4:3 LB "
Screen Mode
"PCM"
PCM48 kHz /16 bit
Not output
"Stream"
Dolby Digital
DTS
Optical audio out put
Dolby Digital
LPCM(96 kHz)
LPCM(48 kHz)
MPEG
DTS
With copy grade:PCM 48 kHz /16 bit
With out copy grade:
PCM 48/44.1 kHz /24,20,16 bit
PCM 48 kHz,44.1 kHz /16 bit
Audio recording
format

Kenwood Excelon KVT-911DVD Specifications

Power

operating voltage	14.4 V DC
consumed current	10 A
tv antenna unit operating voltage	12 V
tv antenna unit consumed current	1.0 A

Operating Environment

operational temperature range	–10°C to +60°C
storage temperature range	–20°C to +85°C

Monitor Specifications

picture size	6.5 inches wide
display size	142.6(W) × 80.7(H) mm
number of pixels	336.960 pixels
effective pixels	99.99%

Audio Specifications

maximum output power	45 W x 4
full bandwidth power	22 W x 4
preout level	4500mV/10kΩ
preout impedance	≤ 600 Ω

Weight and Dimensions

monitor unit size	180(W) × 50(H) × 185(D) mm
monitor unit installation size	178(W) × 50(H) × 165(D) mm
receiver unit size	225(W) × 40(H) × 168(D) mm
monitor unit weight	2.0 kg
receiver unit weight	1.4 kg
tv antenna unit size	50(W) × 14.5(H) × 500(D) mm
tv antenna unit mass	300 g
