11
Switching the Setup Page
Touch [ ] to switch to the next page.
Touch [ 5 ] to switch to the previous page.
If there is only one setup page it is not displayed.
Canceling the System Setup Screen
Touch this icon to return to the menu screen.
NOTE
Selecting to the DAB Tuner Setup
Screen
Touch [ DAB ] to switch the DAB Tuner Setup
Screen.
<When the DAB tuner is connected>
Refer to the DAB tuner's instruction manual for
DAB tuner controls.
Selecting to the Clock Adjustment
Screen
Touch [ Clock ] to switch the Clock Adjustment
Screen. <see p.14>
Selecting to the System Setup Screen
Touch [ System ] to switch the System Setup
Screen. <see p.12>
Selecting to the Code Security Screen
Touch [ Security ] to switch to the Code Security
Screen. <see p.22>
Selecting to the Touch Panel
Adjustment Screen
Touch [ Touch ] to switch to the Touch Panel
Adjustment Screen. <see p.21>
Selecting to the DVD Setup Screen
Touch [ DVD ] to switch to the DVD/VCD Setup
Screen. <see p.16>
Cannot be operated while the DVD/VCD is being
operated. If you want to change the setting, do it
from the DVD/VCD control screen (page 34) in
stop state.
NOTE
NOTE
A
H

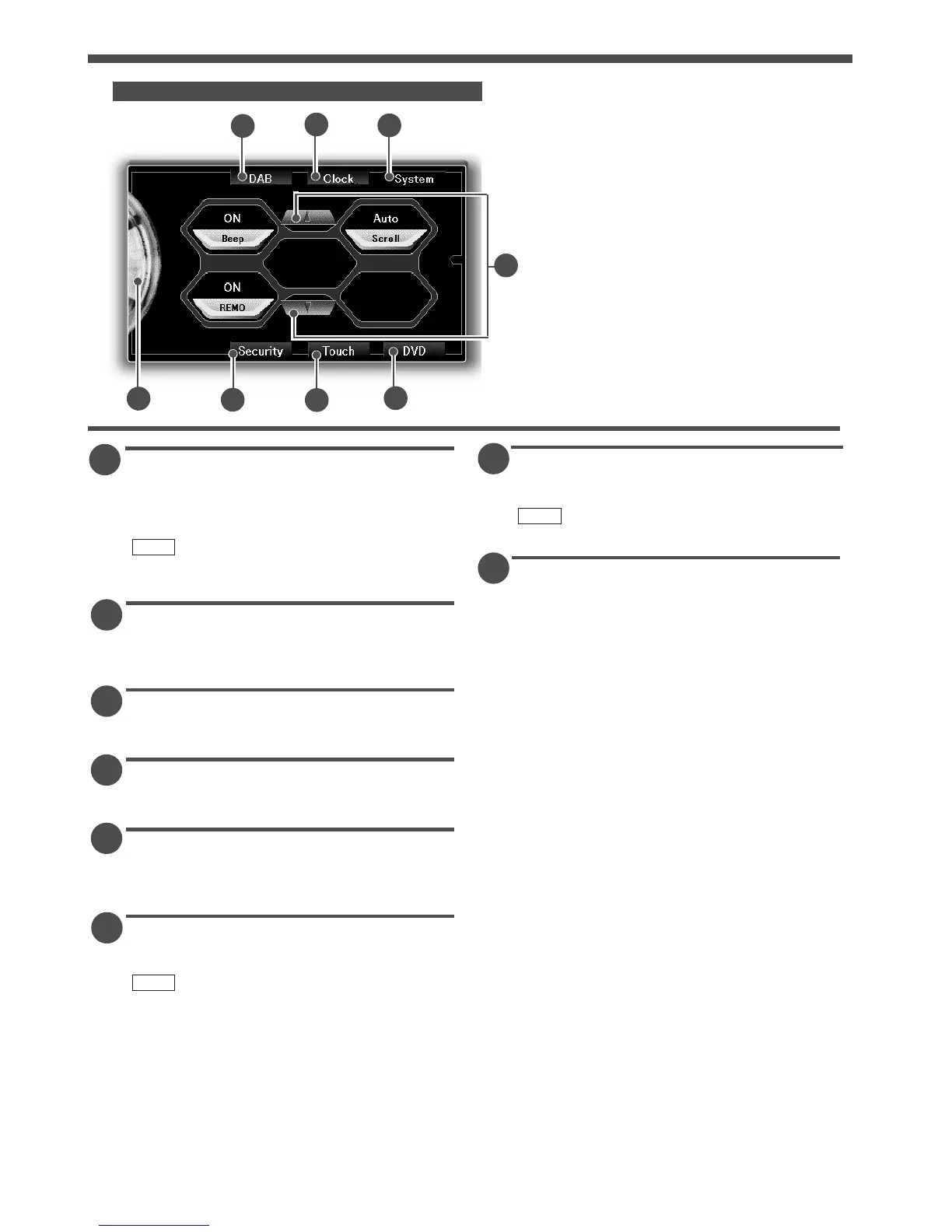

Setup Menu Function
A
B
C
D
B
C
E
F
G
H
D
Setup Screen
E
F
G
