Kenwood Excelon KVT-911DVD User Manual

13

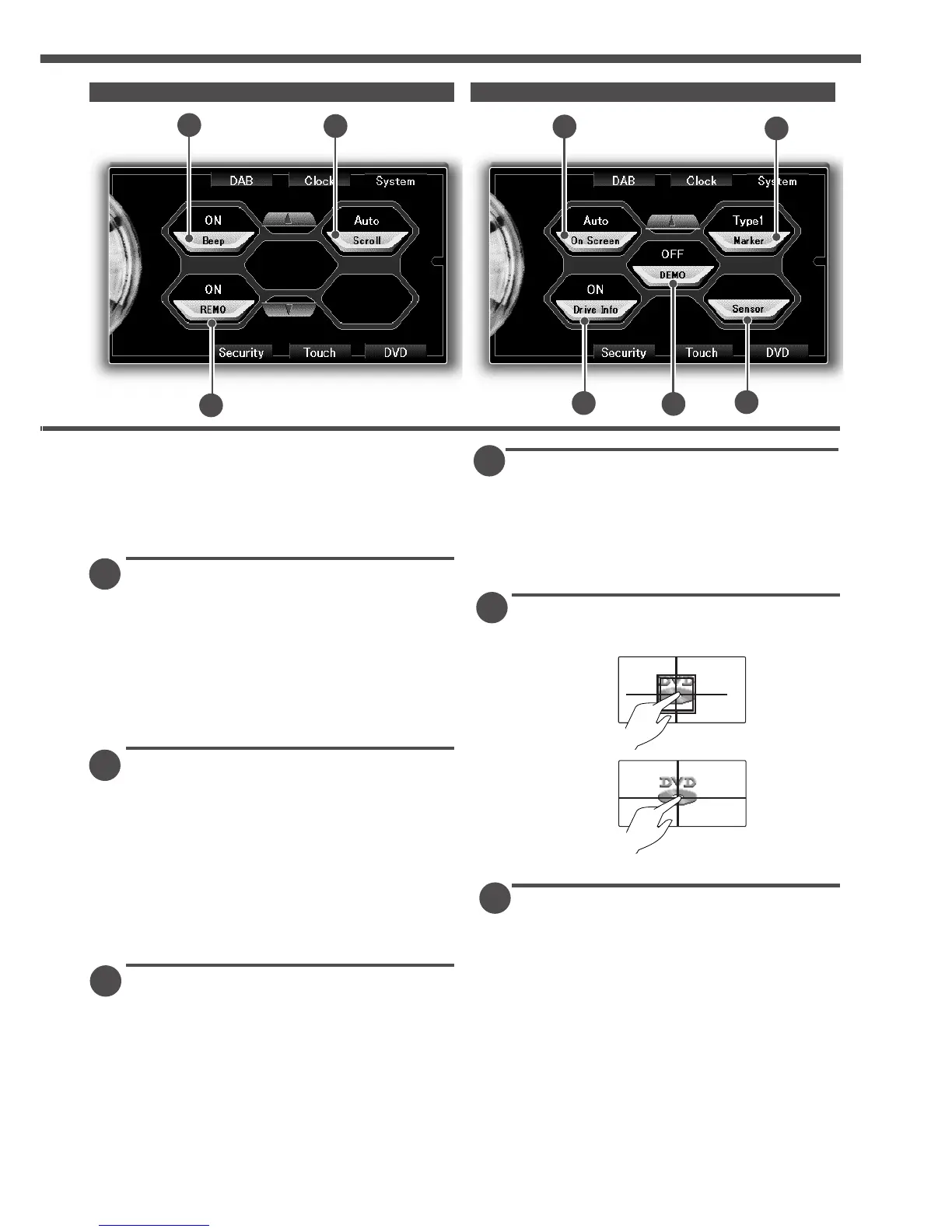

Demonstration Function
Each time you touch [ DEMO ], the mode
switches as follows:
" ON "
The graphic screen’s background mode switches
repeatedly.
" OFF "
the demonstration function is off.
Selecting the Point Marker Type
Each time you touch [ Marker ], the mode
switches as follows:
" Type 1 "
" Type 2 "
" OFF "
No display the point marker.
Switching to the Sensor Box Screen
<When the sensor box unit is connected>
Touch [ Sensor ] to switch the sensor box control
screen. <see p.41>
Each time you touch [ REMO ], the mode
switches as follows:
" ON "
Remote control function is on
" OFF "
Remote control function is off
Setting the Auto Scroll Display Function
This function permits the text to be scrolled
and the entire text to be displayed. Switching
between manual scrolling and automatic
scrolling is permitted.
Each time you touch [ Scroll ], the mode switches
as follows:
" Auto "
Automatic scrolling
" Manual "
Manual scrolling
Setting the On Screen Display Function
Each time you touch [ On Screen ], the mode
switches as follows:
" Auto "
When a button on the main unit or remote control
unit is pressed, or the disc track is changed, the
information is temporarily superimposed on the
picture.
" Manual "
When the lower center of the screen is touched
whilst a TV/video picture is displayed, the
information is temporarily superimposed on the
picture.
Setting tthe Information on the Graphic
Screen
You can set whether or not to display the
information on the graphic screen.
Each time you touch [ Drive Info ], the mode
switches as follows:
" ON "
Information function is on
" OFF "
Information function is off
H
M
F
H
K
J
L
I
System Setup Screen-2 System Setup Screen-3
G
J
M
L
I
K

Kenwood Excelon KVT-911DVD Specifications

Power

operating voltage	14.4 V DC
consumed current	10 A
tv antenna unit operating voltage	12 V
tv antenna unit consumed current	1.0 A

Operating Environment

operational temperature range	–10°C to +60°C
storage temperature range	–20°C to +85°C

Monitor Specifications

picture size	6.5 inches wide
display size	142.6(W) × 80.7(H) mm
number of pixels	336.960 pixels
effective pixels	99.99%

Audio Specifications

maximum output power	45 W x 4
full bandwidth power	22 W x 4
preout level	4500mV/10kΩ
preout impedance	≤ 600 Ω

Weight and Dimensions

monitor unit size	180(W) × 50(H) × 185(D) mm
monitor unit installation size	178(W) × 50(H) × 165(D) mm
receiver unit size	225(W) × 40(H) × 168(D) mm
monitor unit weight	2.0 kg
receiver unit weight	1.4 kg
tv antenna unit size	50(W) × 14.5(H) × 500(D) mm
tv antenna unit mass	300 g
