Kenwood Excelon KVT-911DVD User Manual

Other Source Control Function
41
B

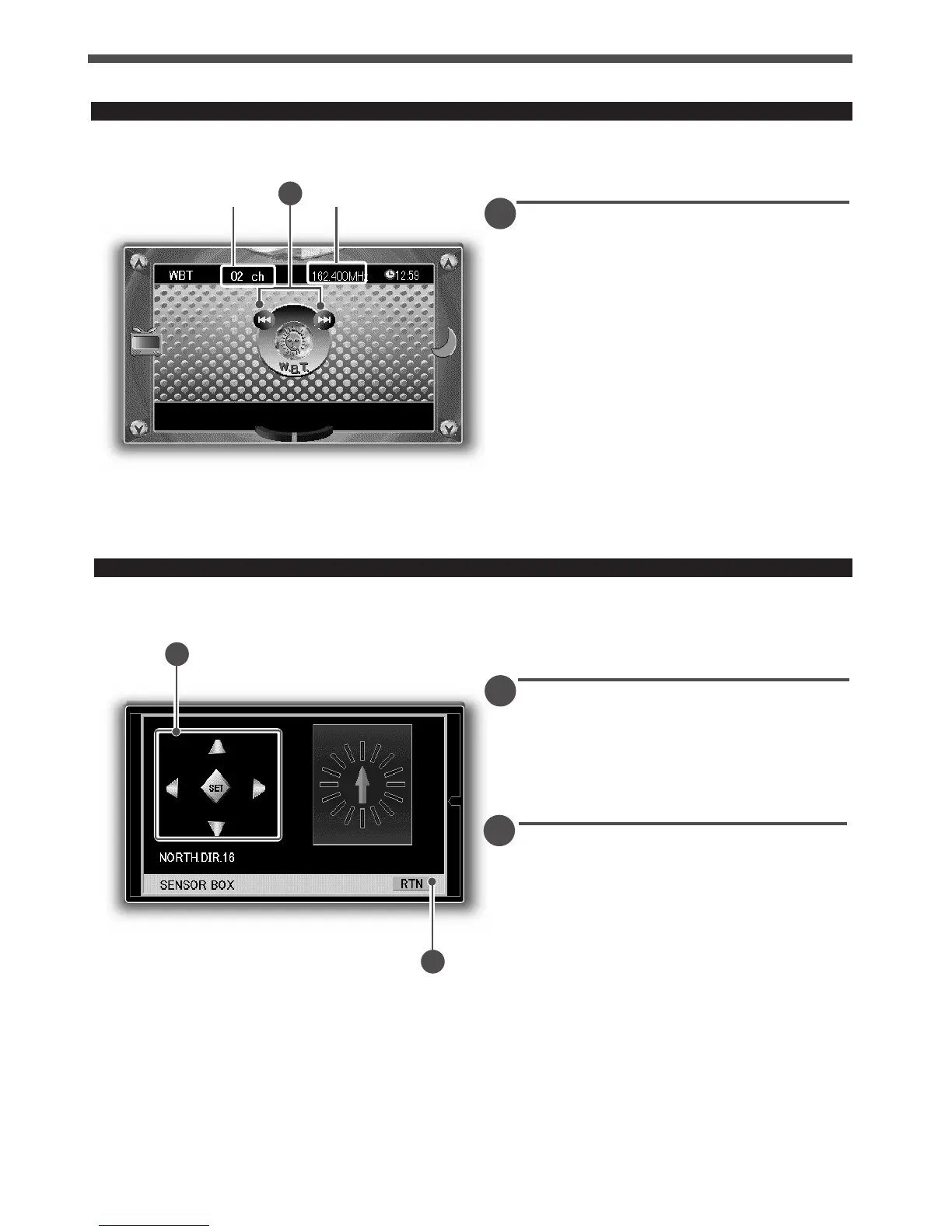

Weather Band Tuner Control Screen
<Refer to the KTC-WB100 instruction manual for details on weather band tuner
functions>
Sensor Box Control Screen
<Refer to the KPA-SS100 or KPA-HD100 instruction manual for details on sensor box
functions>
A
Selecting the Channels
• Touch [ ¢ ] to increase the channel by one
step.
• Touch [ 4 ] to decrease the channel by one
step.
A
A
Setting the Menu
Touch [ SET ] to switch the menu mode.
Touch [ % ] or [ fi ] to select the items.
Touch [ @ ],[ # ] to set the function.
Touch [ SET ] to end menu mode.
Returning to the System setup Screen
Touch [ RTN ] to return to the system setup
screen.
4
3
2
1
A
B
Channel number
Frequency

Kenwood Excelon KVT-911DVD Specifications

Power

operating voltage	14.4 V DC
consumed current	10 A
tv antenna unit operating voltage	12 V
tv antenna unit consumed current	1.0 A

Operating Environment

operational temperature range	–10°C to +60°C
storage temperature range	–20°C to +85°C

Monitor Specifications

picture size	6.5 inches wide
display size	142.6(W) × 80.7(H) mm
number of pixels	336.960 pixels
effective pixels	99.99%

Audio Specifications

maximum output power	45 W x 4
full bandwidth power	22 W x 4
preout level	4500mV/10kΩ
preout impedance	≤ 600 Ω

Weight and Dimensions

monitor unit size	180(W) × 50(H) × 185(D) mm
monitor unit installation size	178(W) × 50(H) × 165(D) mm
receiver unit size	225(W) × 40(H) × 168(D) mm
monitor unit weight	2.0 kg
receiver unit weight	1.4 kg
tv antenna unit size	50(W) × 14.5(H) × 500(D) mm
tv antenna unit mass	300 g
