Kenwood Excelon KVT-911DVD User Manual

Returning to the Source Control Screen
Touch [ RTN ] to return to the Source Control
Screen.
Adjusting the Balance Levels
• Each time you touch [ ], the sound in the left
channel is emphasized.
• Each time you touch [ ], the sound in the
right channel is emphasized.
Adjusting the Fader Levels
• Each time you touch [ ], the sound in the front
channel emphasized.
• Each time you touch [ ], the sound in the rear
channel emphasized.
Recalling Your Settings of the Crossover
Network/Delay time
<When the KDS-P900/P901 is connected>
Touch [ 1 ] - [ 6 ] for the desired Crossover
network and delay time setting.
Recalling Your Sound Settings
<When the KDS-P900/P901 is not connected>
Touch [ 1 ] - [ 5 ] for the desired sound preset
setting.
<When the KDS-P900/P901 is connected>
Touch [ 1 ] - [ 3 ] for the desired parametric
equalizer setting.
External Amp Control
Adjust the bass boost level of the external
amplifier using the main unit.
Each time you touch [ Amp Ctrl ] to switch the
Bass boost level as follows
" OFF "
Bass boost level is flat.
" MODE1 "
Bass boost level is low (+6dB).
" MODE2 "
Bass boost level is high (+12dB).
Refer to the catalog or instruction manual for
power amplifiers that can be controlled from this
unit.
NOTE
A F
53
D
E
B
C
A
D
C
F
E
B

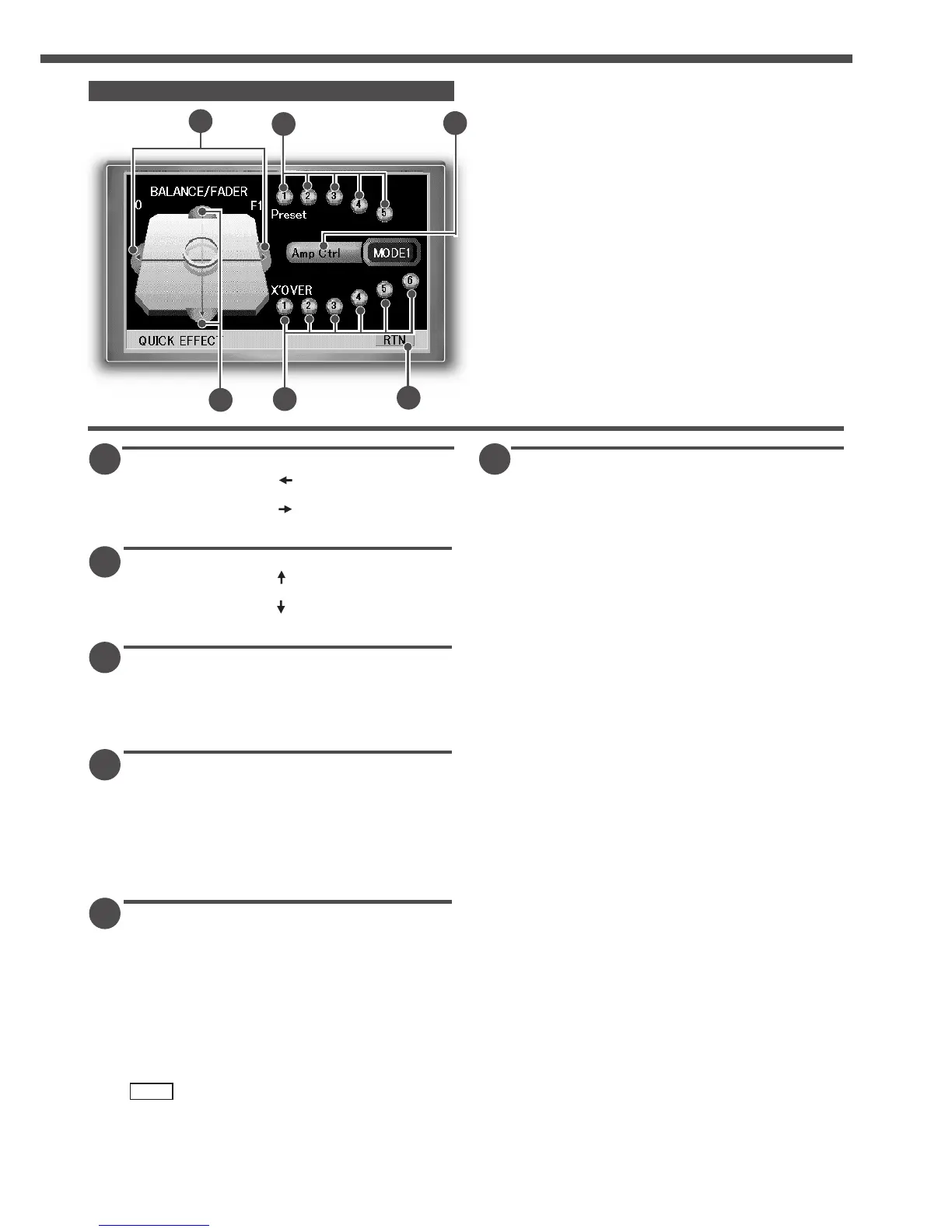

Quick Effect Screen

Kenwood Excelon KVT-911DVD Specifications

Power

operating voltage	14.4 V DC
consumed current	10 A
tv antenna unit operating voltage	12 V
tv antenna unit consumed current	1.0 A

Operating Environment

operational temperature range	–10°C to +60°C
storage temperature range	–20°C to +85°C

Monitor Specifications

picture size	6.5 inches wide
display size	142.6(W) × 80.7(H) mm
number of pixels	336.960 pixels
effective pixels	99.99%

Audio Specifications

maximum output power	45 W x 4
full bandwidth power	22 W x 4
preout level	4500mV/10kΩ
preout impedance	≤ 600 Ω

Weight and Dimensions

monitor unit size	180(W) × 50(H) × 185(D) mm
monitor unit installation size	178(W) × 50(H) × 165(D) mm
receiver unit size	225(W) × 40(H) × 168(D) mm
monitor unit weight	2.0 kg
receiver unit weight	1.4 kg
tv antenna unit size	50(W) × 14.5(H) × 500(D) mm
tv antenna unit mass	300 g
