Kenwood Excelon KVT-911DVD User Manual

21
Adjusting the Touch Position
The touch panel can be adjusted if the position
touched and the operation performed do not
match.
Accurately touch the mark at the lower left.
Accurately touch the mark at the upper right.
When the mark at the upper right is touched,
the adjustment is completed and the system
setup menu screen reappears.
• If [ CANCEL ] is touched without touching the
button at the lower left, the adjustment is
cancelled and the screen that was set before
switching to the system setup menu reappears.
• If [ CANCEL ] is touched after touching the
button at the lower left, the button at the lower
left reappears.
• If [ RESET ] is touched, the settings are reset to
the factory defaults and the setup menu screen
reappears.
NOTE
2
1

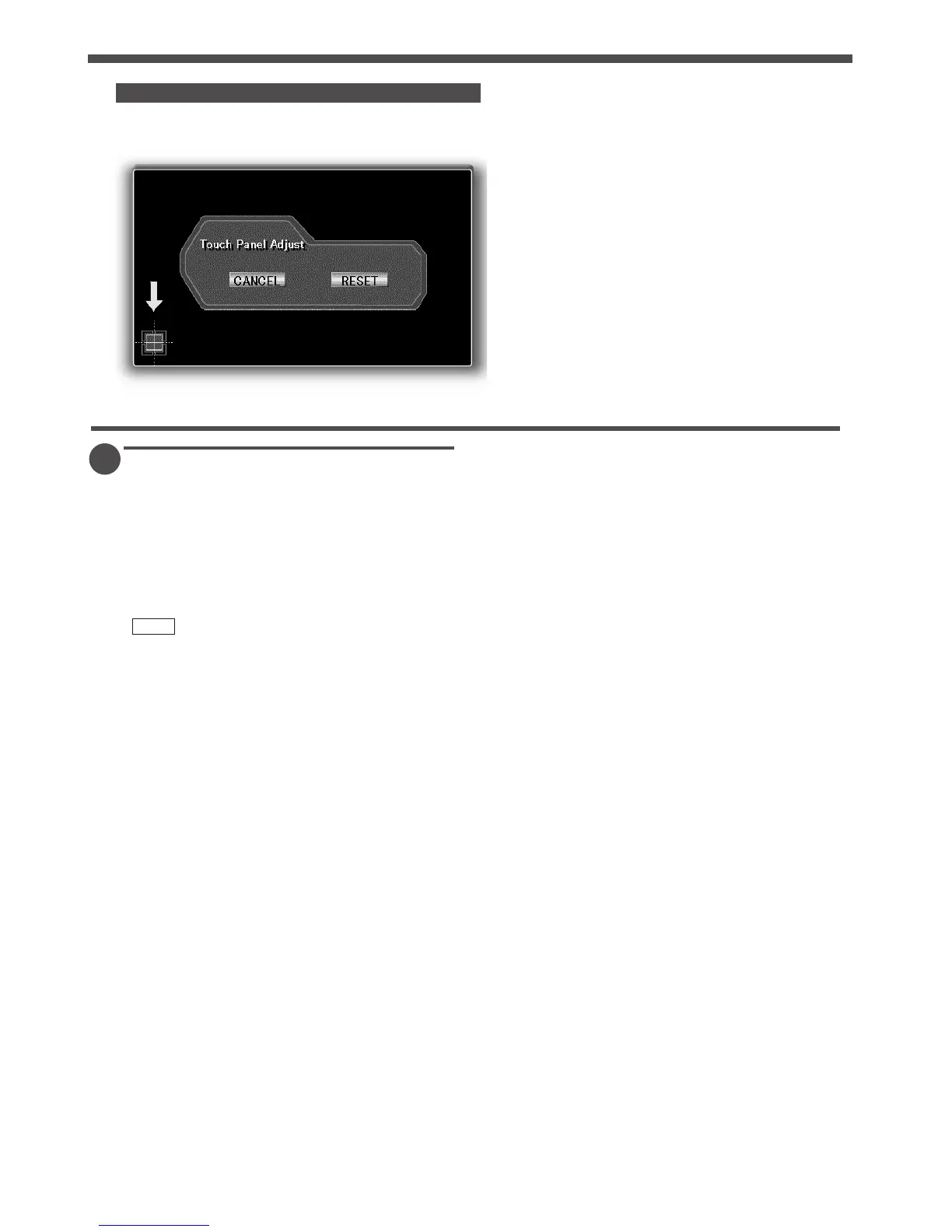

Touch Panel Adjustment Function
Touch Panel Adjustment Screen

Kenwood Excelon KVT-911DVD Specifications

Power

operating voltage	14.4 V DC
consumed current	10 A
tv antenna unit operating voltage	12 V
tv antenna unit consumed current	1.0 A

Operating Environment

operational temperature range	–10°C to +60°C
storage temperature range	–20°C to +85°C

Monitor Specifications

picture size	6.5 inches wide
display size	142.6(W) × 80.7(H) mm
number of pixels	336.960 pixels
effective pixels	99.99%

Audio Specifications

maximum output power	45 W x 4
full bandwidth power	22 W x 4
preout level	4500mV/10kΩ
preout impedance	≤ 600 Ω

Weight and Dimensions

monitor unit size	180(W) × 50(H) × 185(D) mm
monitor unit installation size	178(W) × 50(H) × 165(D) mm
receiver unit size	225(W) × 40(H) × 168(D) mm
monitor unit weight	2.0 kg
receiver unit weight	1.4 kg
tv antenna unit size	50(W) × 14.5(H) × 500(D) mm
tv antenna unit mass	300 g
