Preparation section

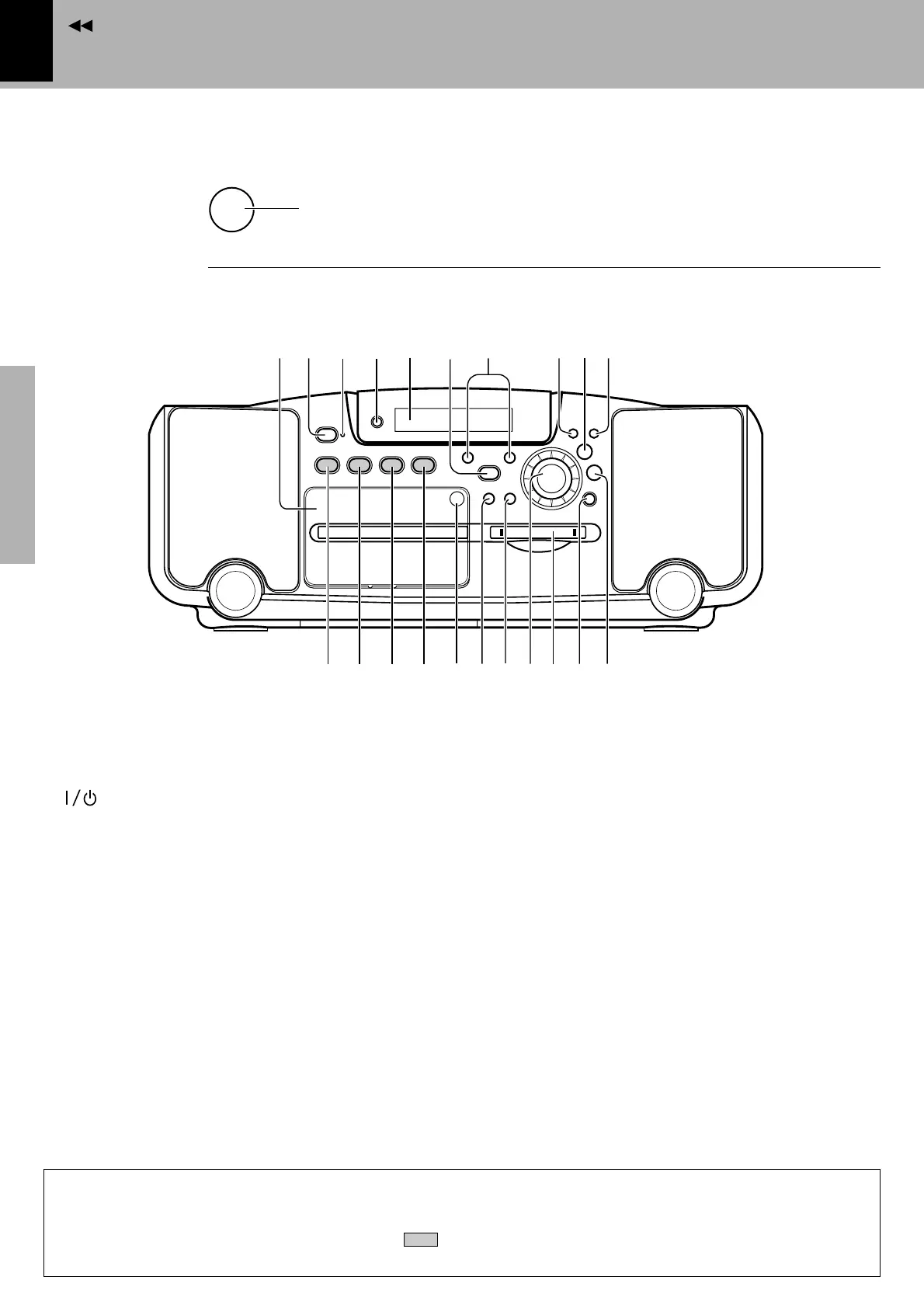

Controls and indicators
Contents
Controls and indicators
1 Cassette holder ¢
2
(POWER) key 9
3 “STANDBY/TIMER” indicator 9u
4 Remote sensor
5 Display
6 (7) STOP key (CD/MD/TAPE/TUNING MODE)
9$(∞§
7 4 / ¢ key (CD/MD/TAPE/tuner tuning)
$(∞
8 “SOUND” key !
9 “MENU” key 79
0 “REPEAT” key ^
! “TUNER FM/AM” key §
@ “CD 6” key #
# “MD 6” key *
$ “TAPE `” key ¢
% PUSH OPEN button ¢
^ “TAPE REC” key º
& “MD REC” key •
* “VOLUME/MULTI CONTROL” knob
790
( Mini Disc insertion slot
) EJECT (0) key (
¡ “SET/Demo” key 479
About the one-touch operation function
This unit incorporates the one-touch operation function for the user's convenience.
With this function, pressing any key enclosed in (!~$) while the unit is in standby mode immediately start
playback (or reception).
PUSH OPEN button #
P
U
S
H
O
P
E
N
0
P
U
S
H
O
P
E
N
0
12 3 4 5 7
6
890
!@#$%^&*()¡
Top panel
Front panel
Main unit

Kenwood MDX-F1 Specifications

Amplifier Section

rated output power during STEREO operation	4 W + 4 W
speaker unit	80 mm, cone type

Tuner Section

FM tuning frequency range	87.5 MHz ~ 108 MHz
MW (AM) tuning frequency range	531 kHz ~ 1, 602 kHz

General Specifications

power consumption	38 W
standby power consumption	0.3 W
dimensions (W x H x D)	464 mm x 182 mm x 243 mm
weight (net)	5.4 kg
