Preparation section

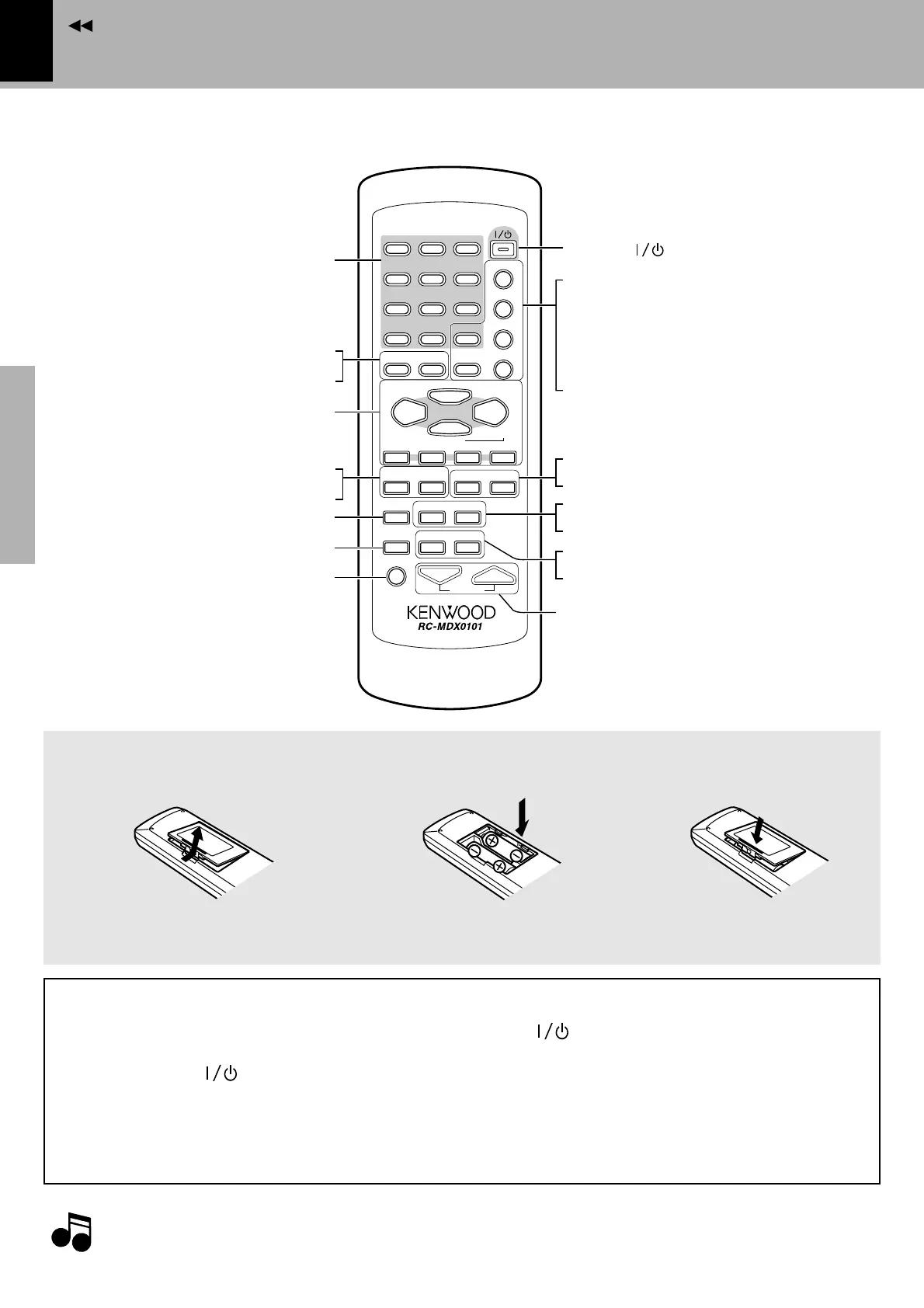

Controls and indicators
Contents
The keys on the remote control unit with the same names as on the main unit have the same function as the
keys on the main unit.
Operation of remote control unit
¢
123
TITLE SEARCH
CLEAR
/DELETE FM/AM TAPE EQ.
14 1
66
7
SET ENTER
VOLUME
MD TAPE
STOP
AUTO/MANU.
CD
456
789
+10 0 PGM
QUICK MOVE
POWER
TITLE INPUT
TRACK EDIT
TONE
RANDOM TAPE O.T.E. MD O.T.E.
TIME
DISPLAY
DISPLAY
/CHARAC.
P.CALLTUNING
SOUND SLEEP TIMER
2 3
Loading batteries
3 Close the cover.1 Remove the cover. 2 Insert batteries.
÷ Insert two R6 (“AA”-size) batteries following
the polarity indications.
Operation
÷ When pressing more than one remote control keys successively, press the keys securely by leaving an interval of 1
second or more between keys.
÷ The standard remote control range is within about 6 meters from the main unit front panel and within 30 degrees to
the left or right of the center line from the front. Be sure to point the remote control unit to the front panel.
After plugging the power cord of this unit, press the POWER ( ) key of the remote control unit to turn
the system ON. When the system is turned ON, press the key of the function to be operated.
Press the POWER (
) key again for OFF.
The unit enters standby mode in which only the “STANDBY/TIMER” indicator is lit.
1.The provided batteries are intended for use in operation checking, and their service life may be short.
2.When the remote controllable distance becomes short, replace both of the batteries with new ones.
3.If direct sunlight or the light of a high- frequency fluorescent lamp (inverter type, etc.) is incident to the remote
sensor, malfunction may occur. In such a case, change the installation position to avoid malfunction.
Notes
Notes
Numeric keys $
TAPE EQ. key ∞
FM/AM key §
CD/MD/TAPE/TUNER operation keys
TIME DISPLAY key $
DISPLAY/CHARAC. key ¡fl
RANDOM key &
TONE key !
SOUND key !
POWER ( ) key 9u
QUICK MOVE key °
TITLE SEARCH key )
TITLE INPUT key fi
TRACK EDIT key ª
CLEAR/DELETE key %
PGM key %
SET key fifl
ENTER key ¶
TAPE O.T.E. key ¤
MD O.T.E. key ¤
SLEEP key u
TIMER key u
VOLUME keys 0!

Kenwood MDX-F1 Specifications

Amplifier Section

rated output power during STEREO operation	4 W + 4 W
speaker unit	80 mm, cone type

Tuner Section

FM tuning frequency range	87.5 MHz ~ 108 MHz
MW (AM) tuning frequency range	531 kHz ~ 1, 602 kHz

General Specifications

power consumption	38 W
standby power consumption	0.3 W
dimensions (W x H x D)	464 mm x 182 mm x 243 mm
weight (net)	5.4 kg
