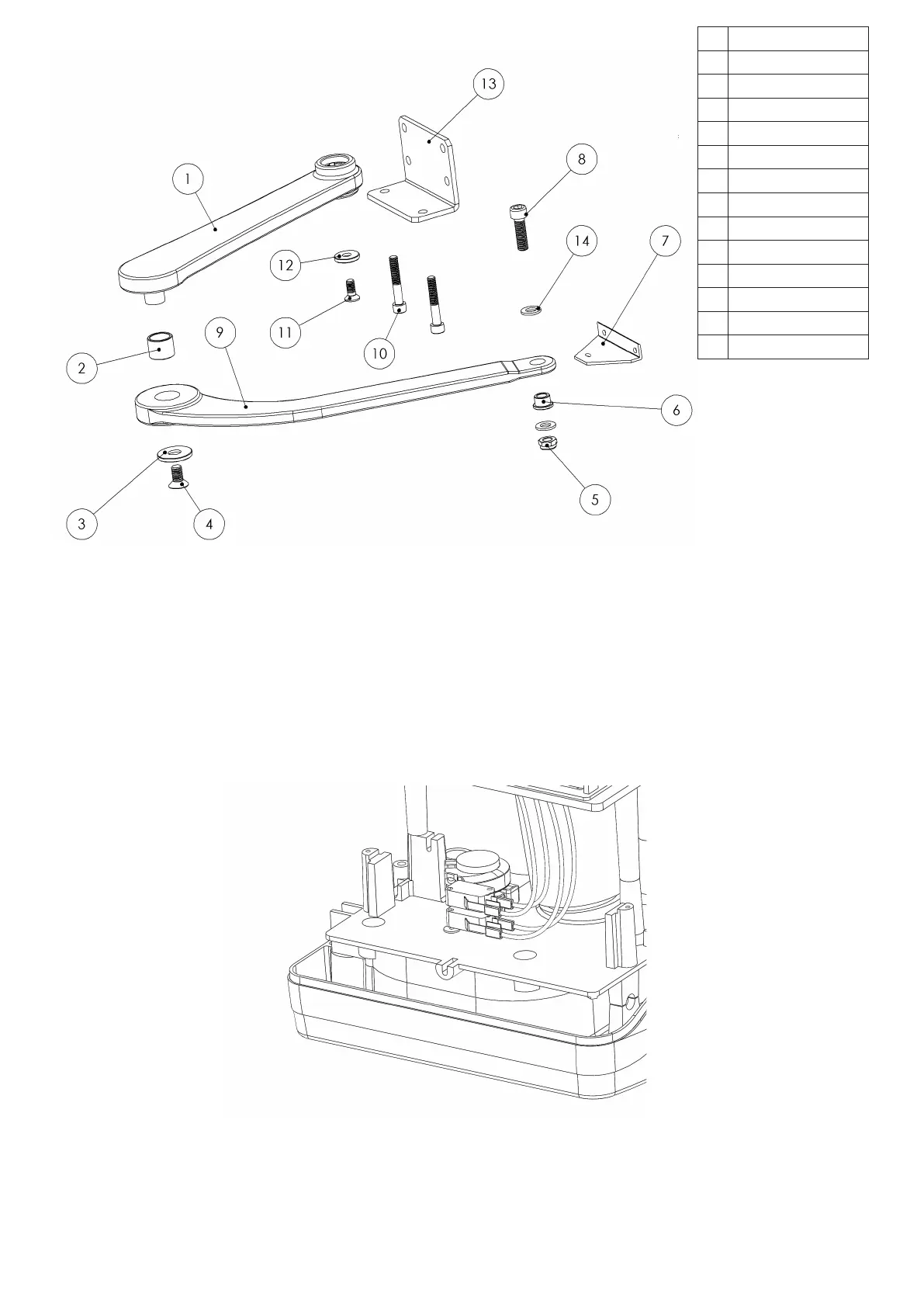

APPLICATION OF THE ARTICULATED ARM
ADJUSTMENT OF STOP MICROSWITCH
Adjustment of stop microswitch during opening: release the gearmotor and allow the door to reach
the opening position desired. Turn the lower cam clockwise until the microswitch is inserted and
lock it with the central screw.
1 500BRMOT
2 450BR20X25H20
3 410RPS35X4FIS
4 390V10X20TPS
5 400DAM10B
6 700BOCD24X12
7 520SANPS2
8 390V10X35TCE
9 500BRCANC
10 390V8X50TCE
11 390V8X20TPS
12 410RPS25X4FIS
13 520STARMUR20
14 410RD10
