ELECTRICAL CONNECTION
900CT-824S
Control unit for two motors, 24 Vdc with encoder and switching power supply, tachym-
etric and amperometric electronic clutch, set up for radio card and integrated battery
charger module, supplied with plastic box
TECHNICAL DATA 900CT-824S
POWER SUPPLY 95-255 Vac 50/60 Hz
ACCESSORY POWER SUPPLY OUTPUT 24 Vdc 400 mA
WORKING TIME 0-120 sec
PAUSE TIME 0-120 sec
OPERATING TEMPERATURE -20°C/+70°C
CONNECTIONS
DESCRIPTION
CN1 Power supply 95-255 Vac
CN2 Supply engines and accessory
CN3 Connection safeties
CN4 Connection exit ( Controls and safeties )
CN5 Connection antenna and second radio channel
CN6 Connection batteries and accessory supplyes 24Vdc
CN7 Connection encoder

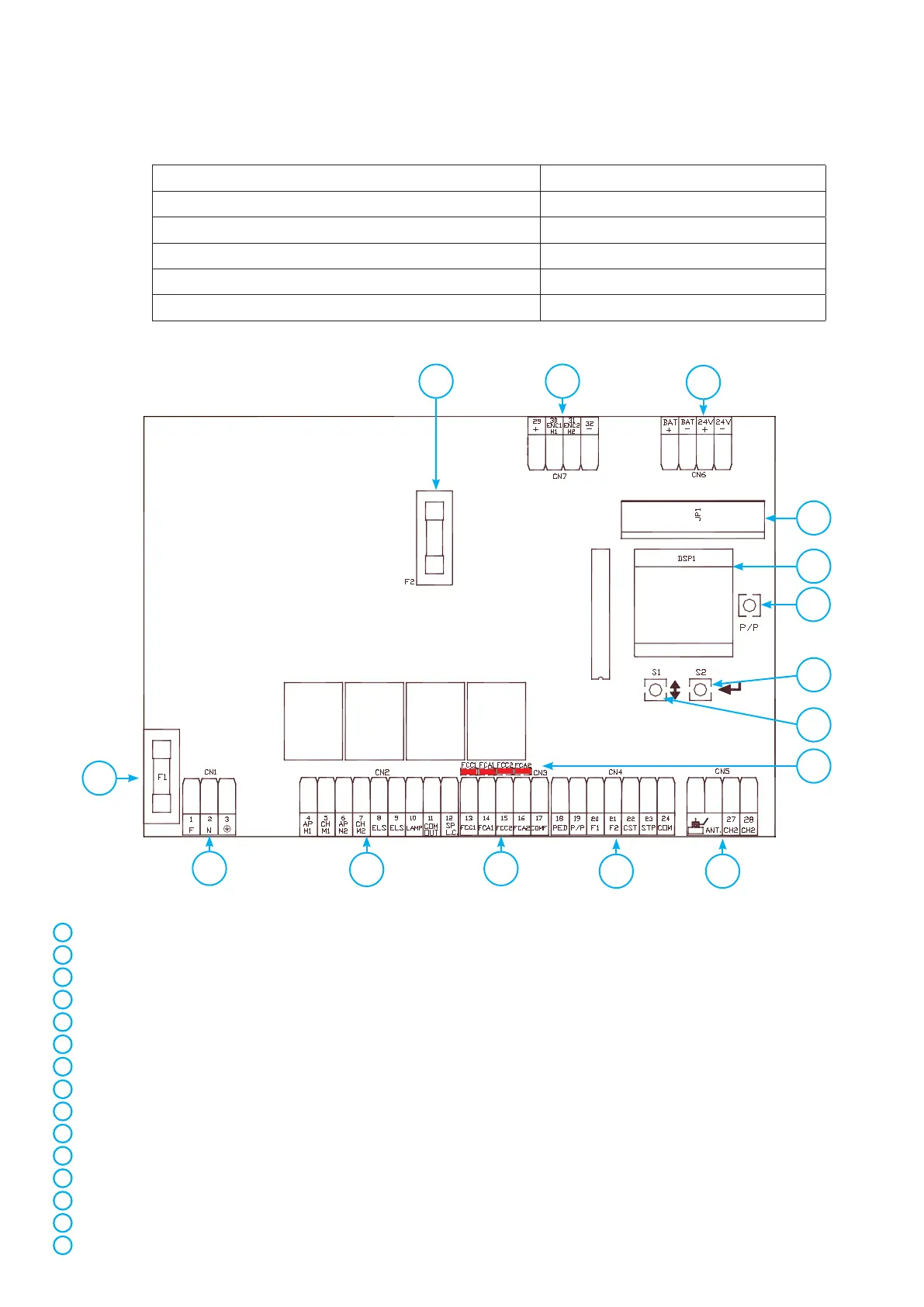

JP1 Connector for radio receiver
DSP1 Display for signalling functions and safety inputs
S1 Button for scrolling programming functions ( see table )
S2 Button for selecting programming functions
P/P Step/step button
F1 Line protection 230Vac 1,6A
F2 Motors line protection 8A
Signaling led of safeties Led on = contact closed
14
13
12
11
10
9
8
7
6
5
4
3
2
1
15
6
14
13
10
3
11
12
7
8
9
2
1
4 5
15
